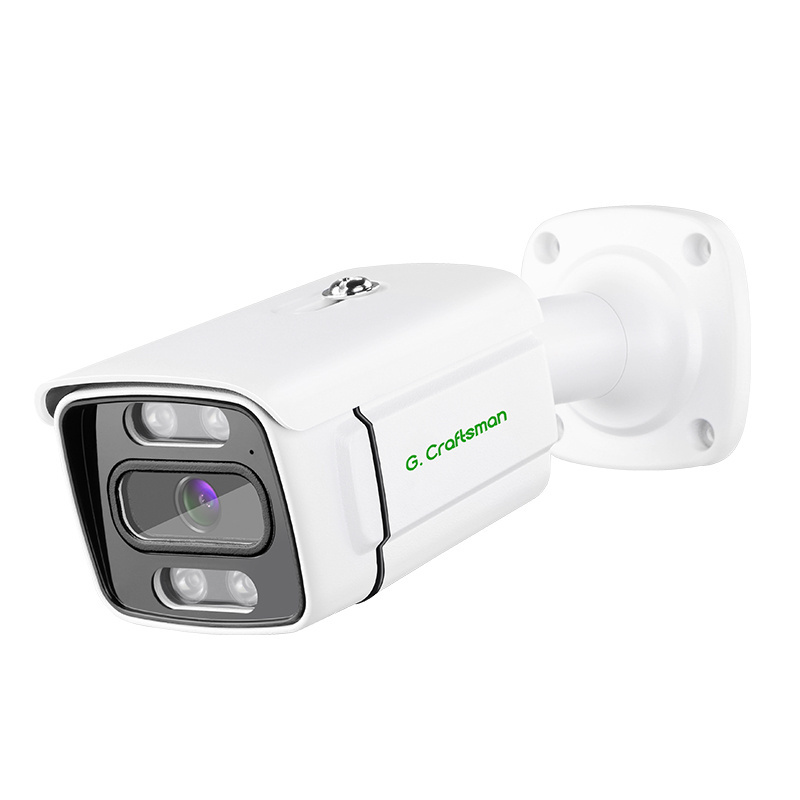

Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
G.Craftsman
-
Model Number:
-
GA-BFI-M6G
-
Warranty:
-
2 Year
-
Video Compression Format:
-
H.265+
-
Material:
-
Metal Housing
-
Waterproof:
-
IP67
-
Resolution:
-
3072*2048
-
WDR:
-
Digital WDR
-
Lens:
-
3.6mm 2.8mm 6mm
-
Audio:
-
Built-in Microphone
-
Night vision:
-
IR Distance 30M
-
Speaker:
-
Optional
-
Power Supply:
-
POE/DC12V
Quick Details
-
Special Features:
-
NIGHT VISION, Motion Detection, Waterproof / Weatherproof, One-way Audio, Humanoid Detection, Vehicle Detection
-
Function:
-
Built-in Mic, NIGHT VISION, Waterproof / Weatherproof, Wide Angle, One-way Audio
-
Customized support:
-
Online technical support, Customized logo, Software reengineering, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
G.Craftsman
-
Model Number:
-
GA-BFI-M6G
-
Warranty:
-
2 Year
-
Video Compression Format:
-
H.265+
-
Material:
-
Metal Housing
-
Waterproof:
-
IP67
-
Resolution:
-
3072*2048
-
WDR:
-
Digital WDR
-
Lens:
-
3.6mm 2.8mm 6mm
-
Audio:
-
Built-in Microphone
-
Night vision:
-
IR Distance 30M
-
Speaker:
-
Optional
-
Power Supply:
-
POE/DC12V
Product Description
AI Smart Analytics
G.Craftsman AI Camera can intelligently filter objects to focus on human and vehicle detection, which greatly enhances the monitoring efficiency and benefits the large population related industries such as public security, access control and business management.
Smart Motion Detection
The Smart Motion Detection function enables the user to monitor specified area clearly in a timely manner. When there is motion detected in a target area, G.Craftsman Camera will give an alerts by email /APP Push for the objects automatically.
Starlight Ultra Low-light
G.Craftsman adopts HD CMOS Starvis Sensor, which is able to deliver high detailed color images even in the low light environments reaching 0.001Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.
120dB Super WDR
Sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions.
30FPS Real-time Frame Rate
G.Craftsman Network Camera offers high frame rate including 1080P@60fps, 5MP@30fps(6MP@25fps), which enables the camera to easily catch images with no latency despite the high-speed movement.
RTMP
G.Craftsman camera supports RTMP streaming live to enrich user experience. The streaming media services such as Twitch, YouTube,Facebook Live and the live platforms such as Dacast, Ant Media and Wowza can receive RTMP streaming.
Leading-edge H.265+ Compression
Smart H.265, The advanced video codec, can save more than 50% bandwidth compared with H.264.
F1.6 Large Apertures
G.Craftsman Camera is equipped with large apertures (F1.6) that allow 1.7 times more light to pass through than normal cameras, as the larger aperture could let more light passes through to the sensor, which tremendously improving image exposure.
Flexible Lens Selection
For Fixed-focus lens, G.Craftsman camera supports Flexible Lens selection among of 2.8mm(H:106.9°), 3.6mm(H:87.5°) and 6mm(H:65.5°) to meet various application scenarios.
IP67 Waterproof
Supporting IP67-rated weather-proof, which are the leading level of the industry, the G.Craftsman Network Camera is well protected against rainy and foggy weather to ensure the performance.
Better in Details
Unique Structure Design
User friendly design of SD card slot and Microphone offer maximum enjoyment of usability and extensibility. The 3-axis adjustable bracket perfectly meets tidy and flexible installation needs. Cable with shielding layer and twined lines effectively shields interference and transmit stable signals.
Integrated Junction Box (Optional)
The well-designed Integrated Junction Box ensures efficient and simple installation. It enlarges the space to make cable
connection neat and as easy as a piece of cake. With the help of the rubber plugs and rubber ring which guarantee IP67-rated weather-proof capability, the Integrated Junction Box is able to offer stable operation in any tough conditions.
connection neat and as easy as a piece of cake. With the help of the rubber plugs and rubber ring which guarantee IP67-rated weather-proof capability, the Integrated Junction Box is able to offer stable operation in any tough conditions.
Packing & Delivery
Quality camera and all of the accessories are well-packed with protective mat in the camera box. G.Craftsman uses h
ard & thick cartons with cornor pads to protect the cameras, especially the
vibration test before shipment can ensure the goods arrive there in good condition.
Product Parameters
|
Camera
|
|
|
|
lmage Sensor
|
6 Million Pixel,HD CMOS Sensor
|
|
|
Min. lllumination
|
Color: 0.005Lux@F1.6; B/W: 0Lux with LED on
|
|
|
Lens
|
3.6mm Standard; 2.8mm/6mm Optional
|
|
|
Electronic Shutter
|
AUTO, 1/25s ~ 1/100000s
|
|
|
LED Type
|
Infared
|
|
|
LED Distance
|
Up to 30m
|
|
|
Day/Night
|
Day/Night/Auto/Customize/Schedule
|
|
|
|
|
|
|
Image Enhancement
|
BLC, HLC, 2D/3D DNR
|
|
|
WDR
|
120dB Super WDR
|
|
|
Image Settings
|
Rotate, Mirror, Privacy Mask, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance adjustable by client software or web browser
|
|
|
Defog
|
Yes
|
|
|
Video
|
|
|
|
Max.lmage Resolution
|
6 Million Pixel
|
|
|
Main Stream
|
25FPS (3072*2048), 30FPS 2560×1440,2304×1296), 60 FPS (1920×1080,1280×720)
|
|
|
Sub Stream
|
30FPS (720×480,D1,VGA,640×360)
|
|
|
Video Compression
|
H.265+/H.265/H.264 video encode，Support Bitrate 0.1M~8Mpbs;Support Frame rate 1~30 Fps/s；
|
|
|
Video Bit Rate
|
512Kbps - 6Mbps, VBR/CBR
|
|
|
Audio
|
|
|
|
Audio Standard
|
G.711-u/G.711-a
|
|
|
Built-in Mic
|
Yes
|
|
|
Built-in Speaker
|
Optional
|
|
|
TF Card Slot
|
N/A
|
|
|
Interface
|
|
|
|
POE Port
|
RJ45 100mbps Network Port, IEEE802.3af PoE
|
|
|
Power Connector
|
DC12V (Spare)
|
|
|
Network
|
|
|
|
Network Storage
|
NFS /NAS /FTP(Photo)
|
|
|
Protocol
|
Supports network protocols such as HTTP/RTSP/DHCP/NTP/ONVIF/P2P/RTMP and multiple NVR docking protocols
|
|
|
P2P Cloud Service
|
Yes
|
|
|
System
|
|
|
|
Local Storage
|
MicroSD Card Slot Not Available
|
|
|
Motion Detection
|
Yes
|
|
|
Event Trigger Event Action
|
FTP Upload(Only Photo), SMTP Upload, SD Card Record,Alarm Server Center Upload
|
|
|
Intelligent Analysis
|
Humanoid Detection, Vehicle Detection
|
|
|
System Compatibility
|
Onvif (Profile S)
|
|
|
Web Client Language
|
English, Russian, German, Italian,Turkish, Polish, Korean,Japanese,Slovenian,
Traditional Chinese, Simplified Chinese etc.
|
|
|
General
|
|
|
|
Protection Level
|
Full Metal, IP67
|
|
|
Working Temperature
|
-40℃~60℃ (-40 °F to 140 °F)
|
|
|
Humidity Power Supply
|
0~95%(Non-condensing)
|
|
