Factory Base 1 :Locate in South of China Market
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Uetersen
-
Model Number:
-
UT--FL2
-
Name:
-
Glass wool
-
Density:
-
10~96Kg/m3 or customized
-
Color:
-
yellow,black,pink,white...
-
Function:
-
Thermal Insulation and sound insulation
-
Length:
-
>6 meter
-
Thermal Conduction:
-
0.032~0.05
-
OEM / ODM:
-
Available
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Office Building
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Uetersen
-
Model Number:
-
UT--FL2
-
Name:
-
Glass wool
-
Density:
-
10~96Kg/m3 or customized
-
Color:
-
yellow,black,pink,white...
-
Function:
-
Thermal Insulation and sound insulation
-
Length:
-
>6 meter
-
Thermal Conduction:
-
0.032~0.05
-
OEM / ODM:
-
Available

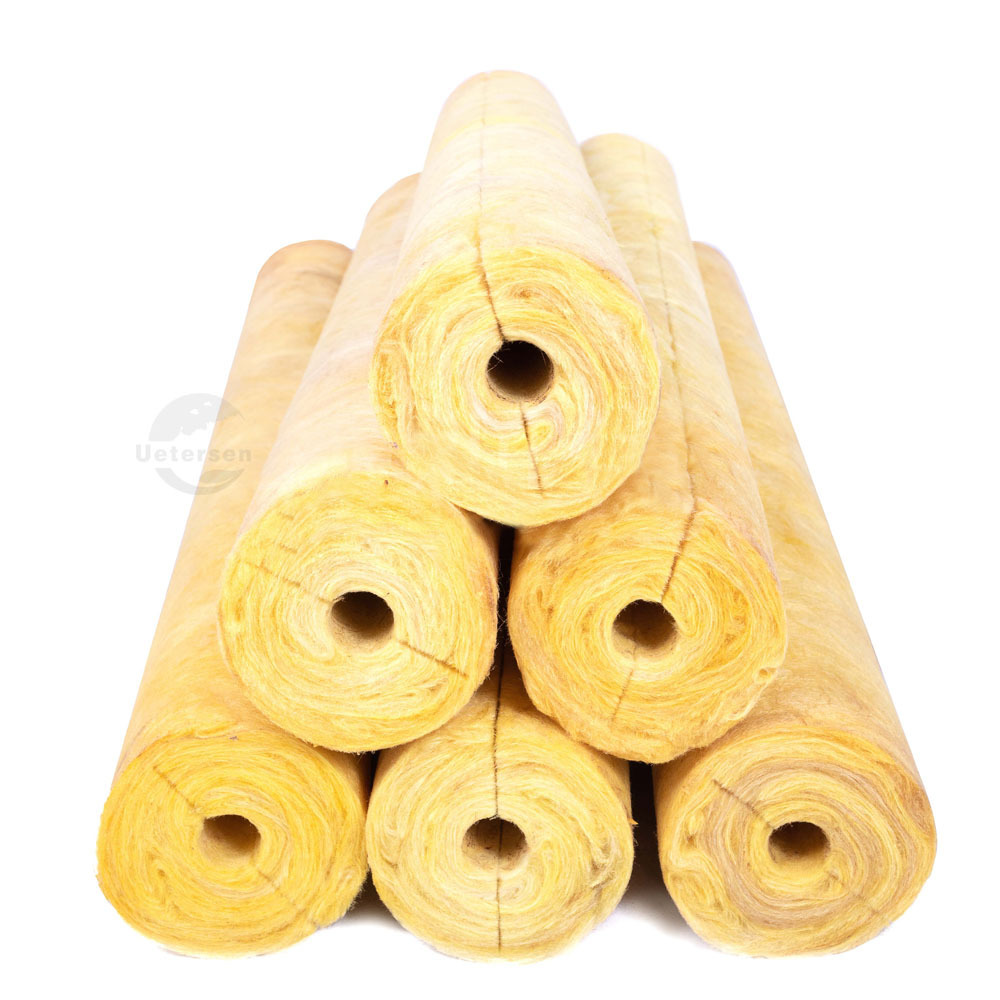

thermocol sheets Glasswool Pipe Insulation for High Temperature Industrial Tube building use Waterproof and anti-moisture
Product Description
Youke glass wool uses a new formaldehyde-free thermo setting binder to produce different types formaldehyde-free environmentally friendly glass wool and other kinds of glass wools.
|
No.
|
Item
|
Unit
|
National Standard
|
Company Product
|
Remark
|
|
1
|
Density
|
kg/m3
|
|
10-48
|
GB483.3-85
|
|
2
|
Avearage Fiber diameter
|
μm
|
≤8.0
|
5.5
|
GB5480.4-85
|
|
3
|
Hygroscopicity
|
%
|
≥98
|
98.2
|
GB10299-88
|
|
4
|
Thermal Conductivity
|
w/m.k
|
≤0.042
|
0.032
|
GB10294-88
|
|
5
|
Noncombustibility
|
0
|
Noncombustible
|
Noncombustible (A)
|
GB5464-85
|
|
6
|
Sound Absorption Coefficient
|
0
|
0
|
1.03 product reverberation method 24kg/m3 2000HZ
|
GBJ47-83
|
|
7
|
Highest usage Temperature
|
°C
|
≤480
|
480
|
GB11835-89
|
Products Show
Our laboratory
Material inspection
Testing difference instruction of material
Water-proof inspection
Up than 98% of water proof level,Pass difference lots of certification of fire-resistance standard.
Fire-resistance inspection
Tested at 400 degrees. Pass difference lots of certification of fire-resistance standard.
Our Company
Production lines
Production sites
Work Site
Cutting site
Warehouse 1
Our Warehouse
Warehouse 2
Our warehouse
Factory base 2
Locate in South-west of China Market
Factory base 3
Locate in East of China Market
Own production sites
Glass fiber material
Glass slag, soda and other materials are evenly stirred into the kiln.
Melting glass fiber
Material at about1400 degrees according to the formula, then turned into liquid.
Glass fiber silk after Centrifugal
Liquid cooled to convey to the centrifuge. Resin glue and a certain amount of water are added at the same time of being thrown into silk.
Glass fiber silk in transit
Glass fiber silk convey to the hot air pressing room.
Automatic air pressing site
Then formed by hot air pressing,heat curing.
Glass wool in automatic transit and edge cutted
Width cutting,cutting edges and corners are reused through the automatic recovery system.
Glass wool plate in automatic cutting site
Length size of Glass wool plate be cutted when throughing cutting gate at a certain distance.
Glass woo l strip in automatic c utti ng
Glass wool plates be cutted to be strip
Glass wool strip in automatic transit and coners departs to difference packing lines
Before packing , glass wool strips be departs to difference packing line for packing.
Glass wool in automatic packing
Glass wool strip be packing automatic ,packing by PP or PE bag.
Packing Details : Vacuum Packing with PE or PP bag , 10-50pcs/carton,or customized.
Shipping Details : 6 days after order be confirmed.
Loading
|
Glasswool Blanket Specification(
Loadage advised
)
|
|
|
|
|
||||
|
Length
|
Width
|
Thickness
|
Density
|
Loadage
|
||||
|
mm
|
mm
|
mm
|
Kg/m3
|
Roll/HQ
|
||||
|
10000
|
1200
|
180
|
16
|
273
|
||||
|
10000
|
1200
|
25
|
20
|
1260
|
||||
|
10000
|
1200
|
25
|
24
|
1050
|
||||
|
10000
|
1200
|
25
|
32
|
787
|
||||
|
10000
|
1200
|
25
|
40
|
630
|
||||
|
10000
|
1200
|
25
|
48
|
525
|
||||
|
10000
|
1200
|
30
|
16
|
1312
|
||||
|
10000
|
1200
|
50
|
12
|
1050
|
||||
|
10000
|
1200
|
50
|
16
|
787
|
||||
|
10000
|
1200
|
50
|
20
|
630
|
||||
|
10000
|
1200
|
50
|
24
|
525
|
||||
|
10000
|
1200
|
50
|
32
|
410
|
||||
|
10000
|
1200
|
50
|
40
|
298
|
||||
|
10000
|
1200
|
50
|
48
|
253
|
||||
FAQ
Q:How to dealing with you for payment safety.
A: We are provide Alibaba Online Trade Assurance to make sure your ordering smoothly , payment safety
Q: Are you trading company or manufacturer ?
A: We are factory.and with export dpt.
Q: How long is your delivery time?
A: Usually with 6 days to ship the goods out. and delivery time will according the address and time to choice the best delivery time for you.If by huge quantity,it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
