Quick Details
-
Brand Name:
-
XYX
-
Product Name:
-
active rfid reader long range
-
Material:
-
CNC aluminum + nylon(bayer)
-
operating system:
-
Android 6.0
-
CUP:
-
Quad-core cortex-A17/1.8Ghz
-
RFID module:
-
based on Impinj indy R2000
-
RFID UHF antenna:
-
3dbi circularly polarized antenna
-
Read range:
-
6-7m (test tag: Impinj E41b chip )
-
RFID working frequency:
-
860-960mhz
-
Battery:
-
2 pcs 6000mAH battery
-
Touch Screen:
-
1.1mm thickness tempered glass/10-dot touch/can be operated with g
Quick Details
-
Frequency:
-
860-960mhz
-
Protocol:
-
ISO 18000-6C
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
XYX
-
Product Name:
-
active rfid reader long range
-
Material:
-
CNC aluminum + nylon(bayer)
-
operating system:
-
Android 6.0
-
CUP:
-
Quad-core cortex-A17/1.8Ghz
-
RFID module:
-
based on Impinj indy R2000
-
RFID UHF antenna:
-
3dbi circularly polarized antenna
-
Read range:
-
6-7m (test tag: Impinj E41b chip )
-
RFID working frequency:
-
860-960mhz
-
Battery:
-
2 pcs 6000mAH battery
-
Touch Screen:
-
1.1mm thickness tempered glass/10-dot touch/can be operated with g

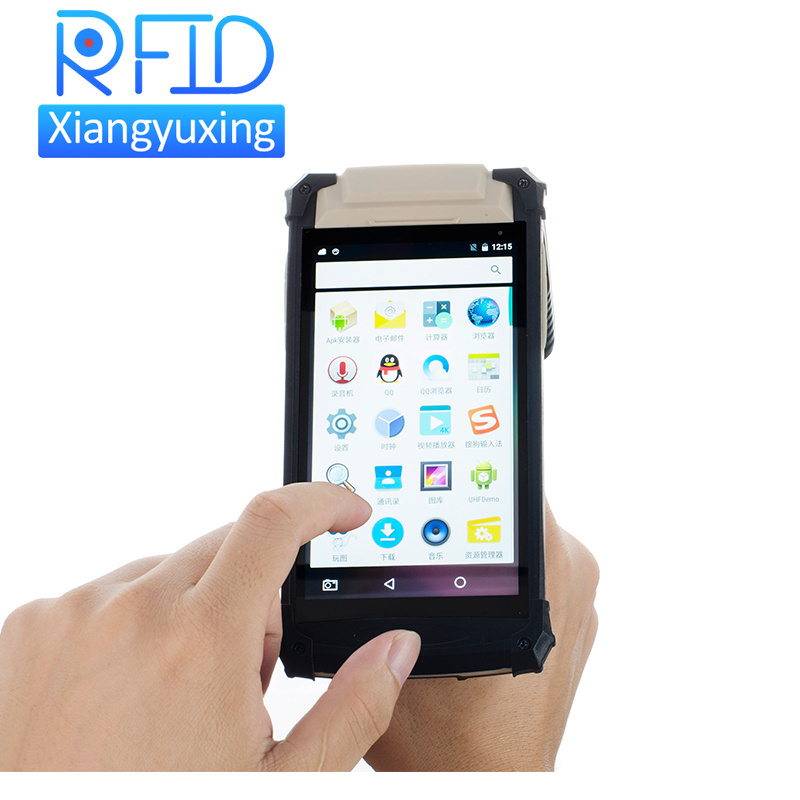

3 Meters Long Range Active RFID Card Reader for tag reader writer
XYX-601 Support Android operating system, optional ultra-high frequency RFID function. According to ergonomic design, external antenna, the appearance of small and exquisite, high degree of protection, simple operation, easy to carry, high flexibility, suitable for working in a variety of environmental conditions. Mainly used in logistics, asset management, warehousing management, library management, production management, ticket management and other fields.
Features:
1).XYX-601 is a handheld UHF RFID Reader datal colectionn terminal for retail industry.
2).Unique pistol grip design makes it comfortable and suitable to hand held.
3).High-sensitivity antenna and agglomeration identification technology module, it reaches 6~7m long distance reading and writing.
4).Built -in 6000mAh large- capacity battery and handle backup battery, it guarantees continuous working for over 12 hours.
5).4G/Wif/Blue-tooth/GPS, Dual sim card and Dual standby.
6).IP64 Protection and 1.5M Drop Resistance.
Technical Specification:
| Top features |
High performance computing platform
Heavy duty applications such as massive data collection 3D real-time display can be operated smoothly |
| Protocols | ISO18000-6C (EPC GEN2) |
| Operating Frequency | 840-960Mhz |
| Operating Mode | Android 6.0 |
| CPU | Quad-core Cortex-A17/1.8GHz |
| GPU | ARM Mali-T764/High performance 3D engine |
| RAM |
2G LPDDR3
2G LPDDR3 4G LPDDR3 (Optional) |
| ROM | 32G EMMC 5.0 64G EMMC 5.0 |
| Power | 6000mAh rechargeable li-polymer battery |
| RFID output power | 0-33dBm |
| Peak inventory speed | >500 tags/s |
| Antenna | 3dBi circularly polarized antenna |
| Wireless Communications | Wifi IEEE 802.1b/g/n, blue tooth 4.0, 3G/4G |
| optional | Protection Grade IP64 |
