Quick Details
-
Product name:
-
Surface box
-
Type:
-
Round, square, triangle
-
Standard:
-
BS5834
-
Application:
-
Municipal, urban, public service
-
Material:
-
Ductile iron
-
Surface Treatment:
-
Bitumen / Water-base paint
-
Size:
-
Customized Size
-
Coating:
-
Black bitumen, epoxy painting
-
Color:
-
Customized Color
Quick Details
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
SYI
-
Model Number:
-
Surface Box
-
Product name:
-
Surface box
-
Type:
-
Round, square, triangle
-
Standard:
-
BS5834
-
Application:
-
Municipal, urban, public service
-
Material:
-
Ductile iron
-
Surface Treatment:
-
Bitumen / Water-base paint
-
Size:
-
Customized Size
-
Coating:
-
Black bitumen, epoxy painting
-
Color:
-
Customized Color
SYI

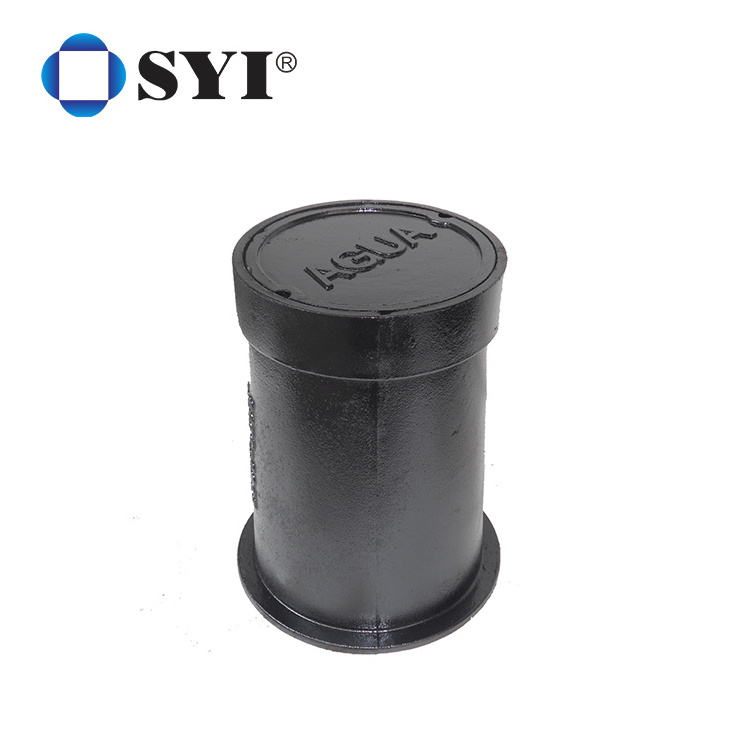

Ductile Iron BS5834 Surface Boxes
Product Description
Ductile iron surface boxes are made from grey iron or ductile iron by hand moulding or machine moulding. Very good quality, smooth and free from sand holes, blow holes, distortion or any other defects.
The normal coating is black bitumen 50 microns thickness, also can make the epoxy coating according to the customer’s demand.
The sizes with the exsit moulds are as following:
The normal coating is black bitumen 50 microns thickness, also can make the epoxy coating according to the customer’s demand.
The sizes with the exsit moulds are as following:
|
Item code
|
Clear opening
|
Cover size
|
Depth of insertion
|
Frame size
|
Height
|
|
SB11
|
225X225
|
227X227
|
50
|
325X325
|
150
|
|
SB12
|
230X380
|
280X430
|
70
|
380X530
|
150
|
|
SB13
|
Φ76
|
Φ90
|
10
|
Φ150
|
150
|
|
SB14
|
Φ100
|
Φ120
|
10
|
Φ188
|
200
|
|
SB15
|
Φ80
|
Φ96
|
10
|
Φ160
|
150
|
|
SB16
|
178X480
|
194X484
|
15
|
210X500
|
210
|
|
SB17
|
Φ140
|
Φ161
|
24
|
Φ270
|
270
|
|
SB18
|
Φ100
|
Φ121
|
22
|
Φ200
|
250
|
|
SB190
|
Φ148
|
Φ172
|
12
|
Φ180
|
42
|
|
SB200
|
Φ135
|
Φ194
|
10
|
Φ204
|
43
|
|
SB32
|
225X225
|
250X250
|
35
|
250X350
|
100
|
|
SB33
|
Φ139
|
Φ159
|
23
|
Φ240
|
210
|
|
SB20
|
Φ286
|
Φ320
|
10
|
Φ508
|
40
|
|
SB31
|
150×150
|
175×180
|
20
|
280×280
|
100
|
|
150 MINI
|
φ120
|
φ139
|
10
|
φ150
|
168
|
|
CE180
|
φ146
|
φ169
|
12
|
φ180
|
180
|
|
CE250
|
φ200
|
φ218
|
12
|
φ234
|
59
|
|
Chadwick
|
φ160
|
φ172
|
14
|
φ180
|
42
|
|
SB38
|
φ150
|
φ186
|
17
|
φ270
|
200
|
|
SB39
|
φ150
|
φ186
|
17
|
250×250
|
100
|
|
SB36
|
φ110
|
φ128
|
12
|
φ220
|
150
|
|
SB40
|
φ110
|
φ107
|
32
|
205×270
|
330
|
|
SB41
|
φ126
|
φ135
|
20
|
φ241
|
300
|
|
SB42
|
120×227
|
132×239
|
6.5
|
200×290
|
140
|
|
SB11X
|
225×225
|
227×227
|
50
|
325×325
|
100
|
The marks including the customer’s logo can be changed.
We have a strong R&D team, can design and make the new mould for you.
We have a strong R&D team, can design and make the new mould for you.
