Quick Details
-
Power:
-
customizable
-
Min. Lifting Height:
-
customizable
-
Table Size:
-
customizable
-
Overall Dimensions:
-
customizable
-
Weight:
-
1800 kg
-
Lift Drive:
-
Hydraulic Lifting Lift Platform
-
Turning Degree:
-
360 degree
-
Loading Capacity:
-
Customization
-
Surface Treatment:
-
Plastic Spraying
-
Color:
-
Red Yellow Blue Customized
-
Quality Assured:
-
Ce ISO9001 Saco FTA Iam Ect
-
Input Voltage:
-
110V 220V 240V 380V, 400V, Customized
-
After-Sales Service:
-
24 Hours Online Service or Engineers Available to
-
Safety Precaution 1:
-
Aluminum Safety Sensor
-
Safety Precaution 2:
-
Anti Explosion Valve
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PLK LIFT
-
Power:
-
customizable
-
Min. Lifting Height:
-
customizable
-
Table Size:
-
customizable
-
Overall Dimensions:
-
customizable
-
Weight:
-
1800 kg
-
Lift Drive:
-
Hydraulic Lifting Lift Platform
-
Turning Degree:
-
360 degree
-
Loading Capacity:
-
Customization
-
Surface Treatment:
-
Plastic Spraying
-
Color:
-
Red Yellow Blue Customized
-
Quality Assured:
-
Ce ISO9001 Saco FTA Iam Ect
-
Input Voltage:
-
110V 220V 240V 380V, 400V, Customized
-
After-Sales Service:
-
24 Hours Online Service or Engineers Available to
-
Safety Precaution 1:
-
Aluminum Safety Sensor
-
Safety Precaution 2:
-
Anti Explosion Valve

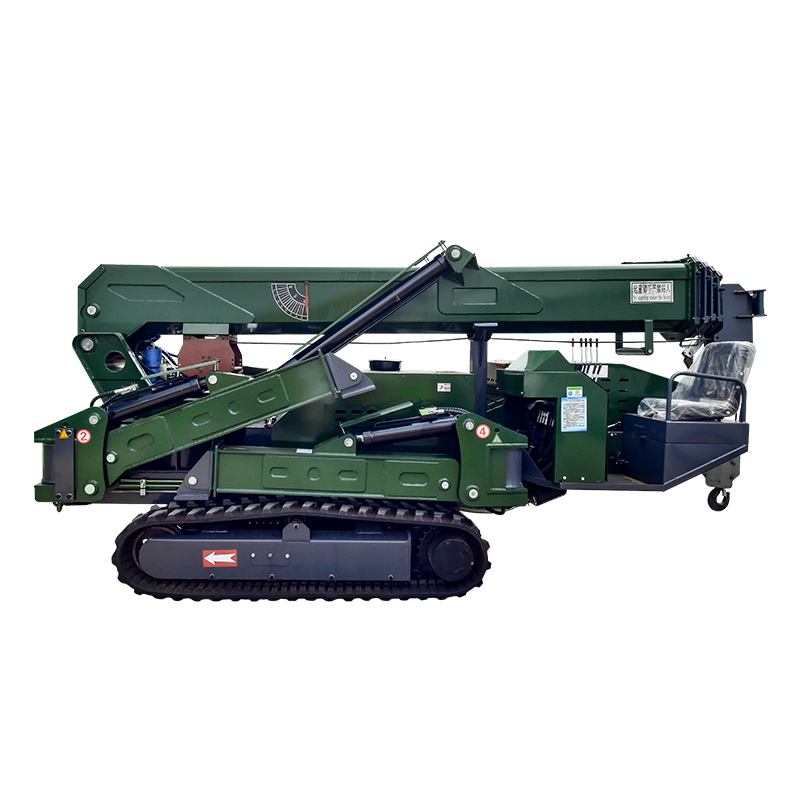

Spider Lifting Crane
| Model Type | CL1.2 | CL2.0 | CL3.0 | CL5.0 | CL8.0 | CL10.0 | CL12.0 | CL14.0 | |
| Lifting Capacity | 1.2 ton | 1.5 ton | 3.0 ton | 5.0 ton | 8.0 ton | 10.0 ton | 12.0 ton | 14.0 ton | |
| Max Lifting Height | 5.8m x 0.8t | 6m x 0.3t | 10m x 0.8t | 16m x 1.5t | 18m x 1.5t | 21m x 0.6t | 24.5m x 0.9t | 14.5m x 2t | |
| Max Working Radius | 5m x 0.3t | 6.8 x 0.8t | 9m x 0.2t | 15mx1t | 16.5m x 0.2t | 20m x 0.2t | 23x0.2t | 23x1.5t | |
| Winch | Hook rising speed | 0-8m/min | 0-10m/min | ||||||
| Wire Rope Specifications | Φ8mm×35m | Φ8mm×35m | Φ8mm×45m | Φ10mm×120m | Φ10mm | Φ11mm×100m | Φ12mm×80m | Φ12mm×80m | |
| Telescopic Device | Boom form | 4 | 5 | ||||||
| Boom length/time | 1.7m-5m/22sec | 1.7m-6m/22sec | 2.8m-8.2m/22sec | 4m-15m | 4.5m-16m | 5m-21m | 5.5m-23m | 5.5m-23m | |
| Heave Device | Boom Angle/Time | 0-75°/13sec | 0-75°/13sec | 0-75°/13sec | 0-75°/13sec | 0-75°/13sec | 0-75°/13sec | 0-75°/13sec | 0-75°/13sec |
| Rotary Device | Rotation angle/speed | 0-360°(continuous)/60sec | |||||||
| Outrigger | Form of outrigger action | Manual unscrewing + hydraulic automatic support (two legs) | |||||||
| Running gear | way of walking | Hydraulic motor drive, two speed | |||||||
| Walking speed | 0-2.5km/h | 0-2.5km/h | 0-5.5km/h | ||||||
| Gradeability | 20°(36%) | ||||||||
| Motor | Voltage | AC 380V | |||||||
| Engine | Power | AC+Gasoline | AC+Diesel | ||||||
| Type/displacement | 9.6 kw | YN27GBZ/2.7L | |||||||
| start method | electric start | ||||||||
| boot performance | -5°C~40°C | ||||||||
| fuel/volume | Gasoline/8L | Diesel//45L | |||||||
| battery capacity (optional) | 12v 45AH | 24v 45AH | |||||||
| Fuel consumption | 274g/kW-h | 230g/kW-h | |||||||
| noise level | Rated speed≤81.5dBA (1m) | ||||||||
| Operating System | Type of operation (boom/outrigger) | Manual | |||||||
| Walking | Manual + remote control (option) | ||||||||
| operating characteristics | Kemai hydraulic system | ||||||||
| Standard configuration | engine power | ||||||||
| Overall size | 2095*600*1393mm | 2400*700*1600 | 3100*800*1650mm | 4500*1360*2100mm | 4950*1560*2235mm | 6000*1560*2200mm | 6000*1850*2600mm | 6500*2000*2400mm | |
| Craftsmanship | Paint assembly process | ||||||||
Options
| General option | Parameters |
| Remote control | |
| Man Basket, basket size: 1.35X0.75X1.1m, load 350KG, cannot be used with the hook, basket weight 150KG | |
| Torque display (overload alarm, red limiter - to prevent the hook from over-rolling, white gravity sensor, arm length, angle) | |
| Torque display + overload alarm stop, + unloading valve | |
| High matching proportional valve (including remote control) | |
| 3m JIB | |
| 3.5m JIB | |
| 4 JIB | |
| 4..5m JIB | |
| Motor voltage: 3Phase 380V, custom voltage will add money | |
| Leg lift sensor | |
| One-button leveling of the outriggers, loaded on the remote control button |
| Model Type | Parameters |
| CL3.0 | 6 boom + 1.7 meters |
|
The second section is single-out (add another oil cylinder inside to let the second section arm go out first, the second section is 345 sections after the second section arm is out, with telescopic, telescopic arm |
|
| Euro V standard Changchai 3-cylinder engine | |
| Yanmar 3T88 engine (without any certificate) | |
| Yanmar 3T88 engine (including EPA certificate) | |
| CL5.0 | 6-section boom + 3m price increase |
| Yunnei National Three Standard Engine | |
| Changchai National III standard engine | |
| Changchai 4 cylinder, Euro 5 standard 4 cylinder engine | |
| Yanmar 4T88 engine (without any certificate) | |
| Yanmar 4T98 engine (including EPA certificate) | |
| CL8.0 | Single price increase for two sessions |
| 6-section boom + 3.5 meters | |
| Yunnei National Three Standard Engine | |
| Changchai National III standard engine | |
| Changchai 4 cylinder, Euro 5 standard 4 cylinder engine | |
| Yanmar 4T88 engine (without any certificate) | |
| Yanmar 4T98 engine (including EPA certificate) | |
| CL10.0 | Single price increase for two sessions |
| Yunnei National Three Standard Engine | |
| Changchai National III standard engine | |
| Euro 5 standard 4 cylinder Changchai engine | |
| Yanmar 4T88 engine (without any certificate) | |
| Yanmar 4T98 engine (including EPA certificate) | |
| CL12.0 | Single price increase for two sessions |
| 6 booms + 4 meters | |
| CL14.0 | Single price increase for two sessions |
| 6 booms + 4 meters |
All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.
