Full Automatic Corrugated Iron Sheet Roofing Tile Making Roll Forming Machine Metal Roofing Sheet Making Machine

Full Automatic Corrugated Iron Sheet Roofing Tile Making Roll Forming Machine Metal Roofing Sheet Making Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $4520

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Rolling thinckness:: Tile Making Machinery

Place of Origin:: Henan, China

Brand Name:: BBT

Voltage:: 380V 50Hz 3Phase

Dimension(L*W*H):: 6000*1600*1300(customize), 6000*1600*1300(customize)

Weight:: 5000 kg

Feeding width:: customizable

Machinery Test Report:: customizable

Marketing Type:: New Product 2023

Name:: Tile Making Machinery

Application:: Double Layer Glazed Tile Roll Forming Machine

Usage:: Cold Roll Forming Machine

Function:: Roofing Tile Making Machine

Style:: Roof Panel Tile Cold Roll Form Making Machine

Keyword:: Panel Manufacturing Machinery

Forming Speed:: 15-20m/min

Decoiler:: Hydraulic automatic decoiler

Quick Details

Type:: Tile Forming Machine

Tile Type:: Colored Steel

Production Capacity:: Other

Rolling thinckness:: Tile Making Machinery

Place of Origin:: Henan, China

Brand Name:: BBT

Voltage:: 380V 50Hz 3Phase

Dimension(L*W*H):: 6000*1600*1300(customize), 6000*1600*1300(customize)

Weight:: 5000 kg

Feeding width:: customizable

Machinery Test Report:: customizable

Marketing Type:: New Product 2023

Name:: Tile Making Machinery

Application:: Double Layer Glazed Tile Roll Forming Machine

Usage:: Cold Roll Forming Machine

Function:: Roofing Tile Making Machine

Style:: Roof Panel Tile Cold Roll Form Making Machine

Keyword:: Panel Manufacturing Machinery

Forming Speed:: 15-20m/min

Decoiler:: Hydraulic automatic decoiler

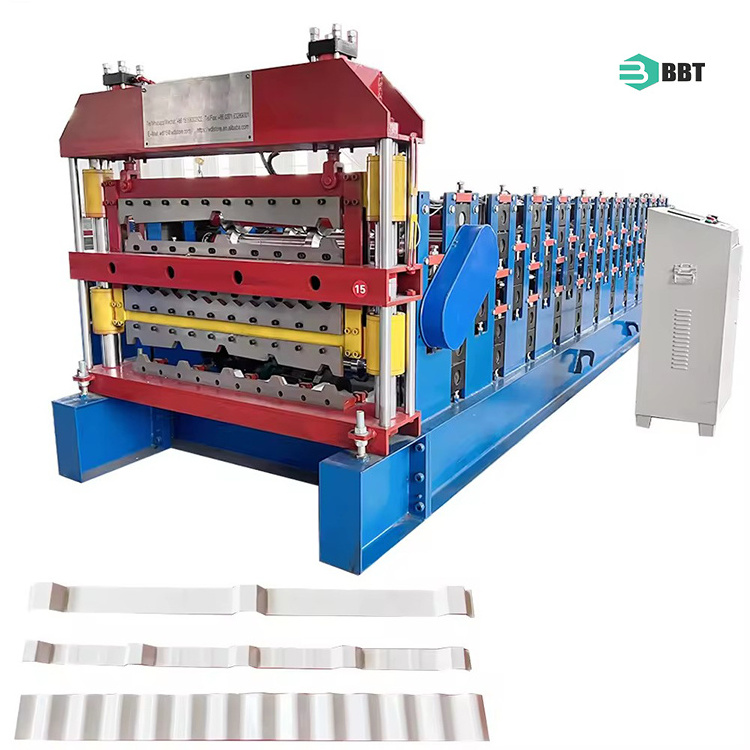

Full Automatic Corrugated Iron Sheet Roofing Tile Making Roll Forming Machine Metal Roofing Sheet Making Machine

Product Overview

Color Steel Metal Roofing Sheet Roll Forming Machines

840 Color Steel Metal Roofing Sheet Roll Forming Machines is a machine produce building material of metal roof, the products are widely used as the roof and wall of factory,warehouse, garage, gymnasium, exhibition center. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

Our Advantages

1.Our machine can use galvanized steel sheet, colored armor plate or aluminum plate as the material plate.

2.Controlling by computer PLC display, operate is easy. Running is steady and reliable, endurable maintenance-free.

3.The three-layer machine can produce three different types of roof panels, reducing the footprint and cost.

4.We can make and design will kinds of roll forming machine according to customer’s request.

Product Paramenters

840 Color Steel Metal Roofing Sheet Roll Forming Machines			X-12-2.5m
1.Formed Material	PPGI,GI,AI	Thickness:0.3-0.8mm Width:1000mmcustomized)
2.Decoiler	Hydraulic automatic decoiler	Manual decoiler(will give you as free)
3.Main body	Diameter of shaft	70mm solid shaft
		Roller station	13 rows(As your requirement)
		Material of rollers	45# steel, hard chrome plated on the surface
		Machine body frame	300 H steel
		Drive	Chain transmission
		Dimension(LWH)	600016001300(customize)
		Weight	5T
4.Cutter	Automatic	cr12mov material, no scratches, no deformation
5.Power	Motor Power	5.5KW
5.Power		Hydraulic system power	4KW
6.Voltage	380V 50Hz 3Phase	As your requirement
7.Control system	Electric Box	Customized(famous brand)
		Language	English(Support multiple languages)
		PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc
8.Forming Speed	15-20m/min	The speed depends on the shape of the tile and the thickness of the material
