Quick Details
-
Power:
-
1.5KW
-
Dimension(L*W*H):
-
1100x1100x1300mm
-
After sales service provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Aluminum corner crimping window fabricating machine
-
Service:
-
Service Mmachinery Overseas
-
Application:
-
Aluminium Window Fabrication
-
Power supply:
-
380V 50 Hz
-
Input Power:
-
1.5kw
-
Air consumption:
-
0.6-0.8MPa
-
After warranty service:
-
Video technical support
-
Crimping accuracy:
-
≤0.15mm
-
Profile crimping height:
-
Max.120mm
Quick Details
-
Voltage:
-
380V 50HZ
-
Weight:
-
300 kg
-
Production Capacity:
-
100%
-
Power:
-
1.5KW
-
Dimension(L*W*H):
-
1100x1100x1300mm
-
After sales service provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Aluminum corner crimping window fabricating machine
-
Service:
-
Service Mmachinery Overseas
-
Application:
-
Aluminium Window Fabrication
-
Power supply:
-
380V 50 Hz
-
Input Power:
-
1.5kw
-
Air consumption:
-
0.6-0.8MPa
-
After warranty service:
-
Video technical support
-
Crimping accuracy:
-
≤0.15mm
-
Profile crimping height:
-
Max.120mm

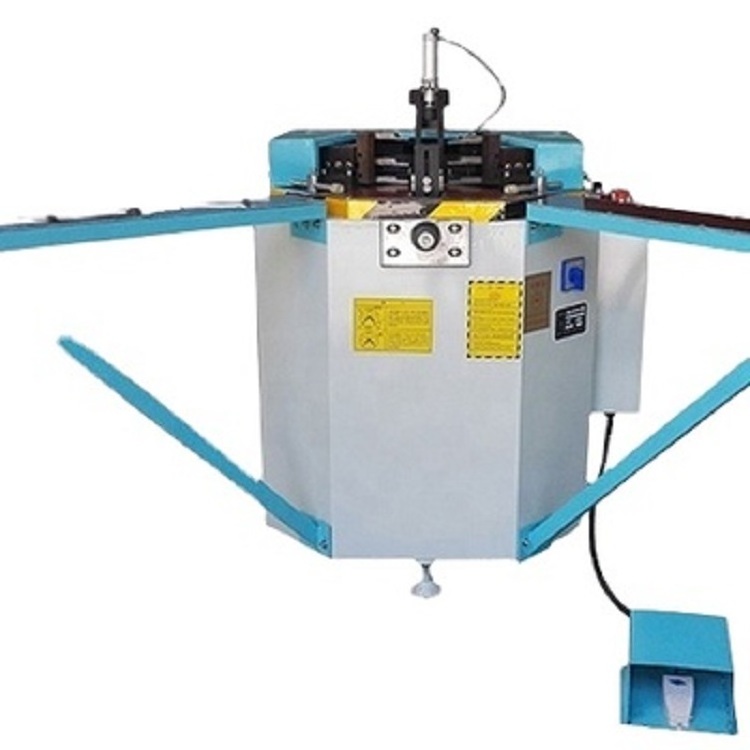

Aluminum Window Corner Crimping Machine
Product Description
The corner combining machine is used for 90°fabricating of aluminum window. Adopt new mechanical linkage device, realize complete synchronous corner combining. Up and down adjustable locating device, suitable for various section and sized profile. Left and right punching heads adopt hardness synchronous feeding device, avoid deformation and make sure firm connection.
Product Parameters
|
Power
|
1.5kw
|
|
Voltage
|
380V/50HZ
|
|
Air pressure
|
0.6-0.8MPa
|
|
Air consumption
|
20L/min
|
|
Profile crimping height
|
Max.120mm
|
|
Profile crimping width
|
Max. 90mm
|
|
Hydraulic pressure
|
15MPa
|
|
Capability of oil box
|
20L
|
|
Dimension
|
1100x1100x1300mm
|
