Quick Details
-
Size:
-
NPS2~NPS24.
-
Material:
-
Carbon Steel,Stainless Steel,Alloy Steel,Duplex Stainless Steel.
-
Operating temperaturetd:
-
-50℃~200℃.
-
Nominal pressure:
-
PN16
-
Filtration rating available:
-
20 micron to 2000 micron & more.
-
Power:
-
Three-phase 4-wire system 380V/50HZ
-
Control power supply:
-
220V/50HZ
Quick Details
-
Weight (KG):
-
70
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
U-ideal
-
Size:
-
NPS2~NPS24.
-
Material:
-
Carbon Steel,Stainless Steel,Alloy Steel,Duplex Stainless Steel.
-
Operating temperaturetd:
-
-50℃~200℃.
-
Nominal pressure:
-
PN16
-
Filtration rating available:
-
20 micron to 2000 micron & more.
-
Power:
-
Three-phase 4-wire system 380V/50HZ
-
Control power supply:
-
220V/50HZ
Products Description

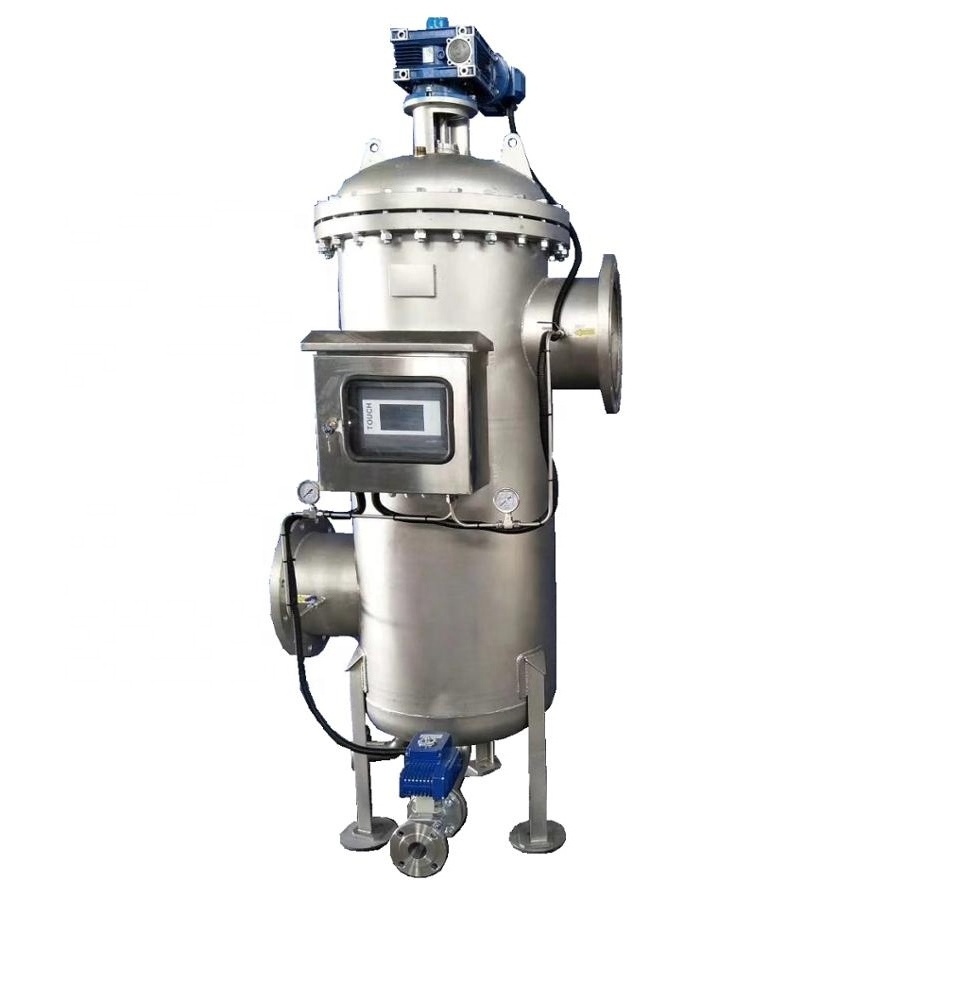

Multi-cartridge Automatic Back Flushing Filter
U-ideal automatic filter is a kind of precision equipment which intercepts the impurities in the water, purify water, suspended solids, particulate matter, reduce the turbidity, purify water quality, reduce system dirt, bacteria and algae, corrosion, etc, by the mesh, to purify the water quality and protect the system precision equipment of other equipment to work normally.
Working principle:
Water from the inlet to fully automatic filter body, as a result of intelligent design(PLC, PAC), the system can automatically identify the sediment, to drain valve signal automatic drainage.
Automatic filter overcome traditional products' shortcomings such as small volume, vulnerable to contamination jams, filter part of the need to remove the cleaning and unable to monitor the state of the filter and so on. It's also have advantages of automatic filtering the raw water and automatic cleaning filter core. What's more, water supply will not stopped when automatic filter in the process of self-cleaning. So the automatic degree is very high.
The core part of the control machine adopts programmable logic controller, with compact structure, simple circuit and high reliability. It has two control modes, automatic and manual. The automatic control mode is divided into two modes of differential
Automatic strainers are normally more expensive than the manually cleaned units but their extra cost can often be justified by one or more of the following reasons:
1. The frequency of cleaning of a manual unit and the cost of labor for doing this.
2. If there is any danger that the strainer or the equipment that it is protecting may be damaged by the strainer not being cleaned when required.
3. The strainer is necessarily located in a place where it is not readily accessible for cleaning.
4. Plugging of the strainer is unpredictable due to a variable loading rate such that manual cleaning cannot be properly scheduled.
5. Insufficient available personnel to perform the manual cleaning.
Specification
|
Size
|
NPS2～NPS24.
|
|
Material
|
Carbon Steel,Stainless Steel,Alloy Steel,Duplex Stainless Steel.
|
|
Operating temperaturetd
|
-50℃～200℃.
|
|
Nominal pressure
|
PN16
|
|
Filtration rating available
|
20 micron to 2000 micron & more.
|
|
Flow rate
|
2800 m3/hr & More.
|
|
|
NPT / BSP Threaded
ANSI B16.5 Flanged
DIN Standard
Tri Clover Adaptors
SMS /Dairy End Connection
|
|
Power
|
Three-phase 4-wire system 380V/50HZ
|
|
Control power supply
|
220V/50HZ
|
|
Self-cleaning time
|
10-60s
|
|
Self-cleaning control mode
|
pressure gage control / time control / manual operation
|
