- Product Details
- {{item.text}}
Quick Details
-
Power:
-
3600W, 3600W
-
Dimension(L*W*H):
-
600x680x1400MM
-
Weight (KG):
-
55 kg
-
Function:
-
Dust absorption and water sucking
-
Airflow:
-
450M3/H
-
Noise:
-
68DB
-
Vacuum suction:
-
280Mb
-
Power line length:
-
8M
-
Weight:
-
55KG
-
Application:
-
All industries
-
Motor:
-
Ametek Motor
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YYVAC
-
Voltage:
-
220V/50HZ, 220V/50HZ
-
Power:
-
3600W, 3600W
-
Dimension(L*W*H):
-
600x680x1400MM
-
Weight (KG):
-
55 kg
-
Function:
-
Dust absorption and water sucking
-
Airflow:
-
450M3/H
-
Noise:
-
68DB
-
Vacuum suction:
-
280Mb
-
Power line length:
-
8M
-
Weight:
-
55KG
-
Application:
-
All industries
-
Motor:
-
Ametek Motor
Products Description
|
Description
|
Unit
|
KS3600
|
|
Current type
|
Ph - V - Hz
|
1 - 220 - 50/60
|
|
Power
|
kW / HP
|
3.6 / 4.8
|
|
Airflow
|
m³/h (l/s) / CFM
|
450 (125) / 265
|
|
Vacuum
|
kPa / inH2O
|
28 / 112
|
|
Sound pressure level
|
dB(A)
|
71
|
|
Container capacity
|
l / gal
|
100 / 26.4
|
|
Filter area
|
cm2 / ft2
|
25000 / 26.9
|
|
Filter efficiency
|
μm
|
0.3 (with HEPA filter)
|
|
Filter type
|
|
1 star filter as standard; 1 HEPA filter as option
|
|
Filter cleaning system
|
|
Manual shaker
|
|
Inlet diameter
|
mm / in
|
50 (40) / 1.97 (1.57)
|
|
Cable length
|
m / ft
|
8 / 26.2
|
|
Dimensions (L × W × H)
|
mm / in
|
680*600*1400 / 26.8*23.6*55.1
|
|
Weight
|
kg / lb
|
55 / 121
|
Details Images
KS3600 Single-Phase Industrial Vacuum Cleaner
KS3600 single phase industrial vacuum cleaner is characterized by high power, strong suction and large capacity. The metal frame is sturdy and durable and the whole vacuum cleaner is portable and ergonomically designed. The detachable stainless steel dust container with four castors makes it easy to roll out and dump the collected materials. Its standard configuration adopts a large filter-area pocket filter with over 99.97% efficiency at 3 microns. The built-in cyclone structure in the vacuum body helps to protect the filter and keep the suction power lasting with great cleaning efficiency. An additional HEPA filter can be added as option if your application requires to collect very fine dust at 0.3 microns.
- Three AMETEK vacuum bypass motors: independently controlled with strong suction
- Stainless steel construction: easy to keep clean
- Detachable roll-out collection tank with large capacity
- Usable pocket filter (100% polyester fiber): 99.99% efficient at 3 microns
- External filter shaker: keeping operation going longer
- Unique aluminum tangential intake port: more efficiency
- Tool basket: easy storage of accessories
- Optional HEPA filter: for fine dust filtration
- Optional front-coupling floor nozzle: energy saving by pushing to clean

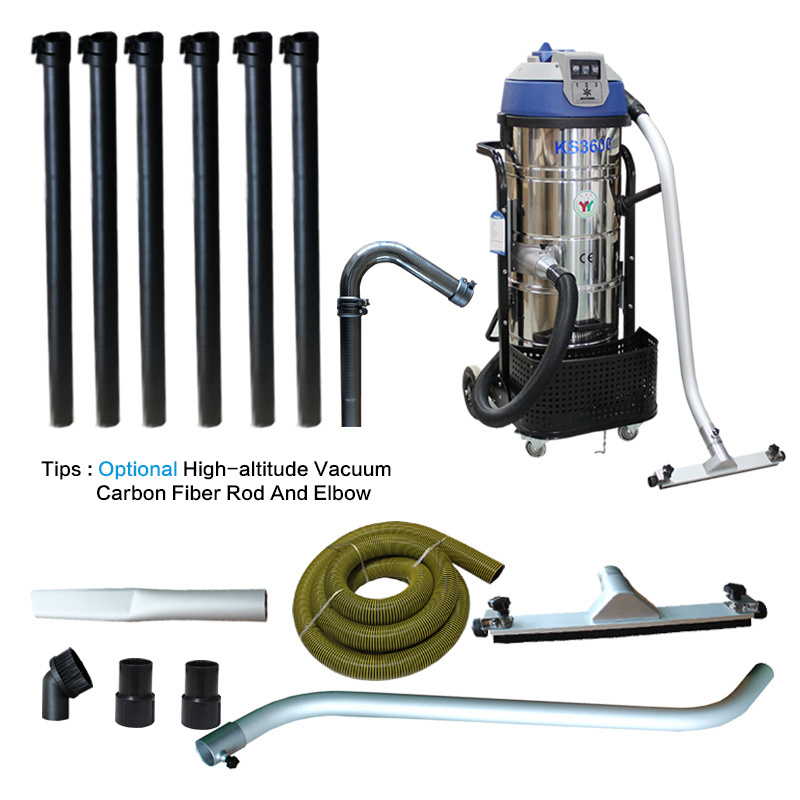

A full assortment of D50 accessories are offered to tackle a wide range of applications.
It is also possible to connect KS3600 to our D40 and D32 accessories for more flexibility and wider usage scope.
