Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3850*1300*1300mm
-
Weight (KG):
-
2000 kg
-
Product name:
-
knife making grinder for plywood veneer peeling machine
-
CNC or Not:
-
CNC
-
condition:
-
all new
-
Knife grinder Dimension(L*W*H):
-
3850*1300*1300mm
-
Weight:
-
2000kgs
-
warranty:
-
one year
-
Table size:
-
3000x180mm
-
Working tool with adjustable angle:
-
±90°
Quick Details
-
Place of Origin:
-
Shandong, China
-
Type:
-
knife grinder machine, Knife grinder
-
Brand Name:
-
Yuequn, Yuequn
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3850*1300*1300mm
-
Weight (KG):
-
2000 kg
-
Product name:
-
knife making grinder for plywood veneer peeling machine
-
CNC or Not:
-
CNC
-
condition:
-
all new
-
Knife grinder Dimension(L*W*H):
-
3850*1300*1300mm
-
Weight:
-
2000kgs
-
warranty:
-
one year
-
Table size:
-
3000x180mm
-
Working tool with adjustable angle:
-
±90°
|

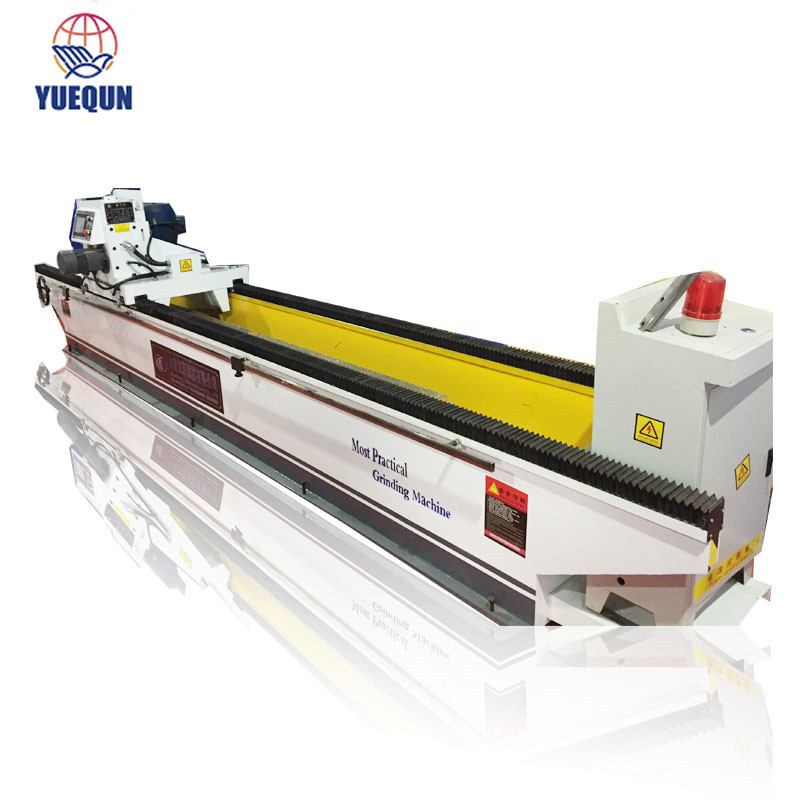

Electromagnetic Automatic Knife Grinder
|
|
|
|
|
||||
|
Model
|
|
YQ-1500
|
YQ-3000
|
YQ-3500
|
||||
|
Max Grinding Length
|
|
1600 mm
|
3200mm
|
3600mm
|
||||
|
Table Size
|
|
1550x180(200)mm
|
3000x180(200)mm
|
3550x180(200)mm
|
||||
|
Total power
|
|
about 6.0kw
|
about 6.0kw
|
about 6.0kw
|
||||
|
Example Specifications ---- YQ1500
|
|
|
|
|
||||
|
Max grinding length
|
|
|
1600mm
|
|
||||
|
Table size
|
|
|
1550x180(200)mm
|
|
||||
|
Grinding wheel size
|
|
|
Φ200*Φ100*Φ32mm
|
|
||||
|
Work voltage
|
|
|
380V / 440V ( can be customized )
|
|
||||
|
Grinding wheel reciprocating speed
|
|
|
17m/min
|
|
||||
|
Adjustable angel of work table
|
|
|
±90°
|
|
||||
|
Driving method of grinding head
|
|
|
Transmission
|
|
||||
|
Overall dimension
|
|
|
3850*1300*1300mm
|
|
||||
|
Total power
|
|
|
6kw
|
|
||||
|
Total weight
|
|
|
1800kg
|
|
||||
Features
1. This machine mainly grind all type of long knives, like peeling machine knife, Granulator knife,cutting paper knife ,Shearing Blades, sliceing knives etc.
2. This machine can work long surface knife. Max. Working length is 1500mm.
3. This machine’s body is a design of gantry body, with the high-quality steel weld,The body has high strength and good rigidity.
4. The worktable use the electro magnetic chuck. And very convenience to clamp knife. The worktable is easy to adjust the angle by worm gear.
5. This machine use the inverter. It can be easy to adjust the horizontal and vertical speed of the grinding head.
6. Job accuracy of machine is 0.01mm.
2. This machine can work long surface knife. Max. Working length is 1500mm.
3. This machine’s body is a design of gantry body, with the high-quality steel weld,The body has high strength and good rigidity.
4. The worktable use the electro magnetic chuck. And very convenience to clamp knife. The worktable is easy to adjust the angle by worm gear.
5. This machine use the inverter. It can be easy to adjust the horizontal and vertical speed of the grinding head.
6. Job accuracy of machine is 0.01mm.
