Quick Details
-

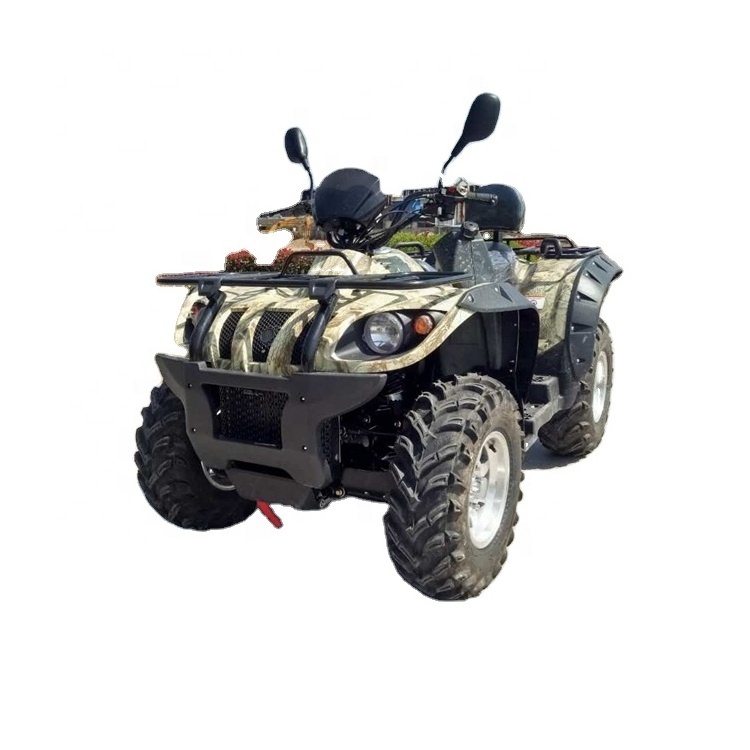

Product Name:
-
ATV
-
Type:
-
500cc 4x4
-
Engine:
-
500cc,4stroke single cylinder water cooled,manual choke
-
Max.Power:
-
22kw(30.4HP)/5800rpm Approx.
-
Max.Torque:
-
40N.m/4000rpm Approx.
-
Transmission:
-
CVT Belt Fully Automatic,2WD/4WD with Locking,Rear Differential
-
Reverse:
-
Hand Reverse
-
Gas Tank Capacity:
-
10.5L(2.8Gal)
-
Weight (kg):
-
340Kg/360Kg
-
Seat Height:
-
980mm
Quick Details
-
Displacement:
-
500CC
-
Brand Name:
-
Haohao
-
Place of Origin:
-
zhejiang
-
Product Name:
-
ATV
-
Type:
-
500cc 4x4
-
Engine:
-
500cc,4stroke single cylinder water cooled,manual choke
-
Max.Power:
-
22kw(30.4HP)/5800rpm Approx.
-
Max.Torque:
-
40N.m/4000rpm Approx.
-
Transmission:
-
CVT Belt Fully Automatic,2WD/4WD with Locking,Rear Differential
-
Reverse:
-
Hand Reverse
-
Gas Tank Capacity:
-
10.5L(2.8Gal)
-
Weight (kg):
-
340Kg/360Kg
-
Seat Height:
-
980mm
|
engine |
500cc,4stroke single cylinder water cooled,manual choke |
|
|
ignition |
12v,CDI,Elec.Start |
|
|
Max.Power |
22kw(30.4HP)/5800rpm Approx. |
|
|
Max.Power(EU) |
13.5kw(18.6HP)/5000rpm Approx. |
|
|
Max.Torque |
40N.m/4000rpm Approx. |
|
|
Max.Torque(EU) |
28N.m/3000rpm Approx. |
|
|
Transmission |
CVT Belt Fully Automatic,2WD/4WD with Locking,Rear Differential |
|
|
Gear Shifting |
R,N,L,D |
|
|
Reverse |
Hand Reverse |
|
|
Gas Tank Capacity |
10.5L(2.8Gal) |
|
|
Top Speed |
80km(47Mile)/hr Approx |
|
|
Top Speed(EU) |
70Km(41Mile)/hr Approx |
|
|
Gross Weight |
340Kg/360Kg |
|
|
Length |
2050mm/2250mm |
|
|
Width |
1150mm |
|
|
Height(handle bar) |
1200mm |
|
|
Seat Height |
980mm |
|
|
Wheel Base |
1260mm |
|
|
Brake |
(Ft)Disc+(Rr)Disc |
|
|
Suspension |
Dual A Arm |
|
|
Tires |
(Ft)25in X 8in X 12in |
|
|
|
(Rr)25in X 10in X 12in |
|
|
Lubrication |
Sump |
|
|
Color |
Dark Green,Camo,Red,Black |
|
|
Qty / 20" (pcs) |
10 |
|
|
Qty / 40" (pcs) |
24 |
|
|
Qty / 40"HQ (pcs) |
30 |
|
