Quick Details
-
Model Number:
-
UT343D
-
Automatic shut-down:
-
5 minutes automatic shutdown
-
Backlight brightness:
-
5-level brightness adjustable
-
data storage:
-
500 sets of measurements
-
Statistical measurement:
-
Maximum/minimum/average
-
measurement method:
-
Single/continuous
-
Minimum substrate thickness:
-
0.5mm
-
Minimum measured area diameter:
-
20mm
-
Minimum concave radius of curvature:
-
50mm
-
Minimum convex radius of curvature:
-
5mm
-
FE/NFE:
-
0-1250μm/0-49.2mil
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UNI-T
-
Model Number:
-
UT343D
-
Automatic shut-down:
-
5 minutes automatic shutdown
-
Backlight brightness:
-
5-level brightness adjustable
-
data storage:
-
500 sets of measurements
-
Statistical measurement:
-
Maximum/minimum/average
-
measurement method:
-
Single/continuous
-
Minimum substrate thickness:
-
0.5mm
-
Minimum measured area diameter:
-
20mm
-
Minimum concave radius of curvature:
-
50mm
-
Minimum convex radius of curvature:
-
5mm
-
FE/NFE:
-
0-1250μm/0-49.2mil

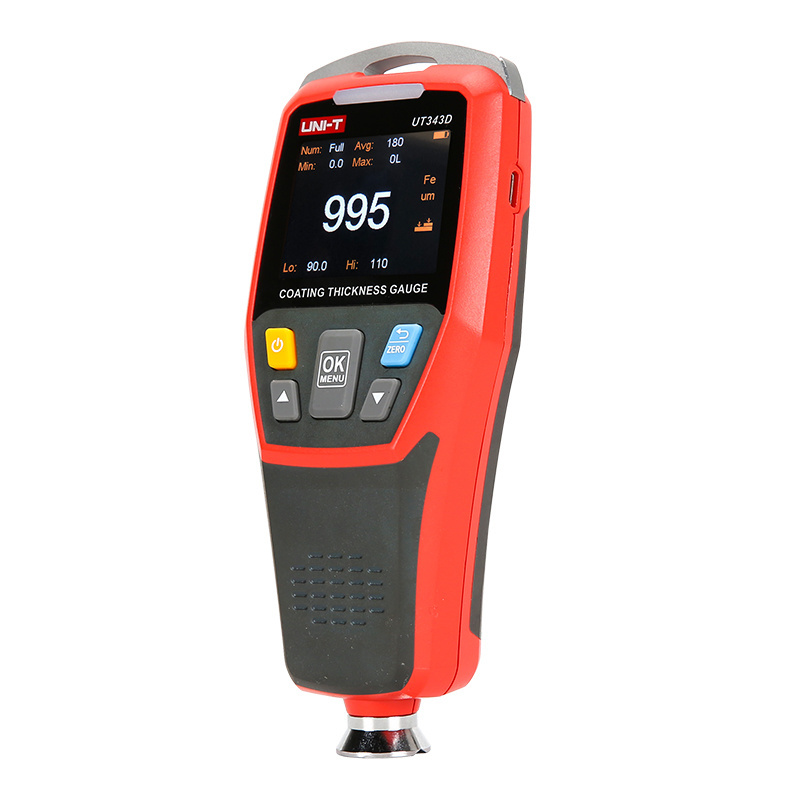

UNI-T UT343D coating thickness gauge automatically identifies the substrate
| Specifications | Range |
| Measuring range | 0~1250um |
| Accuracy | ±(3%H+1)um |
| Resolution | 0.1um (0~99.9um); 1um (100~1250um) |
| Measurement method | Single/Continuous |
| Measurement mode | Max/Min/Avg |
| Metal type | Ferrous/ non-ferrous |
| Features | |
| Display type | 2.0-inches TFT LCD (320 x 240 pixels) |
| LCD brightness control | √ |
| Auto rotatable screen | √ |
| Unit conversion | √ |
| Audio alarm | √ |
| LED alarm | √ |
| PC analysis software | √ |
| USB communication | √ |
| Quick test mode | √ |
| Data storage | 500 groups |
| Auto power off | √ |
| Low battery indication | √ |
| General Characterisitics | |
| Power | 3V battery (R03) x 2 |
| Display | 48mm x 36mm |
| Product color | Red and grey |
| Product net weight | 175g |
| Product size | 153.5mm x 64.5mm x 41mm |
| Standard accessories | Micro USB interface cable, standard piece, batteries, cloth bag |
| Standard individual packing | Gift box, English manual |
| Standard quantity per carton | 20pcs |
| Standard carton measurement | 355mm x 320mm x 195mm |
| Standard carton gross weight | 7.5kg |
