Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAYANG
-
Model Number:
-
DY-T930S
-
Warranty:
-
1 Years
-
Product name:
-
tire changer repair
-
Color:
-
blue or customized
-
Rim clamping from inside:
-
12"-24"
-
Outside clamping:
-
10"-20"
-
Bead breaker force:
-
2500kg
-
Net Weight:
-
349kg
-
Certification:
-
CE ISO
-
Max. wheel diameter:
-
37"(930mm)
-
Model:
-
DY-T930S
-
Max. wheel width:
-
3"-12"(305mm)
Quick Details
-
Motor Power:
-
0.75/1.1KW/0.55KW
-
Operating Pressure:
-
8-10bar
-
Power Supply:
-
110V-415V,50/60HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAYANG
-
Model Number:
-
DY-T930S
-
Warranty:
-
1 Years
-
Product name:
-
tire changer repair
-
Color:
-
blue or customized
-
Rim clamping from inside:
-
12"-24"
-
Outside clamping:
-
10"-20"
-
Bead breaker force:
-
2500kg
-
Net Weight:
-
349kg
-
Certification:
-
CE ISO
-
Max. wheel diameter:
-
37"(930mm)
-
Model:
-
DY-T930S
-
Max. wheel width:
-
3"-12"(305mm)

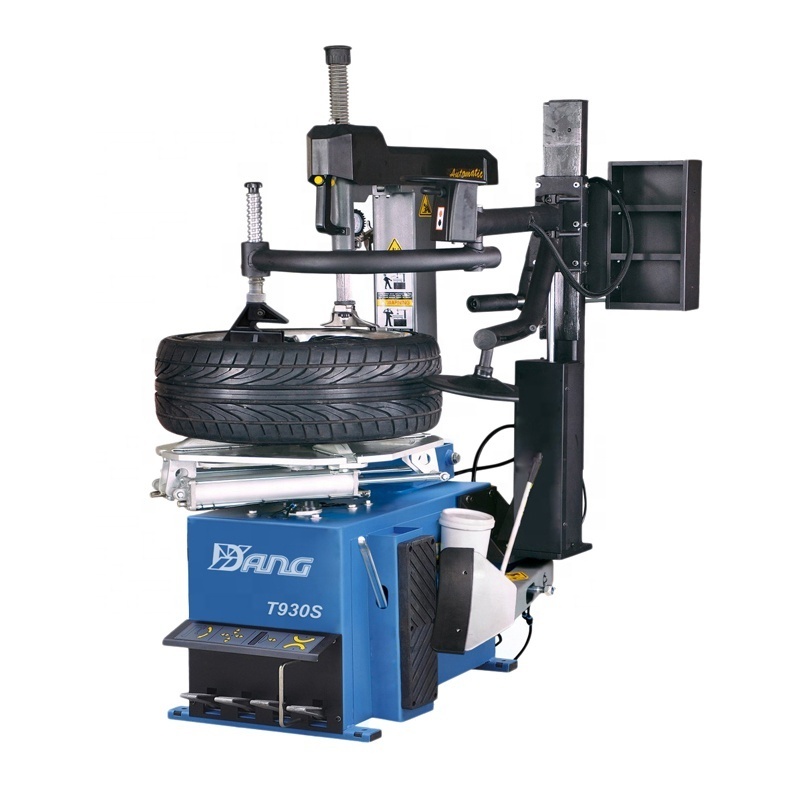

1. Pictures of tire changer
2. Main features of tire changer
1. Automatic tire changer, backward, forward and tilt of column is controlled pneumatically.
2. Special working head, wear-resistance, no bending, no rupture.
3. Assistant arm is easy to operate flat wide tires.
4. Universal switch is 40A with a pure silver touching point, it can bear great load with a ling using life.
5. Clamp jaws made by USA 8640 alloy steel, high strength, wear resistant and anti-rust.
6. Six-axis S41, avoid deformation effectively.
3. Specifications
Motor power--------------- 0.75/1.1KW/0.55KW
Rim Clamping outside-----------10"-20"
Rim Clamping inside-------------12"-24"
Max. tire diameter------------- 37”(930mm )
Max. tire width----------------- 12”(305mm )
Working pressure------------8-10bar
Bead breaker force----------2500kg
Power supply-----------------100V-415V,50/60HZ
N.W-----------------------------349kg
Package size---------------- 980*760*1010mm &12800*550*450mm
26 sets can be put into a 20ft container
4. Factory
5. Our machines in worldwide
6. Delivery
Warranty will continue to be valid for a period of 12 months provided the following warranty conditions are observed.
Warranty Conditions:
1. This warranty is valid from the date of receiving equipments.
2. This warranty is given for the benefit of the first owner only and claims by parties other than the original purchaser will not be recognized, as the warranty is not transferable.
3. This warranty is only valid when the product has been used in accordance with the Installation, Operation, Maintenance and Instruction Manual and by a competent person trained in its use.
4. This warranty does not apply to damage or deterioration, which is caused by human.
5. During warranty period, shipping cost of replacement products or parts are our responsibility.
6. Beyond the warranty period, we provide spare parts to customers at factory cost.
