Quick Details
-
Insulation Material:
-
FiberGlass
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZONZEN
-
Model Number:
-
KX-HFB-HFB-SSB-24S
-
Product name:
-

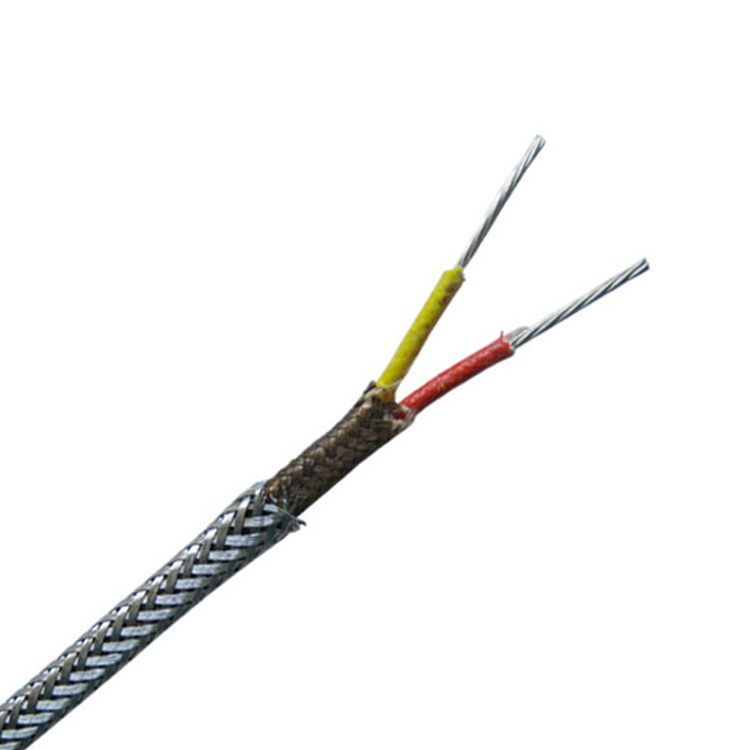

Thermocouple type k cable
-
Wire type:
-
Solid or Stranded
-
Calibration:
-
Type K, J, T, E, S/R
-
Color code:
-
ANSI, IEC, JIS, DIN
-
Insulation:
-
Fiberglass braided
-
Max. temp.::
-
704 C
-
No. of Pairs:
-
Single or Duplex
-
Construction:
-
Parallel conductors
-
Overbraid:
-
Stainless steel braiding
-
Sample:
-
Available
Quick Details
-
Application:
-
Temperature sensor
-
Conductor Material:
-
Chromel-Alumel
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
FiberGlass
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZONZEN
-
Model Number:
-
KX-HFB-HFB-SSB-24S
-
Product name:
-
Thermocouple type k cable
-
Wire type:
-
Solid or Stranded
-
Calibration:
-
Type K, J, T, E, S/R
-
Color code:
-
ANSI, IEC, JIS, DIN
-
Insulation:
-
Fiberglass braided
-
Max. temp.::
-
704 C
-
No. of Pairs:
-
Single or Duplex
-
Construction:
-
Parallel conductors
-
Overbraid:
-
Stainless steel braiding
-
Sample:
-
Available
Features:
1) Continuous use up to 704℃
2) Short term use up to 871℃
3) Flexible with good moisture, chemical, abrasion resistance
1) Continuous use up to 704℃
2) Short term use up to 871℃
3) Flexible with good moisture, chemical, abrasion resistance
4）Provides accurate temperature measure with high temperature stability
5) Calibration test report is available
5) Calibration test report is available
FB-FB Physical Properties
|
Characteristics
|
Insulation
|
Jacket
|
|
Abrasion Resistance
|
Good
|
Good
|
|
Cut Through Resistance
|
Very good
|
Excellent
|
|
Moisture Resistance
|
Good
|
Good
|
|
Solvent Resistance
|
Excellent
|
Excellent
|
|
Service Temperature
|
704℃ Continuous
871℃ Single
|
704℃ Continuous
871℃ Single
|
|
Flame Test
|
Non-Flammable
|
Non-Flammable
|
Model explanation:
KX
-H
FB
-H
FB
-SSB-
24
-
S
1 2 3 4 5 6
1. Calibration: Type K
2. Conductor insulation: High temp. Braid fiber
3. Jacket insulation: High temp. Braid fiber
4. Outer shield: Stainless steel braided
5. Wire size: 24AWG, 7/0.20mm
6. "S" means "Stranded", "Blank" means "Solid"
Specifications:
