1. Rigorous quality control meeting the highest international standards
2. High-transmissivity low-iron tempered glass, strong aluminium frame Using UV-resistant silicon
3. Aesthetic appearance with excellent efficiency based on innovative photovoltalic technologies
4. High quality,strong aluminium frame,passing mechanical load testing 5400 Pa and wind pressure 2400Pa
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
CNCB50W
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
635*540*25mm
-
OME ORDER:
-
ACCEPTABLE
-
Certificate:
-
CE
Quick Details
-
Panel Efficiency:
-
14.6%
-
Warranty:
-
25years
-
Brand Name:
-
CINCO
-
Model Number:
-
CNCB50W
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
635*540*25mm
-
OME ORDER:
-
ACCEPTABLE
-
Certificate:
-
CE
Products Description

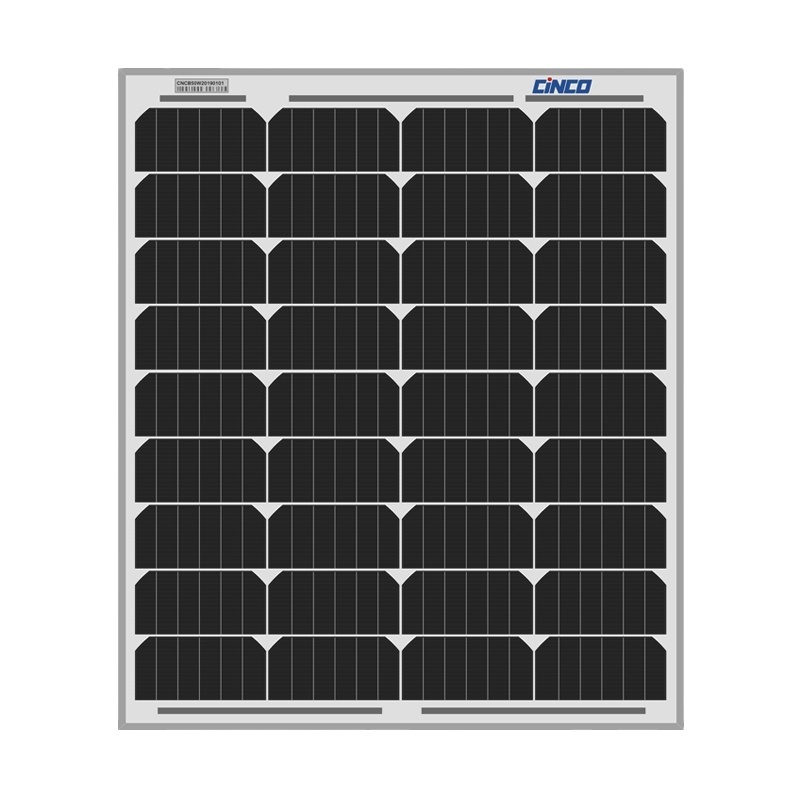

High Quality Solar Panel
Mono crystalline
Poly crystalline
5BB/12BB Mono/Poly Solar Cell
PV Junction Box
Aluminum frame
High transmission glass
Details Images
Product Paramenters
|
Electrical Characteristics
|
|
|
|
|
||||
|
Model
|
CNCB50W
|
|
|
|
||||
|
Maximum Power at STC (Pmax)
|
50W
|
|
|
|
||||
|
Optimum Operating Voltage (Vmp)
|
17.9V
|
|
|
|
||||
|
Optimum Operating Current (Imp)
|
2.79A
|
|
|
|
||||
|
Open-Circuit Voltage (Voc)
|
22.2V
|
|
|
|
||||
|
Short-Circuit Current (Isc)
|
2.99A
|
|
|
|
||||
|
Solar Module Efficiency (%)
|
14.60
|
|
|
|
||||
|
Operating Temperature
|
-40 to 85℃
|
|
|
|
||||
|
Maximum System Voltage
|
DC1000
|
|
|
|
||||
|
Mechanical Characteristics
|
|
|
|
|
||||
|
Front glass
|
3.2mm tempered glass
|
|
|
|
||||
|
Frame
|
Anodized aluminium alloy
|
|
|
|
||||
|
Dimensions
|
635mm*540mm*25mm
|
|
|
|
||||
|
Weight
|
4.5kg
|
|
|
|
||||
|
STC:Irradiance 1000W/㎡,Modules Temperature 25℃,AM=1.5
|
|
|
|
|
||||
Product packaging
Customer Photos
Norway--Solar Tracking System
Saudi Arabia-Wind Solar Hybrid System
Hungary-Off Grid Solar System
Panama-Off Grid Solar System
South Africa-Energy Storage System
China-On Grid Solar System
USA-Grid Tied Solar System
Indonesia-Rooftop Solar Power Station
Ukraine-On Grid Solar System
UK-Ground Solar Power Station
