Quick Details
-
Brand Name:
-
GaoShan
-
Standard or Nonstandard:
-
Standard
-
Connection:
-
Flange Ends
-
Certificate:
-
API, ISO, CE
-
Color:
-
Upon request
-
Standard:
-
DIN
-
Nominal Pressure:
-
PN16
-
Product name:
-
Double Flanged Fire Fighting Gate Valve
-
Applicable medium:
-
Water, sewage, drinking water
-
Material:
-
Ductile iron
Quick Details
-
Port Size:
-
2" - 48"
-
Warranty:
-
18 months
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GaoShan
-
Standard or Nonstandard:
-
Standard
-
Connection:
-
Flange Ends
-
Certificate:
-
API, ISO, CE
-
Color:
-
Upon request
-
Standard:
-
DIN
-
Nominal Pressure:
-
PN16
-
Product name:
-
Double Flanged Fire Fighting Gate Valve
-
Applicable medium:
-
Water, sewage, drinking water
-
Material:
-
Ductile iron

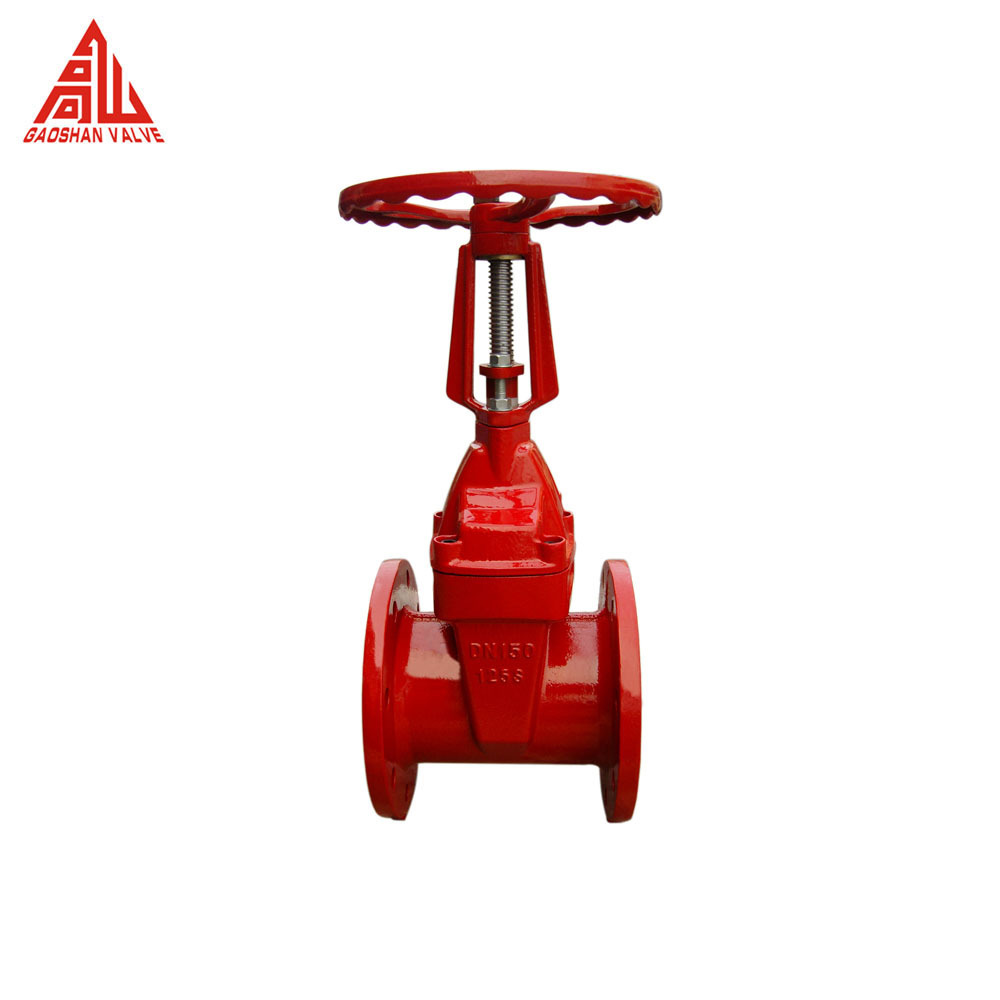

Double Flanged Fire Fighting Gate Valve
Specification of Double Flanged Fire Fighting Gate Valve :
1. Size : DN50 - DN400
2. Pressure : PN10, PN16, PN25, PN40, etc.
3. Applicable medium : Seawater, Lubricating oil, Fresh water
Material of main part of Double Flanged Fire Fighting Gate Valve :
Body, Cover, Disc : Gray cast iron(HT200)
Stem : Stainless steel(2Cr13)
Square nut : Aluminum bronze(QA19-2)
Standards Compliance:
|
Item |
Standard |
|
Design Standard |
API600 or API 6D, DIN 3352, EN 10434, GB /T 12234, JIS B2073 2083, BS 1414, |
|
Length Standard |
ASME B16.10, DIN 3202, EN 558, GB/T12221, JIS B2002, |
|
Flange Standard |
ASME B16.5(NPS<24) or ASME B16.47(NPS>26), DIN 2543-2545, EN 1092, GB9113, JB79,GB13402, JIS B2212 2214, BS 4504 BS1560 |
|
Welding End Standard |
ASME B16.25, DIN 3239, EN 12627, GB/T12224, BS 2080 |
|
Appearance Test Standard |
MSS SP54 |
|
Inspection and Pressure Testing Standard |
API 598 or API 6D or API 600, DIN 3230, EN 12266, GB13927, JB9092, JIS B2003, BS5146 |
|
Pressure-Temperature Rating |
ASME B16.34, DIN 2401, GB/T12224, JIS B2073 2083, BS12516 1560 |
Attention:
Feel free to contact me if you want to purchase other size or Standard gate valve.
We can supply gate valve with specification as below:
Size range: 1/2" - 24" (DN15 - DN600)
Pressure range:
class150, class300, class400, class600, class900, class1500, class 2500
PN10, PN16, PN25, PN40, PN64, PN100, PN150, PN250, PN420
Standard: ANSI, API, ISO, DIN, BS, GB, etc.
