Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SAMET
-
Power:
-
1.5kw
-
Dimension(L*W*H):
-
3000*1100*2200mm
-
Weight:
-
500 KG
-
Features:
-
Leather Measuring machine
-
Product name:
-

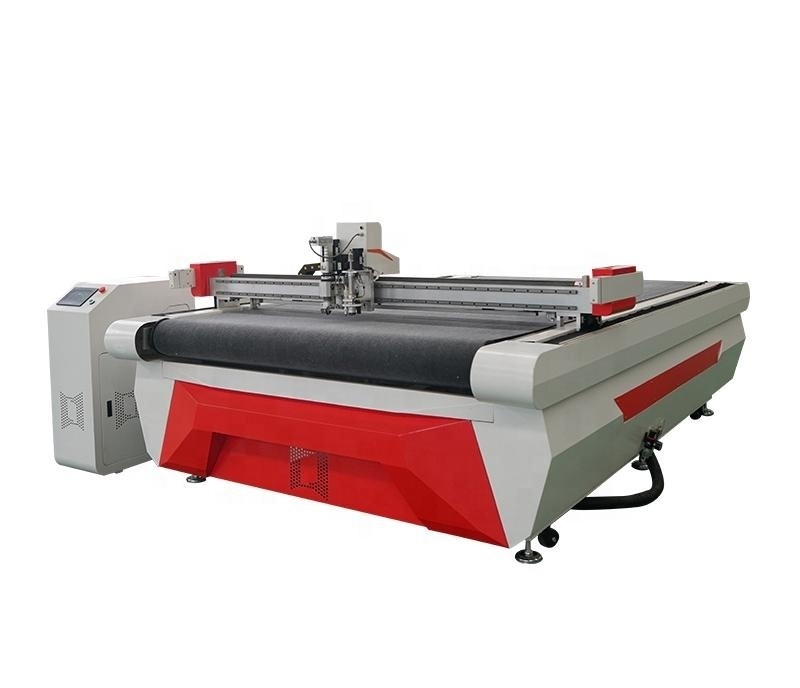

Clothes Cutter Machine
-
Motor:
-
Stepper Motor
-
Cutting tools:
-
scillating Cutting Tool
-
Transmission system:
-
Yaskawa Servo Motor
-
Cutting speed:
-
200-2000mm/s
-
Working width:
-
420mm
-
Function:
-
Marking
-
Cutting materials:
-
Cloth Fabric Garment Wool Textile Silk
-
Color:
-
customer needing
-
moq:
-
1
Quick Details
-
Production Capacity:
-
As your requirements
-
Voltage:
-
220v/380v
-
Application:
-
leather
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SAMET
-
Power:
-
1.5kw
-
Dimension(L*W*H):
-
3000*1100*2200mm
-
Weight:
-
500 KG
-
Features:
-
Leather Measuring machine
-
Product name:
-
Clothes Cutter Machine
-
Motor:
-
Stepper Motor
-
Cutting tools:
-
scillating Cutting Tool
-
Transmission system:
-
Yaskawa Servo Motor
-
Cutting speed:
-
200-2000mm/s
-
Working width:
-
420mm
-
Function:
-
Marking
-
Cutting materials:
-
Cloth Fabric Garment Wool Textile Silk
-
Color:
-
customer needing
-
moq:
-
1
Products Description
Machine Features
1.
Taiwan Hiwin linear motion guide rail is selected to ensure smooth, high speed and no jitter of the cutter head during operation. With the characteristics of small slit, fast speed and high precision, the accuracy and service life of the equipment are guaranteed.
2.
Software automatic typesetting function. After the cutting pattern is designed, the software automatically arranges the pattern, and the material pattern closely fits to reduce waste.
3.
The advanced speed change system can realize the function of instantaneous speed change and self adjustment of speed per hour according to the needs of curve and straight line during the cutting process, so that the cutting edge is smooth and the angle curve is natural.
4.
Totally closed circulation is dust free and clean, which extends the service life of the cutter head and effectively reduces the production cost
|
Model
|
LG-1625
|
|
Working area
|
2500×1600mm
|
|
Machine size (mm)
|
3450×2300×1250
|
|
Rated power
|
11KW
|
|
Fixed mode
|
flat plate table
|
|
Safety device
|
Using infrared sensors, responsive, safe and reliable.
|
|
translational velocity
|
800-1200mm/s
|
|
Cutting speed
|
200-800mm/s(according to different cutting materials)
|
|
Cutting thickness
|
≤22mm(according to different cutting materials)
|
|
Cutting materials
|
Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber
|
|
Repeated accuracy
|
≤0.1mm
|
|
Capacity
|
2GB
|
|
Transmission system
|
imported(Digital servo motor, linear guide, synchronous belt, ball screw)
|
|
Instruction system
|
HP-GL compatible format
|
|
Voltage
|
380V±10%
|
Details Images
Emergency switch
Automatic sensing
The infrared induction anti-collision device is adopted to ensure the safety of human and machine when the machine runs at high speed.
Control System
Convenient, simple and fast.
Guide
Positioning accuracy 0.1mm.
Positioning accuracy 0.1mm.
Application
All kinds of Leather, various garment flexible materials, KT board, Chevron board, honeycomb board, car stickers, adhesive, photo frame paper, gray board paper, corrugated paper, EPE foam, PVC board, acrylic sheet, thick foam, composite materials, etc. It can draw various high precision drawing cutting materials: corrugated board, foam, PVC, styrene, Coroplast, Celtec, magnetic film, adhesive vinyl, leather, rubber, fabrics, high intensity reflective films, paper, cardboard, polystyrene, magnetic films, vinyletc.
Besides EVA foam, cnc digital cutter machine can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board,EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display,termal insulation, model & mock up making, puzzle and pattern cutting, etc.
Besides EVA foam, cnc digital cutter machine can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board,EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display,termal insulation, model & mock up making, puzzle and pattern cutting, etc.
