Quick Details
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
E-HOUSING
-
Model Number:
-
combinations of our certificated models
-
Product name:
-
Modular Building Garage Garden Bathroom Prefab Container Office
-
Type:
-
Customizable
-
Door:
-
High-quality insulated light steel door/sliding glass door
-
Floor:
-
Steel frame+cement pressure plate/MGO+PVC/customized
-
Window:
-
Plastic steel window/Aluminum alloy/customized
-
Size per unit container:
-
6058*2438*2896mm/customized
-
Color:
-
Customized Color
-
Texture of material:
-
Galvanized steel, sandwich panel, aluminum alloy, fiber cement, PVC
-
Keyword:
-
Economical fast installation low-cost green quick assembling
-
Product Keywords:
-
Modular Building Garage Garden Bathroom Prefab Container Office
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Office Building
-
Product Type:
-
Container Houses
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
E-HOUSING
-
Model Number:
-
combinations of our certificated models
-
Product name:
-
Modular Building Garage Garden Bathroom Prefab Container Office
-
Type:
-
Customizable
-
Door:
-
High-quality insulated light steel door/sliding glass door
-
Floor:
-
Steel frame+cement pressure plate/MGO+PVC/customized
-
Window:
-
Plastic steel window/Aluminum alloy/customized
-
Size per unit container:
-
6058*2438*2896mm/customized
-
Color:
-
Customized Color
-
Texture of material:
-
Galvanized steel, sandwich panel, aluminum alloy, fiber cement, PVC
-
Keyword:
-
Economical fast installation low-cost green quick assembling
-
Product Keywords:
-
Modular Building Garage Garden Bathroom Prefab Container Office

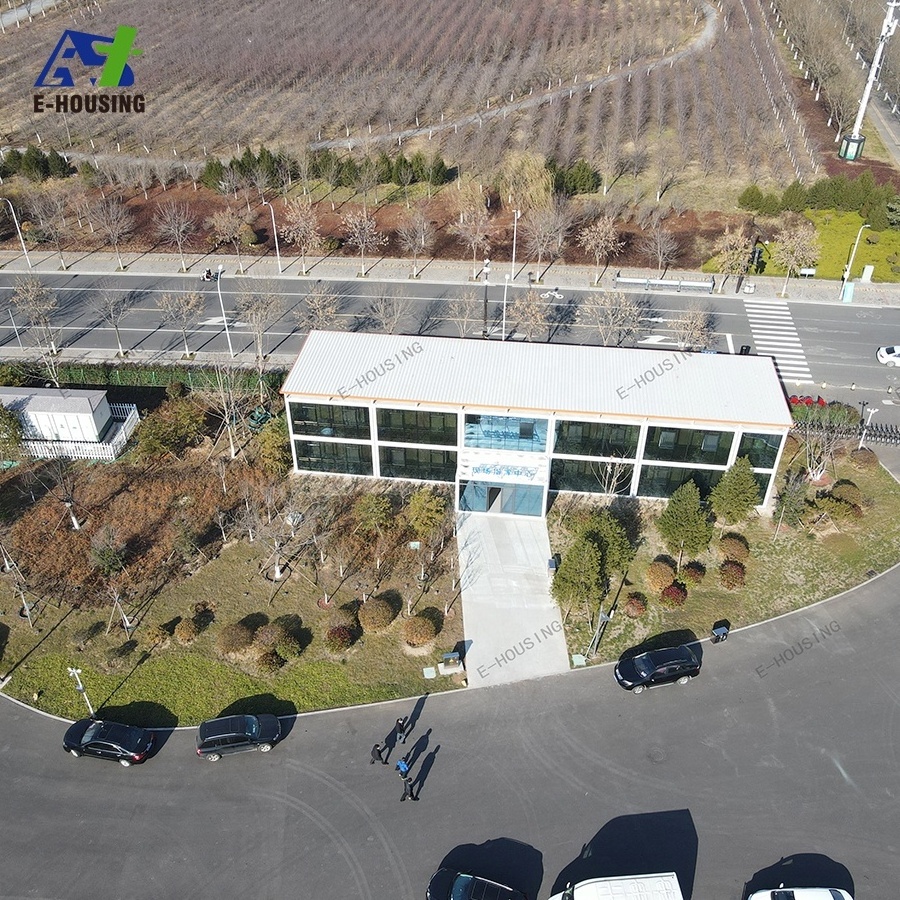

Product Detailed Photos:
The exterior color can be customized and the interior design can be personalized
.
The graphic design and elevation can be customized.
Specification:
|
Container House Parameter
|
|
|
|
|||
|
1
|
Design Parameter
|
Product Name
|
China Simple Living Modular Prefab Building Garage Garden Portable Bathroom Prefabricated House Container Office
|
|||
|
|
|
Main Material
|
Galvanized Steel
|
|||
|
|
|
Per Unit Container Size of the Compound
|
L6058*W2438*H2896mm
|
|||
|
|
|
Storey
|
Usually no more than 3 storeys
|
|||
|
|
|
Life Span
|
Up to 20 years
|
|||
|
|
|
Earthquake Resistance
|
Grade 8
|
|||
|
|
|
Refractory Grade
|
Grade A(Noncombustible Building Materials)
|
|||
|
|
|
Surface
|
Polyester Powder Coatings, electrostatic spray, Thickness≥80μm (Environmental protection and pollution-free）
|
|||
|
|
|
Floor Live Load
|
2.0KN/m
2
--（204KGF）
|
|||
|
|
|
Roof Live Load
|
1.0KN/m
2
--（102KGF）
|
|||
|
|
|
Wind Load
|
1.2KN/m
2
--（120.4KGF）
|
|||
|
2
|
Roof System
|
Roof Type
|
Flat or sloping roof with organized internal water draining design
|
|||
|
|
|
Steel Frame
|
Main Steel Frame: Galvanized Cold-Formed Steel
|
|||
|
|
|
Roof Panel
|
Aluminum-Zinc Color Steel Sheet, PE Finishing Coat, 360° Full Connection
|
|||
|
|
|
Insulation
|
||||
|
|
|
Ceiling Board
|
Aluminum-Zinc Color Steel Sheet, PE Finishing Coat.
|
|||
|
|
|
Industrial Socket
|
Fixed in explosion-proof box at the top beam of the short side, with 1 main power plug for power connection between containers
|
|||
|
3
|
|
Corner Pillar
|
4PCS Galvanized-Cold rolled steel; Corner pillar and main frame are joined by hexagon socket head bolt and corner fittings which grade 8.8
strength |
|||
|
4
|
Wall System:
Rock Wool Board,
Sandwich Panel
|
Size
|
Thickness: 50-75mm
|
|||
|
|
|
Exterior/Interior Color Plate (standard configuration)
|
Corrugated Aluminum-Zinc Color Steel Sheet, PE Finishing Coat
|
|||
|
|
|
Insulation Layer (standard configuration)
|
50-75mm Rock Wool Board
|
|||
|
|
|
Fire-Proof Standard
|
Grade A Non-Flammable
|
|||
|
5
|
Floor System
|
Steel Frame
|
Main Steel Frame: Galvanized cold-Formed Steel
|
|||
|
|
|
Floor Board
|
Cement Pressure Plate, MgO board, etc, Grade A Non-flammable
|
|||
|
|
|
Interior Flooring
|
Plastic Board, etc, the color alternative
|
|||
|
6
|
Door & Window
|
Insulated Light Steel Door
|
Glass sliding door is also available.
|
|||
|
|
|
Plastic Steel Window
|
Double glass with mosquito screen and security bar. Aluminum alloy window is also available.
|
|||
International CE and National Certification:
Qualified Raw Material:
Green Manufacturing Process:
Packing&Delivery:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
