Quick Details
-
Compressor:
-
MLZ038
-
Voltage:
-
380v
-
power:
-
5HP
-
condenser fan diameter:
-
400*2
-
condenser fan voltage:
-
380v
-
inlet:
-
12
-
outlet:
-
19
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Refrigerant:
-
r404/r22
-
Color:
-
White
-
Compressor:
-
MLZ038
-
Voltage:
-
380v
-
power:
-
5HP
-
condenser fan diameter:
-
400*2
-
condenser fan voltage:
-
380v
-
inlet:
-
12
-
outlet:
-
19

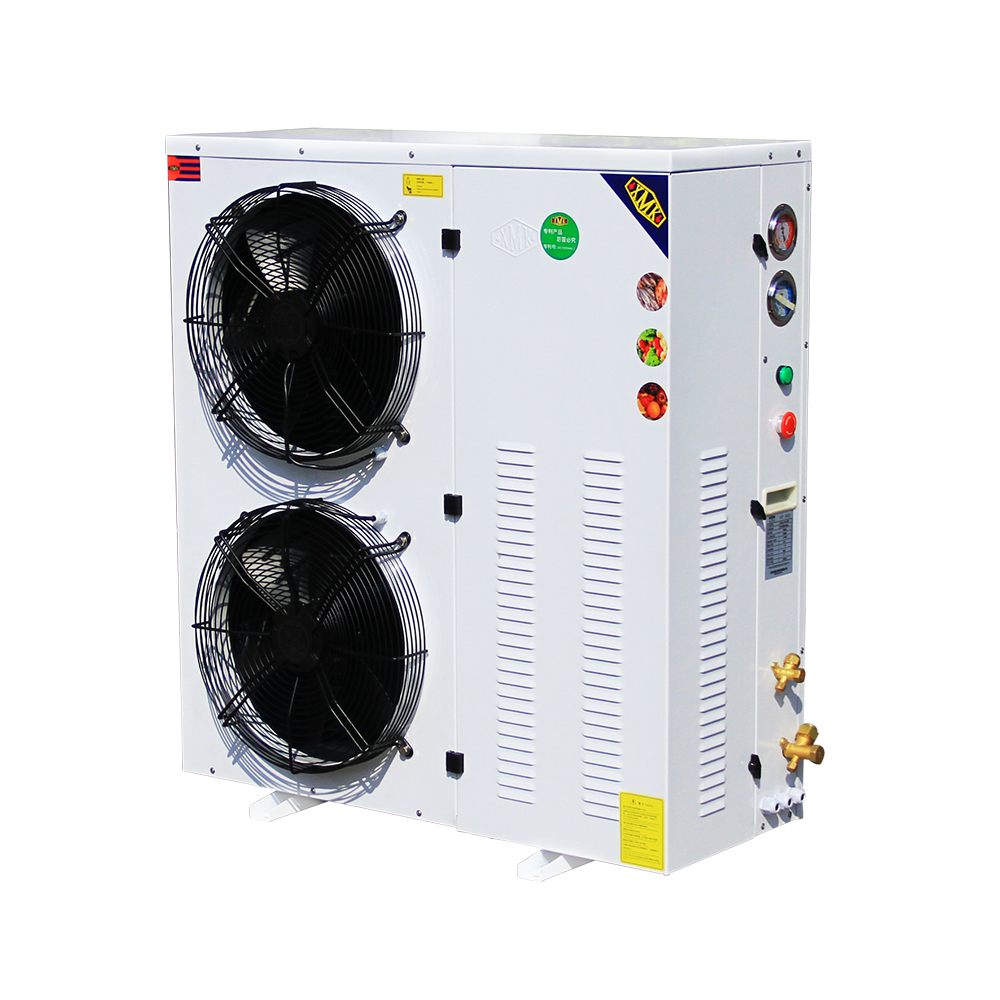

XMK Copeland Compressor 5 hp Condensing Unit
Product Introduction
This series products feature box type structure with hermetic compressor, that is compact and pleasant looking, applicable to cold display cases, cold storage rooms, ice producers etc. The applicable temperature ranges are: -5℃~ 10℃ and -10℃~-18℃.
Product Feature
1. Electric components were added on the basis of XMK series,including condensing unit,main control board,cold room temp control board and operation board.
2. Main control board can start/stop compressor by system low voltage,be suitable for super market,milk container,etc.
3. With multi protections including phase protection,phase lack,over current,too constant start of compressor .
4. With fan speed regulator ,to adjust condensing fan according to condensing temp.
5. With operation data display function ,to check operation current of compressor ,discharge temp,and condensing temp.
Product Picture
|
Model |
(HP) Power |
Compressor |
Voltage |
Condenser fan |
W(℃)
Capacity |
Connection |
||||
|
Diameter |
Voltage |
-25 | -15 | -5 |
Inlet |
Outlet |
||||
| XMK-2J-W-A | 2 | ZB15KQE-PFJ-558 | 220/380 | Φ400*1 | 220/380 | 1870 | 2680 | 3850 | Φ9.52 | Φ16 |
| XMK-3J-W-A | 3 | MLZ021 | 220/380 | Φ400*1 | 220/380 | 3000 | 4150 | 5500 | Φ9.52 | Φ16 |
| XMK-4J-W-A | 4 | MLZ030 | 380 | Φ400*2 | 380 | 4050 | 5850 | 7725 | Φ12.7 | Φ19 |
| XMK-5J-W-A | 5 | MLZ038 | 380 | Φ400*2 | 380 | 5100 | 7025 | 9211 | Φ12.7 | Φ19 |
| XMK-6J-W-A | 6 | MLZ045 | 380 | Φ400*2 | 380 | 5800 | 8358 | 11350 | Φ12.7 | Φ19 |
| XMK-8J-W-A | 8 | MLZ058 | 380 | Φ500*2 | 380 | 7050 | 10400 | 14150 | Φ16 | Φ28 |
| XMK-10J-W-A | 10 | MLZ076 | 380 | Φ500*2 | 380 | 10900 | 14650 | 18700 | Φ16 | Φ28 |
