Quick Details
-
Tent Frame:
-
hard pressed extruded aluminum alloy
-
Tent Side Wall:
-
PVC walls,glass wall,ABS wall,sandwich panel wall,etc.
-
Tent Roof Cover:
-
850g/sqm double PVC-coated polyester textile
-
Tent Connectors:
-
Hot-DIP Galvanized
-
Ground Situation:
-
grassland,earth land,asphalt,cement ground,marble,etc.
-
Roof Fixing:
-
bar tensioning
-
Wind Resistance:
-
100 km/h
-
Temperature Resistance:
-
-30 degree Celsius ~ +70 degree Celsius
-
Service Life:
-
More than 15 years
-
Usage:
-
Big Event, Exhibition
Quick Details
-
Brand Name:
-
LIIRI TENT
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
HEX
-
Tent Frame:
-
hard pressed extruded aluminum alloy
-
Tent Side Wall:
-
PVC walls,glass wall,ABS wall,sandwich panel wall,etc.
-
Tent Roof Cover:
-
850g/sqm double PVC-coated polyester textile
-
Tent Connectors:
-
Hot-DIP Galvanized
-
Ground Situation:
-
grassland,earth land,asphalt,cement ground,marble,etc.
-
Roof Fixing:
-
bar tensioning
-
Wind Resistance:
-
100 km/h
-
Temperature Resistance:
-
-30 degree Celsius ~ +70 degree Celsius
-
Service Life:
-
More than 15 years
-
Usage:
-
Big Event, Exhibition

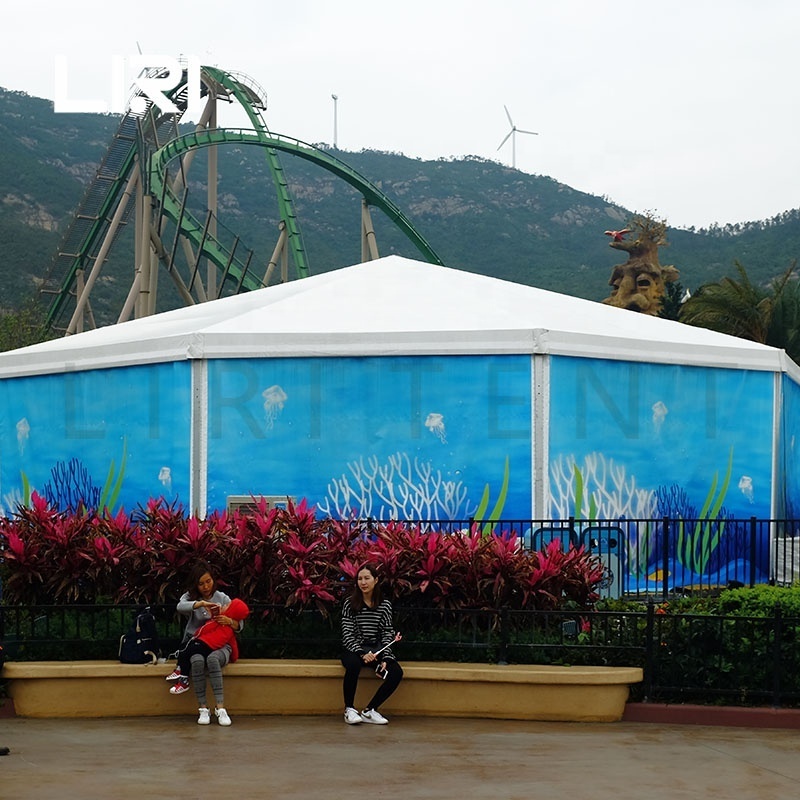

10x10 Large Aluminum Hexagon Frame Canopy Multi-side Tent for Events
| Item | Width | Eave Height | Ridge Height | Side Length | Main Profile |
| NPT-HEX | 6m | 2.6m | 3.71m | 3m | 100x48x3mm(4-channel) |
| NPT-HEX | 8m | 2.6m | 4.18m | 4m | 100x48x3mm(4-channel) |
| NPT-HEX | 9m | 2.6m | 4.24m | 4.5m | 100x48x3mm(4-channel) |
| WT-HEX | 10m | 2.6m | 4.40m | 5m | 122x68x3mm(4-channel) |
| WT-HEX | 12m | 2.6m | 4.78m | 6m | 122x68x3mm(4-channel) |
| ET-OCT | 15m | 3.3m | 5.62m | 5.74m | 152x119x3.5mm(4-channel) |
| B T-OCT | 15m | 3.88m | 6.30m | 5.74m | 204x120x4mm(4-channel) |
| BT-OCT | 20m | 3.88m | 7.10m | 7.68m | 204x120x4mm(4-channel) |
| Please note this is specifications of hexagonal tent. Contact us now for more multi-sides tents such as octagonal tent, decagon tent, dodecagonal tent, hexadecagon tent... Customized tent is available. | |||||
| Main Profile |
Material: Hard pressed extruded aluminium 6082-T6, 6061/T6 Features: Stainless |
| Cover |
Material: Double PVC-coated polyester textile, 750g-900g/m² Features: Waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant |
| Eave Connection | Hot-dip Galvanized twin steel plate |
| Wind Loading | 100km/hour |
Commercial Tent Ticket Office Wedding Tent
Sports Event Tent Circus Tent Outdoor Tent
Q: Can you print our logos on the tent?
Yes. Customized logos can be printed on the tent fabric according to your requirements.
Q: Is that factory price?
Yes. We assure you all prices are based on factory.
Q: Does your tent be able to installed repeatedly? What is the life span?
Our tents can be assembled and dismantled easily and repeatedly with small transportation size. The lifespan of aluminium framework can reach 15-20 years, and 5-8 years for PVC fabrics depending on different conditions of usage.
Q: What documents are available?
A full range documents including structural drawings, packing list, installation manual and relative certificates can be provided. Moreover, customs declaration is provided. We provide one-stop service for you.
Q: LIRI Order Process
1. Contact with Liri sales team
↓
2. Provide size and usage information to Liri sales team
↓
3. Liri sales team will Offer design and quote
↓
4. Confirm design and quote
↓
5. Confirm all details and sign a contract
↓
6. Deposit Payment
↓
7. Confirm 3D drawing
↓
8. Start production (Lead time 25 days)
↓
9. Track production and feedback
↓
10. Finish Production
↓
11. Inspect tent quality
↓
12. Balance payment
↓
13. Arrange shipment Yes (Liri Arrange)
↓ No (Arranged by buyer)
14. Guide installation Yes (Arrange skilled supervisor)
↓ No (Set up by buyer)
15. Offer After-sale service and follow up for 5 years
