Quick Details
-
Insulation Material:
-
Enameled
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LP Magnet Wire
-
Model Number:
-
ECCA Wire
-
Rated voltage:
-
varies by wire specifications
-
Name:
-
Enameled Copper Coated Aluminum Magnet Wire For Voice Winding
-
Centification:
-
UL,RoHS,ISO9001
-
Insulation:
-
PEW, PIW, EIW, AIW, EI/AIW
-
Diameter:
-
0.19-4.0mm
-
Standard:
-
GB,NEMA,JIS
-
Color:
-
Natural
-
Delivery time:
-
7-30 days
-
Advantages:
-
High conductivity,Good solderability,High ductility
-
Thermal Class:
-
130-220℃
-
Applications:
-
Motor,transformer,welding machine and generator.
Quick Details
-
Application:
-
motor,transformer,speaker coils,Voice Coil
-
Conductor Material:
-
Copper Clad Aluminum
-
Conductor Type:
-
Solid
-
Insulation Material:
-
Enameled
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LP Magnet Wire
-
Model Number:
-
ECCA Wire
-
Rated voltage:
-
varies by wire specifications
-
Name:
-
Enameled Copper Coated Aluminum Magnet Wire For Voice Winding
-
Centification:
-
UL,RoHS,ISO9001
-
Insulation:
-
PEW, PIW, EIW, AIW, EI/AIW
-
Diameter:
-
0.19-4.0mm
-
Standard:
-
GB,NEMA,JIS
-
Color:
-
Natural
-
Delivery time:
-
7-30 days
-
Advantages:
-
High conductivity,Good solderability,High ductility
-
Thermal Class:
-
130-220℃
-
Applications:
-
Motor,transformer,welding machine and generator.

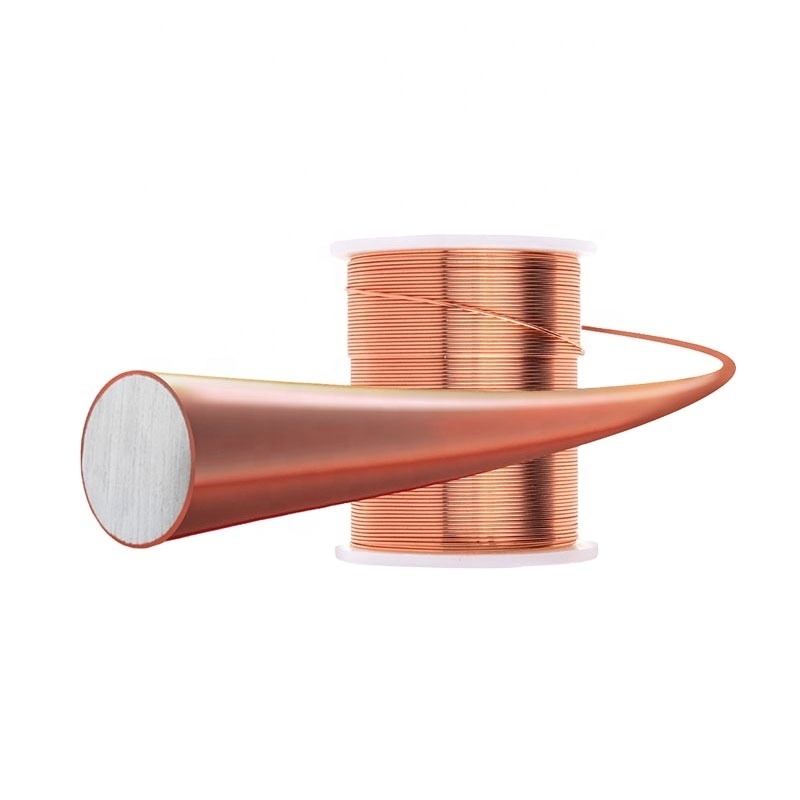

Copper Clad Aluminum Enameled Wire CCAW/CCAW Voice Coil Wire
Enameled Copper clad aluminum wire
adopts advanced cladding welding manufacturing technology,the high quality copper strip concentrically coated on the outer surface of the conductor,such as aluminum rod or wire and copper layer and the core formed between firm metallurgical bonding between the atoms. Make the combination of two different metal materials as an integral whole, can be like processing a single wire drawing and annealing processing, copper and aluminum in the process of drawing with variable diameter ratio,volume ratio of copper layer remained relatively constant.
|
Enameled Type
|
Polyester
|
Modified Polyester
|
polyester-imide
|
Polyamide-imide
|
polyester-imide /Polyamide-imide
|
|
Insulation Type
|
PEW/130
|
PEW(G)/155
|
EIW/180
|
EI/AIW/200
|
EIW(EI/AIW)220
|
|
Thermal class
|
130, CLASS B
|
155, CLASS F
|
180, CLASS H
|
200, CLASS C
|
220, CLASS N
|
|
Conductor
|
CCA
|
CCA
|
CCA
|
CCA
|
CCA
|
|
Size(mm)
|
0.19-4.0
|
0.19-4.0
|
0.19-4.0
|
0.19-4.0
|
0.19-4.0
|
|
Enamel thickness
|
Grade(0,1,2,3)
|
Grade(0,1,2,3)
|
Grade(0,1,2,3)
|
Grade(0,1,2,3)
|
Grade(0,1,2,3)
|
|
Standard
|
IEC60317-0-2
IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000 |
IEC60317-0-2
IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000 |
EC60317-0-2
IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000 |
IEC60317-0-2
IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000 |
IEC60317-0-2
IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000 |
Main Features
1) Good electric conductivity
2) Direct soldering performance
3)High breakdown voltage
4) Sustained and stable quality
5) Tin soldering,Good adhesion
