Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LB12-22QC
-
Diameter:
-
12/16/19/22mm
-
Switch Combination:
-
1NO-Normal Open
-
Operation type:
-
Momentary
-
Emitting Type:
-
Ring LED/Ring+Symbol LED
-
Lamp color:
-
Red Green Yellow Blue White
-
Lamp voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Waterproof/Protection:
-
IP68/IK08
-
Rated Voltage/Current:
-
AC250V/0.5A
-
Shell Metal:
-
Stainless Steel/chromium plated brass/Aluminum oxide
-
Product name:
-

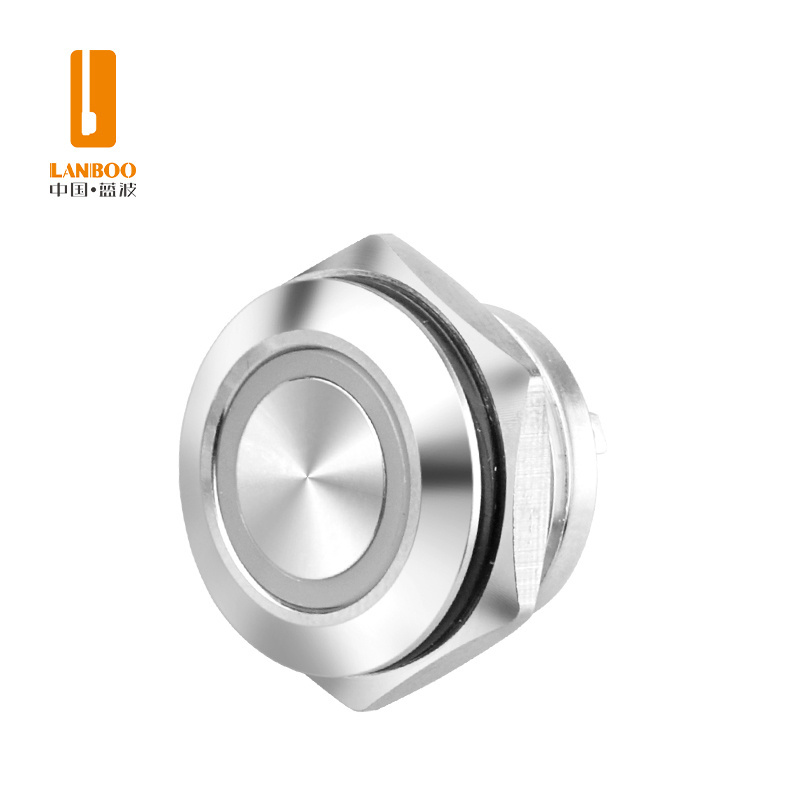

12-22QC Ultra-thin tact metal button switch
-
Certification:
-
CCC,CE
Quick Details
-
Protection Level:
-
IP68/IK08
-
Max. Current:
-
Ith:0.5A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LB12-22QC
-
Diameter:
-
12/16/19/22mm
-
Switch Combination:
-
1NO-Normal Open
-
Operation type:
-
Momentary
-
Emitting Type:
-
Ring LED/Ring+Symbol LED
-
Lamp color:
-
Red Green Yellow Blue White
-
Lamp voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Waterproof/Protection:
-
IP68/IK08
-
Rated Voltage/Current:
-
AC250V/0.5A
-
Shell Metal:
-
Stainless Steel/chromium plated brass/Aluminum oxide
-
Product name:
-
12-22QC Ultra-thin tact metal button switch
-
Certification:
-
CCC,CE
| Model Description | |
| Model NO. | LB12-22QC Ultra-thin tact metal push button switch |
| Mounting diameter | 12/16/19/22mm |
| Head shape | Plat Head |
| Switch Combination | 1NO |
| Operation type | Momentary |
| Illuminating type | Ring LED/Ring+Symbol LED |
| Illuminating color | red,green,blue,yellow,white |
| Lamp voltage | 2V/3V/6V/12V/24V/36V/110V/220V/250V |
| Shell material | Stainless Steel/chromium plated brass/Aluminum oxide |
| The Others Parameters | |||
| Project | Parameter | Project | Parameter |
| Contact type | Fast moving contact | Operation Schedule | Connected:0.5±0.1mm,Total:0.9±0.1mm |
| Contact Resistance | ≤50mΩ | Actuating Force | about 3.5±0.8N |
| Insulation Resistance | ≥1000mΩ | Mounting panel thickness | ≤4mm. |
| Dielectric Strength | 1000VAC min | Nut torque | 0.8~1.2N.m |
| Ambient Temperature | -40℃~+80℃ |
Outshell Press Key |
304 Stainless Steel , 6063 Aluminum oxide, H57/59chromium plated brass 316Stainless Steel, 6063 Aluminum oxide
|
| Protection Levels | IK10 | Diffuser | PC |
| Electrical Life |
Resistant load
AC220V/0.2A: 10,000 times DC24V/0.2A: 10,000 times |
Nut Base Seat/ Bottom Seat |
6063 pickled / 304 stainless steel
PA66 |
| Mechanical Life |
Momentary: 100,000 times |
Pins Contact |
H65 Silver Plated AgSnO 2 (RoHS) |
| Waterproof | IP68 | Spring | Improved steel wire |
| Switch Rated Load | ||||
|
Project |
Parameter | |||
| Reated Insulation Voltage | AC250V | |||
| Fusing Current | 0.5A | |||
| Rated Voltage | DC12V | DC24V | AC220V | |
| Rated Current | Nonreactive Load | 0.2A | 0.2A | 0.2A |
| Led Lamp Parameters | |
| Project | Parameter |
| Led type | High Brightness LED lamp,cool |
| Luminous color | Red,Green,Blue,Yellow,White |
| Rated Voltage | AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V |
| Rated Current | ≤20mA |
| Reference Life | 50,000hours |
