Quick Details
-
Model Number:
-
SPS-8
-
Max. Current:
-
60A
-
Mechanical Life:
-
50000 Hours
-
Products name:
-
12V Electric 8 Gauge Toggle Switch Panel
-
Power Handling:
-
600~1200 watts
-
Maximum Current:
-
60 Amps
-
Background Light:
-
Green and brightness dimmable
-
Indicator Light:
-
Red when circuit is power on
-
Function:
-
Solid / strobe / flash light option
-
Fuction:
-
Control 8 auxiliary LED lights or electric devices
-
Circuit Breaker:
-
60 Amps resettable
-
Operation Momentary:
-
Yes
-
Waterproof:
-
Yes
Quick Details
-
Max. Voltage:
-
24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shenzhen Nova
-
Model Number:
-
SPS-8
-
Max. Current:
-
60A
-
Mechanical Life:
-
50000 Hours
-
Products name:
-
12V Electric 8 Gauge Toggle Switch Panel
-
Power Handling:
-
600~1200 watts
-
Maximum Current:
-
60 Amps
-
Background Light:
-
Green and brightness dimmable
-
Indicator Light:
-
Red when circuit is power on
-
Function:
-
Solid / strobe / flash light option
-
Fuction:
-
Control 8 auxiliary LED lights or electric devices
-
Circuit Breaker:
-
60 Amps resettable
-
Operation Momentary:
-
Yes
-
Waterproof:
-
Yes
Products Description
When you need absolute control over your vehicle's systems and accessories, consider adding a switch panel to cabin or cockpit. They're a great way to add safety and security to your car, allowing the driver to control auxiliary fans, fuel pumps, and more. Switch panel are also perfect for off road accessories like auxiliary LED light bars, LED work lights, winches, air compressors, etc.

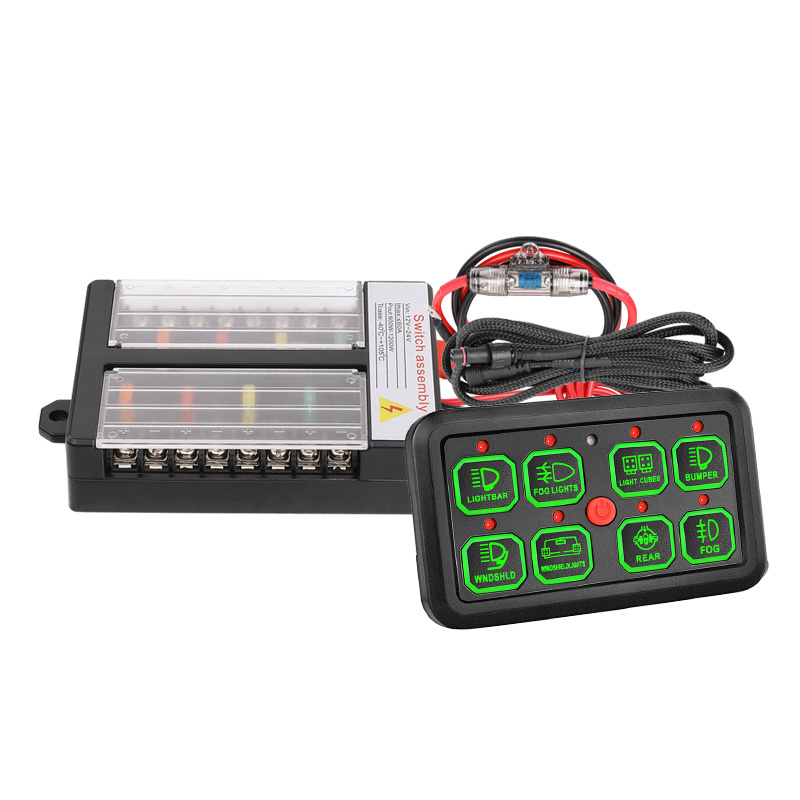

Shenzhen Nova is thrilled to offer this 8 gang switch panel with green backlighting. It operates at 12v or 24v with a 1,200 watts maximum power, enabling you to control 8 sets of LED lights and accessories together, which not only save space but provides a cleaner look as well.
The compact switch panel measures approx. 5x3 inch while the under hood mounted control box utilizes IGBT (Insulated Gate Bipolar Transistor) technology instead of bulky relays, and only has approx. 6x4 inch footprint.
Switch Panel Specification:
|
Product Name
|
Background Light Dimmable With Circuit Control Box Indicator Lights 12V Electric 8 Gauge Toggle Switch Panel
|
|
Function
|
Switched or momentary operation
|
|
Switch Quantity
|
8 Switches
|
|
Label Quantity
|
50 Labels, 5 of them are blank for DIY purpose
|
|
Input Voltage
|
12 - 24V
|
|
Power Handling
|
600 ~ 1200 Watts
|
|
Maximum Current
|
60 Amps
|
|
Backgroud Light
|
Green
|
|
Backlit Brightness
|
Dimmable
|
|
Indicator Light
|
Red indicator light when the circuit is on
|
|
Control Box Material
|
Aluminum + ABS plastic cover shell
|
|
Control Box Size
|
6x 4 Inch
|
|
Control Box Mount Solution
|
Flush mount or with aluminum bracket
|
|
Switch Panel Material
|
Alumimum
|
|
Switch Panel Size
|
5x3 Inch
|
|
Switch Panel Mount Solution
|
Mount with angle adjustable bracket
|
|
Warranty
|
12 Month since order received date
|
|
After-Sales Serive
|
Free replacement for quality damaged products
|
What's In The Box:
(1) Switch panel
(1) Control box
(1) Plug and play wire
(3) Mounting brackets
(50) Labels
Wire connections and screw accessories
OEM / ODM Service
Need more personalities on this
Background Light Dimmable With Circuit Control Box Indicator Lights 12V Electric 8 Gauge Toggle Switch Panel
? As a factory and manufacturer, Shenzhen Nova offers you with different options, including:
1, ON/OFF red button can be customized with customer's company LOGO
2, Green backlit color can be customized into blue or others
1, ON/OFF red button can be customized with customer's company LOGO
2, Green backlit color can be customized into blue or others
3, Length of 18AWG red wire is 30 inch which can be extened into the length you need
4, Label sticker on the control box can be printed with your designs
5, Plug & play wire and connections can be extended to the length you need
6, Label sheet can also customized with your design
7, Color box can be printed with customer's design
8, Instruction sheet can be translated into your language
