Quick Details
-
Brand Name:
-
Leadcrete
-
Model Number:
-
BW90/3
-
Place of Origin:
-
Henan, China
-
Horsepower:
-
90l/min
-
Power:
-
5.5Kw, Electric
-
Standard or Nonstandard:
-
Standard
-
Pump Type:
-
hydraulic triplex drill mud pump
-
Driving force:
-
hydraulic motor or electric or diesel
-
Max flow:
-
90l/min
-
Cylinder diameter:
-
65mm
-
Stroke:
-
50mm
-
Usage:
-
triplex mud pumps for sale
Quick Details
-
Application:
-
wastewater treatment
-
Pressure:
-
3Mpa, Low Pressure
-
Voltage:
-
380V
-
Brand Name:
-
Leadcrete
-
Model Number:
-
BW90/3
-
Place of Origin:
-
Henan, China
-
Horsepower:
-
90l/min
-
Power:
-
5.5Kw, Electric
-
Standard or Nonstandard:
-
Standard
-
Pump Type:
-
hydraulic triplex drill mud pump
-
Driving force:
-
hydraulic motor or electric or diesel
-
Max flow:
-
90l/min
-
Cylinder diameter:
-
65mm
-
Stroke:
-
50mm
-
Usage:
-
triplex mud pumps for sale

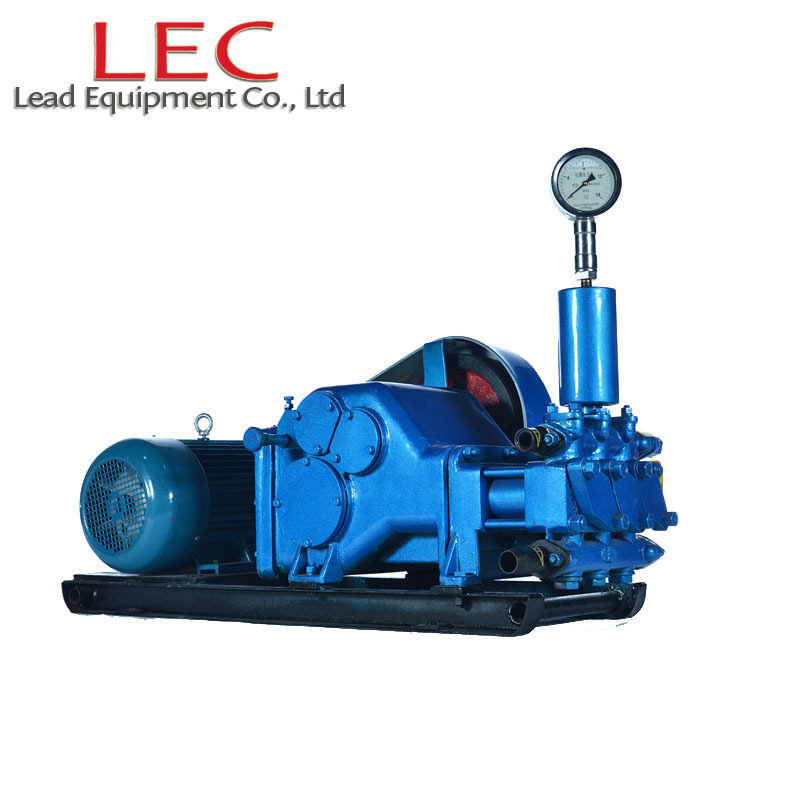

BW90 3 For sale hydraulic small triplex mud pump
BW series mud pump for drilling is widely used in mining, drilling, coal, railway, highway, water conservancy and hydropower, bridges, high-rise buildings, foundation reinforcement works.
The pump has the advantages of small volume, light weight, long service life, simple operation, reliable and flexible, general and standard parts and other characteristics, light and flexible, easy to move. It can be used in railway, water, metallurgy, construction, geological industry deep hole 1000m geological exploration, engineering exploration with the pump.
BW90/3 triplex mud pumps for sale
|
Model |
BW90/3 mud pump |
|
Type |
Horizontal three-cylinder reciprocating single acting piston pump |
|
Cylinder diameter (mm) |
65 |
|
Stroke (mm) |
50 |
|
Pump speed (times/min) |
204 144 107 |
|
Flow (l/min) |
90 65 50 |
|
Pressure (Mpa) |
1 2 3 |
|
Power (Kw) |
5.5 |
|
Shape size (mm) |
1220*590*550 |
|
Weight (kg) |
208 |
Main Features of triplex mud pumps for sale:
Compact structure, light weight, small volume, beautiful appearance, is driven by a hydraulic motor, electric power or diesel engine.
BW series slurry pump is horizontal triplex grout pump with high stability and high pressure.
Mud pump has gear shift to adjust the flow, large output capacity, simple operation.
High-quality pump parts, less wearing parts, long service life, low construction cost.
It has fast suction-discharge speed, high pump efficiency.
Mud pump has less noise and dust, environmental operation.
