Quick Details
-
Model Number:
-
BS1
-
Brand Name:
-
Hikelok
-
Product name:
-

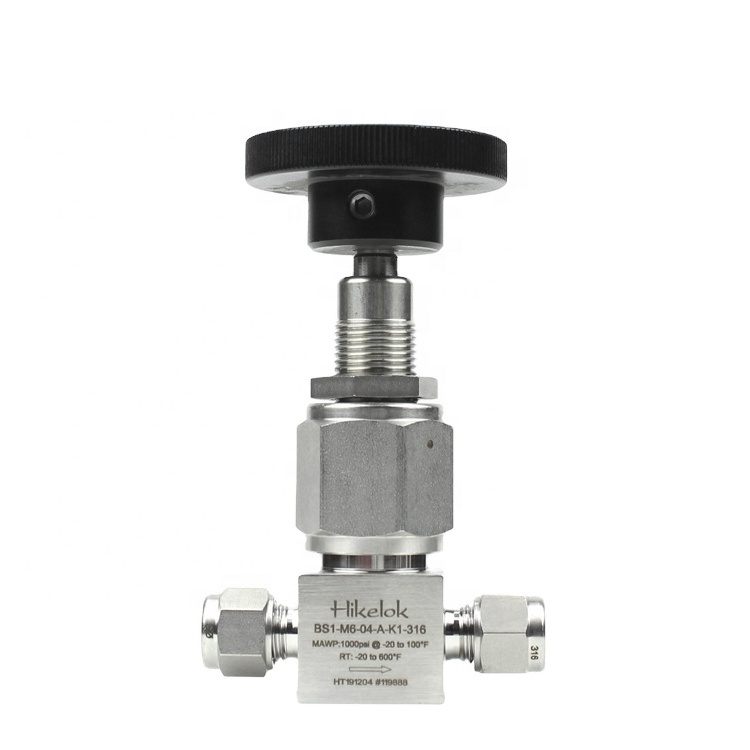

bellows-sealed valve
-
Body material:
-
316, 304 stainless steel
-
Working pressure:
-
maximum 1000psig
-
Working Temperature:
-
-20℉ to 900℉ (-28℃ to 482℃)
-
Handle:
-
black Aluminum or others
-
orifice:
-
0.16in. to 0.787in.(4.1mm to 20mm)
-
Tip material:
-
same as body/PCTFE
-
Tip type:
-
Blunt;Ball;Regulating
-
certificate:
-
ISO 9001:2015;CE;ABS;TUV
-
Certification:
-
ISO9001;CE;TUV;ABS
Quick Details
-
Port Size:
-
1/8 in. to 3/4 in., 6 mm to 12 mm
-
Warranty:
-
1 year
-
Place of Origin:
-
Sichuan, China
-
Model Number:
-
BS1
-
Brand Name:
-
Hikelok
-
Product name:
-
bellows-sealed valve
-
Body material:
-
316, 304 stainless steel
-
Working pressure:
-
maximum 1000psig
-
Working Temperature:
-
-20℉ to 900℉ (-28℃ to 482℃)
-
Handle:
-
black Aluminum or others
-
orifice:
-
0.16in. to 0.787in.(4.1mm to 20mm)
-
Tip material:
-
same as body/PCTFE
-
Tip type:
-
Blunt;Ball;Regulating
-
certificate:
-
ISO 9001:2015;CE;ABS;TUV
-
Certification:
-
ISO9001;CE;TUV;ABS
Product Description
Feature:
◈ Working temperature from -20℉ to 900℉ (-28℃ to 482℃)
◈ Flow coefficients (Cv) from 0.12 to 1.2
◈ Variety of end connections
◈ 316 S.S., brass and monel 400 materials
◈ Panel and bottom mounting
◈ Bar, round handle are available
◈ Precion-formed metal bellows providers reliable seal
◈ Nonrotating stem tip: spherical, conical and regulating
◈ Gasket body to bellows seal is standard, weld seal also available
◈ Replaceable bellows and stem assembly
◈ Every valve is tested with helium for 10s to a maximum leak rate of 4 ×10-9 std cm3/s
Dimensions：
Ordering Information
Product packaging
Certifications
