Quick Details
-
Horsepower:
-
< 150hp
-
Cargo Tank Type:
-
Van
-
Gross Vehicle Weight:
-
4995
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Online support, Free spare parts
-
Brand Name:
-
SINOTRUK
-
Place of Origin:
-
Shandong, China
-
Size:
-
7600X2400X2600mm
-
Cargo Tank Dimension:
-
5995X2400X2650mm
-
Drive type:
-
4X2 LHD/RHD
-
Product name:
-
Light Duty Cargo Truck
-
Color:
-
Yellow Red White Optional
-
Engine:
-
WD615
-
Certificate:
-
ISO CCC
-
Product Keywords:
-
Tractor Truck
-
Transmission:
-
HW19710
-
Chassis brand:
-
SIONTRUK HOWO
-
Type:
-
China Light Trucks
-
Name:
-
Sinotruk 4x2 Light Truck
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 3
-
Market Segement:
-
Express transportation
-
Horsepower:
-
< 150hp
-
Cargo Tank Type:
-
Van
-
Gross Vehicle Weight:
-
4995
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Online support, Free spare parts
-
Brand Name:
-
SINOTRUK
-
Place of Origin:
-
Shandong, China
-
Size:
-
7600X2400X2600mm
-
Cargo Tank Dimension:
-
5995X2400X2650mm
-
Drive type:
-
4X2 LHD/RHD
-
Product name:
-
Light Duty Cargo Truck
-
Color:
-
Yellow Red White Optional
-
Engine:
-
WD615
-
Certificate:
-
ISO CCC
-
Product Keywords:
-
Tractor Truck
-
Transmission:
-
HW19710
-
Chassis brand:
-
SIONTRUK HOWO
-
Type:
-
China Light Trucks
-
Name:
-
Sinotruk 4x2 Light Truck

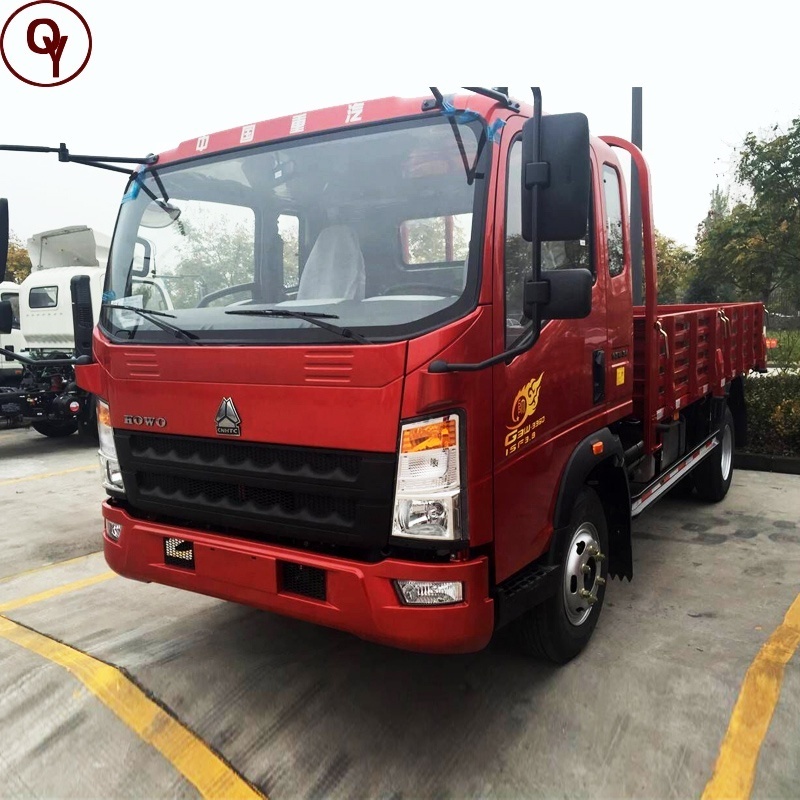

Sinotruk New Design Howo Light Cargo Truck 2T/3T/5T/6T/8T/10T
Our Main Products Heavy Trucks and Construction Machinery. include Howo tractor trucks, dump trucks, trailer truck,Fire trucks, water tank trucks, concrete mixer trucks, special trucks,truck parts and Motor grader,wheel loader, roller loader. we can supply these for our clients with good quality and competitive price.
Product Description
Specification
|
SINOTRUK HOWO 4X2 LIGHT CARGO TRUCK SPECIFICATION
|
|
|
||
|
Truck Model
|
|
ZZ1047D3415C145(Left Hand Drive )
|
||
|
Truck Brand
|
|
SINOTRUK-HOWO
|
||
|
Dimension (LxWxH) (unloaded)mm
|
|
5995×2180×2550
|
||
|
Cargo body
|
|
4200 x2050x400 mm
|
||
|
Cargo body thickness (mm)
|
|
Bottom:3 mm, side:1.5 mm
|
||
|
Approaching angle/ Departure angel (°)
|
|
20/18
|
||
|
Overhang (front/rear) (mm)
|
|
1160/1475
|
||
|
Wheel base (mm)
|
|
3360
|
||
|
Max. Driving speed (km/h)
|
|
95
|
||
|
Front axle loading capacity (kg)
|
|
2700
|
||
|
Rear axle loading capacity(kg)
|
|
7200
|
||
|
Curb weight (kg)
|
|
2455
|
||
|
Gross vehicle weight
|
|
4495
|
||
|
Cab
|
2080 single cab,with A/C
|
|
||
|
Engine Model
|
Model
|
YUNNEI brand,YN4102QBZL, 116hp
|
||
|
|
Rated Power(kw/rpm)
|
85/3000
|
||
|
Clutch
|
Diaphragm spring clutch,single plate
|
|
||
|
Transmission
|
Model
|
WLY6T46,6F&1R
|
||
|
Brake system
|
Service brake
|
Dual circuit air brake
|
||
|
|
Parking Brake
|
Spring energy, compressed air operating on rear wheels
|
||
|
Steering system
|
Model
|
Power steering,Adjustable steering wheel.
(left hand driving) |
||
|
Front axle
|
(2.7T) Forging I-beam,Drum brake.
|
|
||
|
Rear axle
|
(7.2T), pressed welding axle housing Drum brake.
|
|
||
|
Tire
|
8.25R16 Radial tire 6 pieces with 1 Spare tire.
|
|
||
|
Electrical system
|
Type
|
SINOTRUK CAN bus system with VCO instrument
|
||
|
|
Voltage
|
24V,
|
||
|
|
Batteries
|
2*12V, 120 Ah
|
||
|
|
Alternator
|
28V/35A
|
||
|
|
Starter
|
4.5Kw
|
||
|
|
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light.
|
|
||
|
Oil Tank
|
120L fuel tank
|
|
||
|
Packing
|
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for
long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. |
|
||
1 Factory price, more competitive than agent price.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3
working days or 5 working days, and all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
