Quick Details
-
Model Number:
-
SK-820/840/860/880/8100/8120, SK-820/840/860/880/8100/8120
-
Dimension:
-
225(W)*125(D)*950(H)mm
-
Storage:
-
-
-
SNR:
-
-
-
Output Power:
-
30w-90w
-
Format:
-
-
-
The body material:
-
Aluminum alloy
-
Power:
-
30W 60W 90W 120W 150W 180W
-
Frequency Range:
-
150Hz~18kHz
-
Product Name:
-
Luxury column speaker
-
Speaker unit::
-
4" inch speaker
-
Cover range:
-
100 - 200 square meter
-
Keyword:
-
Waterproof Outdoor Hifi Column Speaker
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China, GuangDong, China
-
Brand Name:
-
Thinuna, Thinuna
-
Model Number:
-
SK-820/840/860/880/8100/8120, SK-820/840/860/880/8100/8120
-
Dimension:
-
225(W)*125(D)*950(H)mm
-
Storage:
-
-
-
SNR:
-
-
-
Output Power:
-
30w-90w
-
Format:
-
-
-
The body material:
-
Aluminum alloy
-
Power:
-
30W 60W 90W 120W 150W 180W
-
Frequency Range:
-
150Hz~18kHz
-
Product Name:
-
Luxury column speaker
-
Speaker unit::
-
4" inch speaker
-
Cover range:
-
100 - 200 square meter
-
Keyword:
-
Waterproof Outdoor Hifi Column Speaker

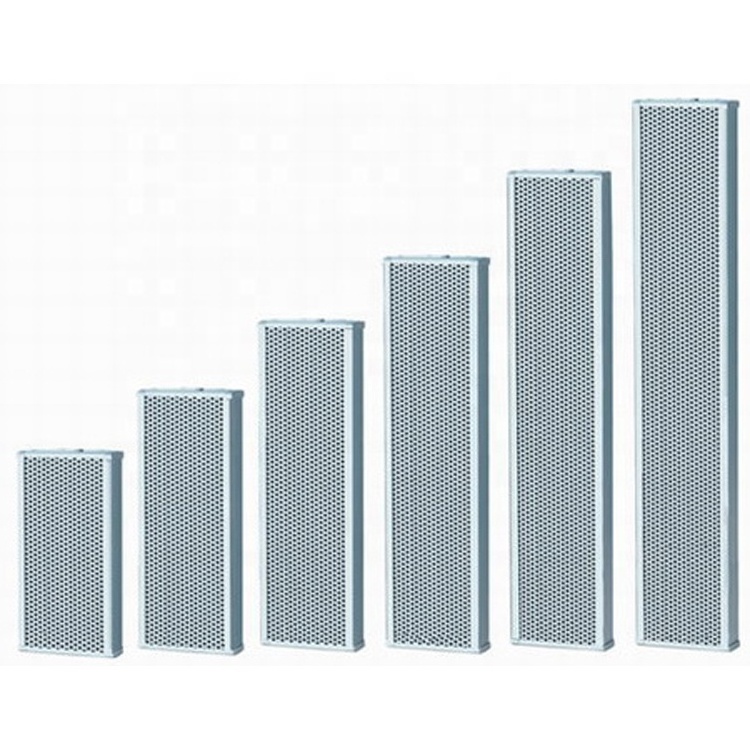

Thinuna SK Series Waterproof Outdoor Column Loudspeaker Column High End Audio Line Array Speaker Professional Column Speakers
Products Description
Descriptions
*
Dust-proof and waterproof grades in accordance with IEC529 IP55 standard.
*Large indoor and outdoor luxury column loudspeaker.
*Aluminum housing, corrosion resistance can withstand sunshine, rain, wind and snow.
*Good treble frequency response.
*Powerful unit.
*The ideal choice for squares, factories, playground, parking, terminal and transport sation.
*Use for constant voltage type public address system.
*With mounting bracket.
*Large indoor and outdoor luxury column loudspeaker.
*Aluminum housing, corrosion resistance can withstand sunshine, rain, wind and snow.
*Good treble frequency response.
*Powerful unit.
*The ideal choice for squares, factories, playground, parking, terminal and transport sation.
*Use for constant voltage type public address system.
*With mounting bracket.
|
Product Name
|
Luxury Outdoor Aluminum Array Column Speaker
|
|
|
|
|
|
|||||
|
Item No.
|
SK-820
|
SK-840
|
SK-860
|
SK-880
|
SK-8100
|
SK-8120
|
|||||
|
Rated power
|
100V : 20W 70V: 10W
|
100V : 40W 70V: 20W
|
100V : 60W 70V: 30W
|
100V : 80W 70V: 40W
|
100V : 100W 70V: 50W
|
100V : 120W 70V: 60W
|
|||||
|
Max power
|
30W
|
60W
|
90W
|
120W
|
150W
|
180W
|
|||||
|
Power selection
|
|
|
|
|
|
|
|||||
|
Nominal impedance
|
1KΩ, 2KΩ
|
250Ω, 500Ω
|
167Ω, 333Ω
|
125Ω, 250Ω
|
100Ω, 200Ω
|
83Ω, 167Ω
|
|||||
|
Crossover modes
|
Passive
|
Passive
|
Passive
|
Passive
|
Passive
|
Passive
|
|||||
|
Sound pressure level （1m/w）
|
90dB
|
96dB
|
98dB
|
102dB
|
102dB
|
102dB
|
|||||
|
Frequency response (-10dB)
|
150Hz~18kHz
|
150Hz~18kHz
|
150Hz~18kHz
|
150Hz~18kHz
|
150Hz~18kHz
|
150Hz~18kHz
|
|||||
|
Coverage angle (1KHz/-6dB)
|
150°
|
150°
|
150°
|
150°
|
150°
|
150°
|
|||||
|
Speaker component
|
LF driver 6.5'' ×1
|
LF driver 6.5″ ×1 HF driver 1″×1
|
LF driver 6.5″ ×2 HF driver 1″×1
|
LF driver 6.5″ ×3 HF driver 1″×1
|
LF driver 6.5″ ×4 HF driver 1″×1
|
LF driver 6.5″ ×4 HF driver 1″×1
|
|||||
|
Connection methods for different power
|
3 core connector; White wire for setting nominal impedance, Green wire for setting twice nominal impedance; Black wire for setting
COM |
|
|
|
|
|
|||||
|
Enclosure
|
Aluminum alloy body and paint spraying metal mesh
|
|
|
|
|
|
|||||
|
Operating temperature/humidity
|
-30°C ~ 60°C <95%
|
|
|
|
|
|
|||||
|
Dustproof and water-proof grade
|
Comply with IEC529 IP55 standard
|
|
|
|
|
|
|||||
|
Mounting Accessories
|
L-shaped mounting bracket orother optional type of bracket
|
|
|
|
|
|
|||||
|
Dimensions (cm)
|
22.5 x 12.5 x 35
|
22.5 x 12.5 x 35
|
22.5 x 12.5 x 73.5
|
22.5 x 12.5 x 95
|
22.5 x 12.5 x 116
|
22.5 x 12.5 x 138
|
|||||
|
Weight(each)
|
2.96 KGS
|
4.1 KGS
|
5.8 KGS
|
7.44 KGS
|
KGS
|
10.9 KGS
|
|||||
|
Grossy weight
|
3.72 KGS, 1 pc
|
4.9 KGS, 1pc
|
6.8 KGS, 1 pc
|
8.46 KGS, 1 pc
|
KGS, pcs
|
12.24KGS, 1 pc
|
|||||
|
Master carton size (cm)
|
24.5(W)x14.5(D)x40.5(H)
|
24.5(W)x14.5(D)x56.5(H)
|
245(W)x145(D)x775(H)
|
245(W)x145(D)x992(H)
|
|
245(W)x145(D)x1420(H)
|
|||||
|
Applications
|
Plazas,factories, playgrounds,parking lots, docks,stations
|
|
|
|
|
|
|||||
Application Cases
Suitable occasions:
Airports, Bus stations, Hotels, Office buildings, Gyms, Villas, Homes, Schools, Bar spas,KTV ,Saunas, Parks.......
