Quick Details
-
Application:
-
Commerical and Home window glass
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
west
-
Model Number:
-
Smart Film
-
Voltage:
-
AC 48V ~ AC 65V
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, Others
-
Application:
-
Commerical and Home window glass
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
west
-
Model Number:
-
Smart Film
-
Voltage:
-
AC 48V ~ AC 65V
Product Description

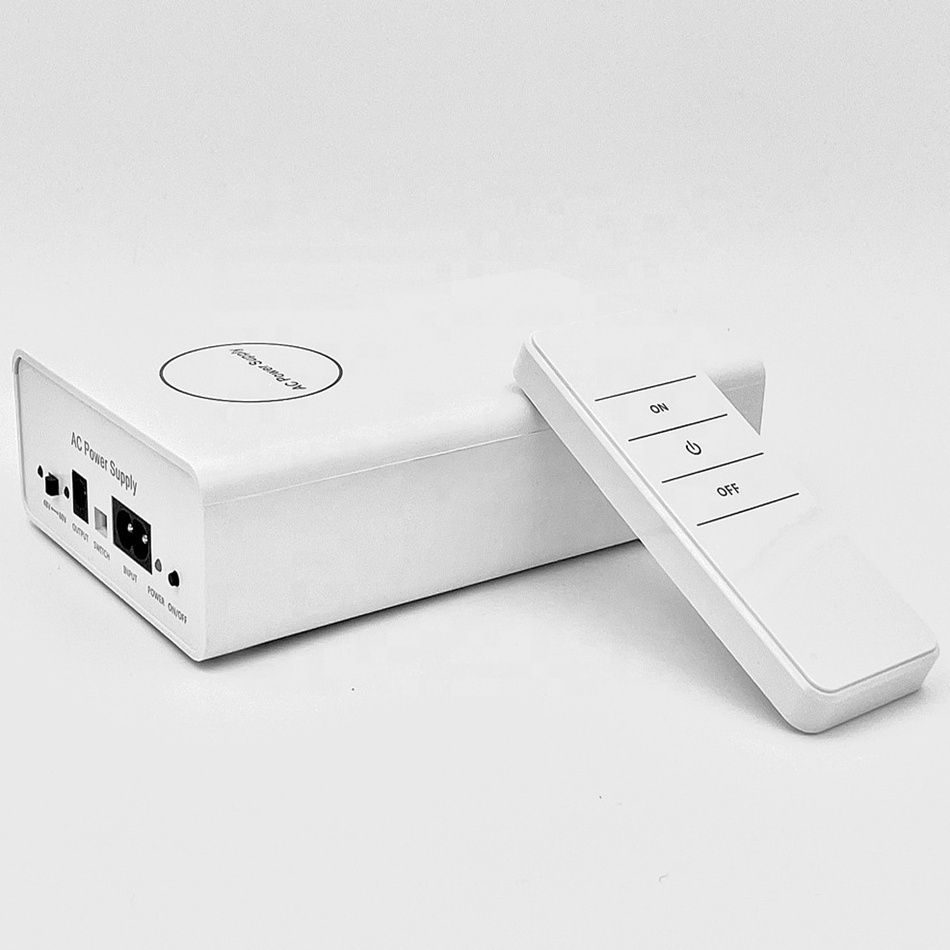

Smart Film / Smart Glass adapter
WEST
Series Smart Film transformer can realize the film from clear to opaque by Switch control, wireless remote control, reliable switch output, long switch life, with over-voltage protection, overload protection, overcurrent protection, can be used in high different field. WEST Series transformer is small size, light weight, easy installation, greatly improve the intelligent level of smart glass controller.
15-100W Series Power
Supply
200-500W Series Power
Supply
Sample Power Supply
Product Paramenters
|
Transformer Specification Parameters
|
|
|
|
|
||||
|
|
15W
|
2 Sq.m
|
75*25*125mm(W*D*H mm)
|
0.35kg
|
||||
|
|
30W
|
4 Sq.m
|
88*30*150mm(W*D*H mm)
|
0.8kg
|
||||
|
|
50W
|
6 Sq.m
|
110*46*179mm(W*D*H mm)
|
1.2kg
|
||||
|
|
100W
|
12 Sq.m
|
110*46*179mm(W*D*H mm)
|
1.6kg
|
||||
|
|
200W
|
20 Sq.m
|
255*60*158mm(W*D*H mm)
|
5.7kg
|
||||
|
|
300W
|
30 Sq.m
|
255*60*158mm(W*D*H mm)
|
5.7kg
|
||||
|
|
500W
|
40 Sq.m
|
255*60*158mm(W*D*H mm)
|
6kg
|
||||
|
Input voltage
|
220-240VAC or 110VAC
|
|
|
|
||||
|
Output voltage
|
46VAC/60VAC
|
|
|
|
||||
|
Protective cover
|
Yes
|
|
|
|
||||
|
Working temperature
|
-20 ℃ - 60 ℃
|
|
|
|
||||
|
Remote Controller Specification Parameters
|
|
|
|
|
||||
|
Frequency
|
433mhz
|
|
|
|
||||
|
Battery
|
1x 12vdc
|
|
|
|
||||
|
Function
|
On/off
|
|
|
|
||||
|
Remote control distance
|
>25m
|
|
|
|
||||
|
Size
|
120 x46x14mm
|
|
|
|
||||
|
Weight
|
80g
|
|
|
|
||||
|
Complementary Of Transformer
|
|
|
|
|
||||
|
Input voltage limits
|
210~250 V
|
|
|
|
||||
|
Network frequency limits
|
47~63 Hz
|
|
|
|
||||
|
Input voltage tolerance
|
+/-15 V
|
|
|
|
||||
|
Efficiency
|
98%
|
|
|
|
||||
|
Material
|
100% copper
|
|
|
|
||||
|
Power dissipation in W
|
1W,2W
|
|
|
|
||||
|
Output sustained overvoltage
|
4 % (no load, hot state)
|
|
|
|
||||
|
Maximum voltage drop at rated load
|
0.50%
|
|
|
|
||||
|
No load losses
|
0.5W
|
|
|
|
||||
|
Output protection type
|
Against overload, protection technology
|
|
|
|
||||
|
|
Against overvoltage, protection technology
|
|
|
|
||||
|
|
Against short-circuits, protection technology
|
|
|
|
||||
|
|
For input connection: screw type terminals, connection capacity: 2mm² AWG 14
|
|
|
|
||||
|
|
For output connection: screw type terminals, connection capacity: 0.2 mm² AWG 23
|
|
|
|
||||
|
Fixing mode
|
operating position: horizontal， vertical
|
|
|
|
||||
|
Operating altitude
|
3000m
|
|
|
|
||||
|
Electrical insulation class
|
Class B
|
|
|
|
||||
|
Warranty
|
18months
|
|
|
|
||||
|
|
1pcs transformer
|
|
|
|
||||
|
|
1pcs Remote controller
|
|
|
|
||||
|
|
1pcs Input cable
|
|
|
|
||||
|
|
1pcs Output cable
|
|
|
|
||||
|
|
1pcs Wall Switch cable
|
|
|
|
||||
Controller Termerial
Wires Dirgram
How to pair with remote control
Confirm that the wires connected correctly at both ends.
• Make sure your battery isn't low and replace if needed.
•Close the transformer
•Long press Upper and middle button together and Open Transoformer
•Release the buttons immediately once the smart film become transparent
•It was paired success now
Precautions:
1. The installation position of the controller should not be water and away from the heat source.
2. Prohibit the use of more than the specified input voltage, rated output power.
3. All wiring operations must be cut off power
4. Before connecting the smart film and controller, the output voltage must be confirmed at no load.
5. All terminals must be strictly in accordance with the wiring diagram wiring, otherwise it will cause serious damage to the controller and smart film.
6. Please check the battery power of the remote control when the remote control is not stable or malfunction, if the battery power is insufficient, then to replace the battery, if the battery power is sufficient, it may be caused by electromagnetic interference nearby, please check the source of interference.
Warranty
The Seller guarantees that the product will meet the technical specs . In the case of product failing to perform against the spec, the Seller will Share the related expenses . In addition, the Seller provides Two-year after-sales. This product warranty extends to the Buyer and its final customer of the products covered in this contract. The product warranty starts from the date of arrival at the destination, and ends at the end of the 24th month from the start date.
In case that the product requires warranty service or maintenance, the following protocols will be followed:
1. For simple repairs that can be handled by the final customer with replacement parts alone, the Seller will send necessary replacement parts to the final customer.
2. If the problem is more complicated and the customer can find a local repair person to take care of it at reasonable cost, the Seller is willing to share for the parts and labor, provided that the customer can
a) establish the need of services via third party evaluation and certification;
b) obtain prior approval of cost from the Seller before commencing the service.
3. In case that the repair needs cannot be handled locally, the product can be send to the seller for maintenance.
The foregoing warranty does not apply to the damages caused by reasons other than product quality, including but not limited to the following:
1. The product is incorrectly or improperly repaired by the customer;
2. Unauthorized modification or misuse;
3. Operate the product outside the designated environment or install and repair the product at an improper locale.
4. The damage caused by the circuit self-installed by the customer;
5. The product model or machine body serial number is altered, deleted or illegible;
6. The damages are caused by accidents, including but not limiting to lightening, water penetration and fire disaster, etc.
Product Application
Large command , control dispatch center office , meeting room, negotiation room , special hospital room , operating room , villa toilet , shower room , window of entertainment room , Isolation , screen , police station , courts , prisons , jewelry shops , museums , bank windows , curtain walls , counter , isolation , large special screen projection screen, etc..
Office Hotel
Bank Bathroom
Shopping Plaza
Projection Screem
Company Introduction
Shandong West Glass Products Co., Ltd. was established in 2012 Located at Shandong China.For more than 8 years we’ve been a trusted partner for brands who needed promotional products.
We mainly manufactures smart film, smart glass, photochromic film, window film etc. Our products exported more than 50 countries countries because of the brilliant quality ,competitive price and excellent after sale service.
We are looking forward to forming successful business relationships with you around the world in the near future.
Our Services & Strength
Our products may not be the cheapest, and the product parameters are not the best of similar products in the world. However, our pursuit of continuous optimization and upgrading of products and continuous improvement of customer service experience has always existed.
We have been pursuing better products, make smart film clearer and clearer,make the photochromic film’s color changing range and stability become better and better.
We are extremely responsible for every product we produced , and only after we complete a full audit and can guarantee that it fits rigorous international standards.
Our goal is to provide our customers with the most amazing products with the best service.
Product Packing
We are expert at exporting package, no matter carton package or wooden case package. And we cooperate with reliable express and forwarder, so during transportaion protection also very good.
Normal box packing ( 160 cm*14 cm*14 cm )
Inside rolls of 1.52*30 m ,1.52*60 m , etc
Large box packing ( 165 cm*42 cm*45 cm )
Inside rolls of 52*300m , 1.52*600m , etc
Customize box packing
Box can be customized on request
Box can be customized on request
Customize
wooden pallet
Wooden pallet can be customized on request
Wooden pallet can be customized on request
Recommend Products
FAQ
1、 What is your sample policy?
We can provide free samples of A4 paper size , freight should be paid from buyer.
2、 Does this need to be installed by an electrician?
NO , We can provide you a complete closed system that is ready to install with a plug , it can be DIY by yourself. And
we will offer a complete installaion kit if needed , meanwhilewe , supply instruction video for customer preview.
If you would like to hire an electrician to achieve your goal that is your own decision.
3、 Does it block the UV harmful rays?
YES . It blocks over 98% of the harmful UV rays in both its energized and non-energized state.
4、 Do you test all your goods before delivery?
There are 3 repeating inspections , the first is during production , the second is during packing , the last is before shipment . We can assure every product we ship out is standard-compliant .
5、 How long will it take for production and delivery ?
This depends on Material size , total qty order and geographic delivery place . For expedited sample orders , we can ship as fast as 3 working days from payment confirmation .
If for mass production , it will only last for 7-10 working days approximately .
6、 What are your shipment terms?
We deliver it by air/express transportation .
Customer clear custom , release and deliver to final destination .
Customer clear custom , release and deliver to final destination .
7、 How do you make our business long-term and good relationship?
First we have strong production capacity , there is stable delivery time , moreover , accompany with the strict inspection, order quality is equal even improved , also good R&D ability makes the cooperation would be continuously .
The last but not least , there is a professional sales team , who know what and how to do for you . T
ogether , we could create the market .
