Quick Details
-
Brand Name:
-
B&TON
-
Use:
-
FTTH
-
Data Rate:
-
10/100/1000Mbps
-
Fiber Connector:
-
SC/LC
-
Ethernet Port:
-
8 RJ45
-
Fiber Port:
-
2 SFP
-
Distance:
-
0~120km
-
Color:
-
Black
-
Brand:
-
BTON
-
Warraty:
-
3 Years
-
Product name:
-
Industrial Managed 8RJ45 2SFP switch
Quick Details
-
Type:
-
Enterprise Switch
-
Model Number:
-
BT-958GE-2SFP
-
Place of Origin:
-
Guangdong, China, China
-
Brand Name:
-
B&TON
-
Use:
-
FTTH
-
Data Rate:
-
10/100/1000Mbps
-
Fiber Connector:
-
SC/LC
-
Ethernet Port:
-
8 RJ45
-
Fiber Port:
-
2 SFP
-
Distance:
-
0~120km
-
Color:
-
Black
-
Brand:
-
BTON
-
Warraty:
-
3 Years
-
Product name:
-
Industrial Managed 8RJ45 2SFP switch

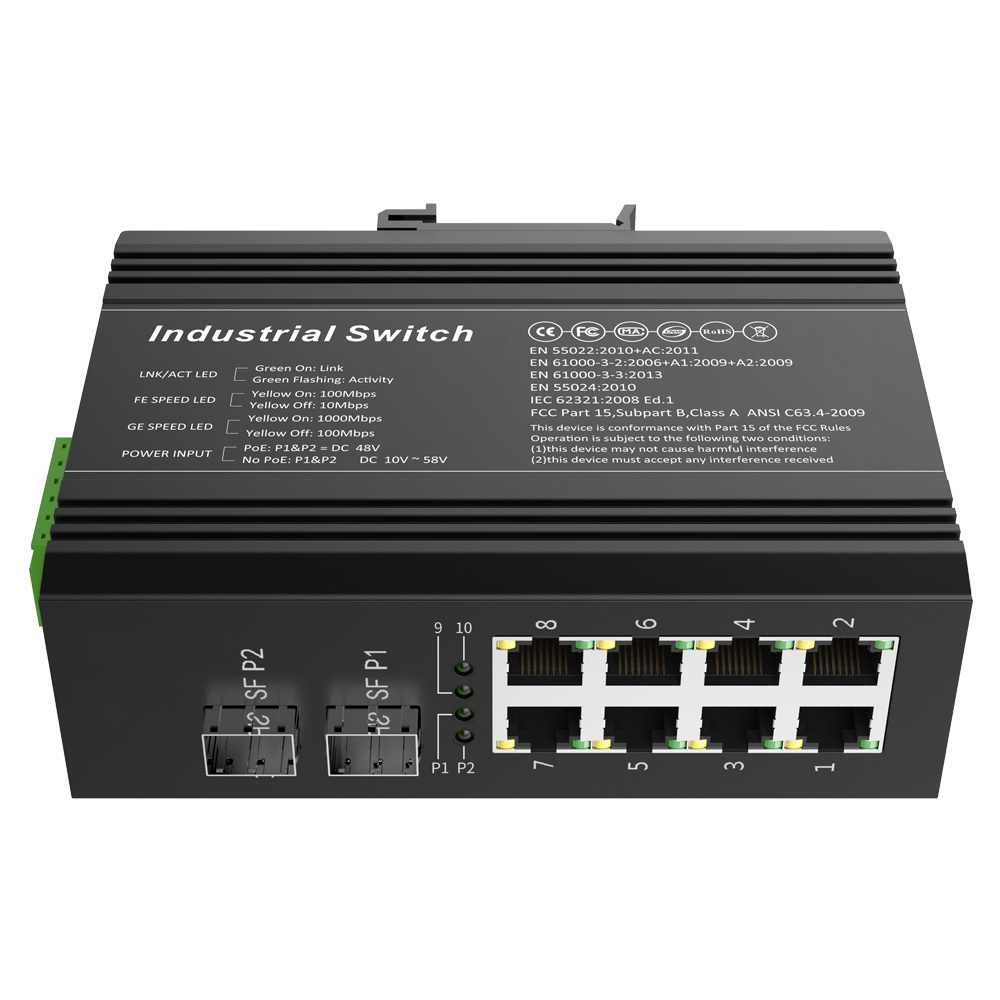

Din Rail 8 Ports Gigabit Ethernet 8 Gigabit SFP port Managed Industrial ethernet Switch
This series of products adopts industrial rail design. The 8*Gigabit Ethernet + 2*Gigabit SFP network switch is a new generation of multi-service access network management Gigabit redundant Ethernet switch. It has the characteristics of high integration, rich functions, simplicity and convenience, and represents the industry highest level. Contains 8 Gigabit ethernet ports and 8 Gigabit optical ports, especially suitable for occasions with large data streams such as video transmission. Supports rich Layer 2 management protocols required for industrial switch applications, supports ITU G.8032 redundant ring network protocol, and forms cascaded, single-ring, tangent-ring networks and other topological structures. The self-healing time is less than 20ms, ensuring The real-time and stability of the network. The switch adopts mature technology and open network standards, adapts to low temperature and high temperature, has strong anti-electromagnetic interference, anti-salt spray, anti-seismic and anti-shake, meets the harsh working environment requirements of industrial sites, and provides efficient, reliable and fast communication for the industrial Internet of Things. solution;
Features
|
Protocol Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at |
|
Flow Control |
IEEE802.3x flow control, back press flow control |
|
Switching Performance |
Forwarding Rate: 14.88Mpps Transmission Mode : Store and Forward Packet Buffer Size: 2M Backplane Bandwidth: 20Gbps MAC Table Size: 16K Delay Time: < 4μs |
|
Ethernet Port |
10/100/1000Base-T(X) auto speed control, half/full duplex and MDI/MDI-X auto-adaptation |
|
Fiber Port |
1000Base-X SFP Slot |
|
PoE |
Pin-out: 1/2(+), 3/6(-), IEEE802.3af max 15.4w, IEEE802.3at max 30w. |
|
LED Indicator |
Power Indicator: PWR Port Indicator: LINK / ACT |
|
Power Supply |
Input Voltage: DC48-58V Connector: 6 bit 5.08mm removable terminal block Full Load: <6W Protection Mechanism: overload protection , reverse connection protection, redundancy protection |
|
Mechanical Structure |
Shell: IP40 protection, aluminum alloy housing Dimension: 143*104*48mm( L*W*H ) Weight: 550g Installation: DIN-Rail mounting, wall mounting |
|
Operating Environment |
Operating Temperature: -40-85°C Storage Temperature: -40-85°C Ambient Relative Humidity: 5%-95% (non-condensing) |
|
Industry Standards |
EMI:FCC Part 15 Subpart B Class A, EN 55022 Class A EMS:EN61000-4-2 (ESD), Level 4 at 15kV(Air), 8kV(Contact) EN61000-4-3 (R/S), Level 3 at 10V/m EN61000-4-4 (EFT), Level 4 at 4kV(Power Port), 2kV(Date Port) EN61000-4-5 (Surge), Level 4 at 4kV EN61000-4-6 (CS), Level 3 at 10V/m EN61000-4-8, Level 5 at 100A/m Shock:IEC 60068-2-27 Free Fall:IEC 60068-2-32 Vibration:IEC 60068-2-6 |
|
Certification |
CE, FCC, RoHS |
|
MTBF |
>100,000 Hours |
|
Warranty |
5-years |
