Quick Details
-
Size:
-
11900x2500x4050mm
-
Place of Origin:
-
Shandong, China
-
Function:
-
Transport Bulk Cement Powder
-
Suspension:
-
Mechanical Suspension
-
Axle:
-
3axle(customized)
-
Tire:
-
12R22.5 12PR
-
Color:
-
Custom's Requirement
-
Axle Brand:
-
FUWA Brand 13Ton Axle
-
Capacity:
-
30~60 Cbm
-
Tare Weight:
-
7000kgs
-
Floor:
-
Carbon steel Q235
-
Rim:
-
9.0-22.5
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
5500kg
-
Brand Name:
-
SINOTRUCK
-
Size:
-
11900x2500x4050mm
-
Place of Origin:
-
Shandong, China
-
Function:
-
Transport Bulk Cement Powder
-
Suspension:
-
Mechanical Suspension
-
Axle:
-
3axle(customized)
-
Tire:
-
12R22.5 12PR
-
Color:
-
Custom's Requirement
-
Axle Brand:
-
FUWA Brand 13Ton Axle
-
Capacity:
-
30~60 Cbm
-
Tare Weight:
-
7000kgs
-
Floor:
-
Carbon steel Q235
-
Rim:
-
9.0-22.5
Product Description

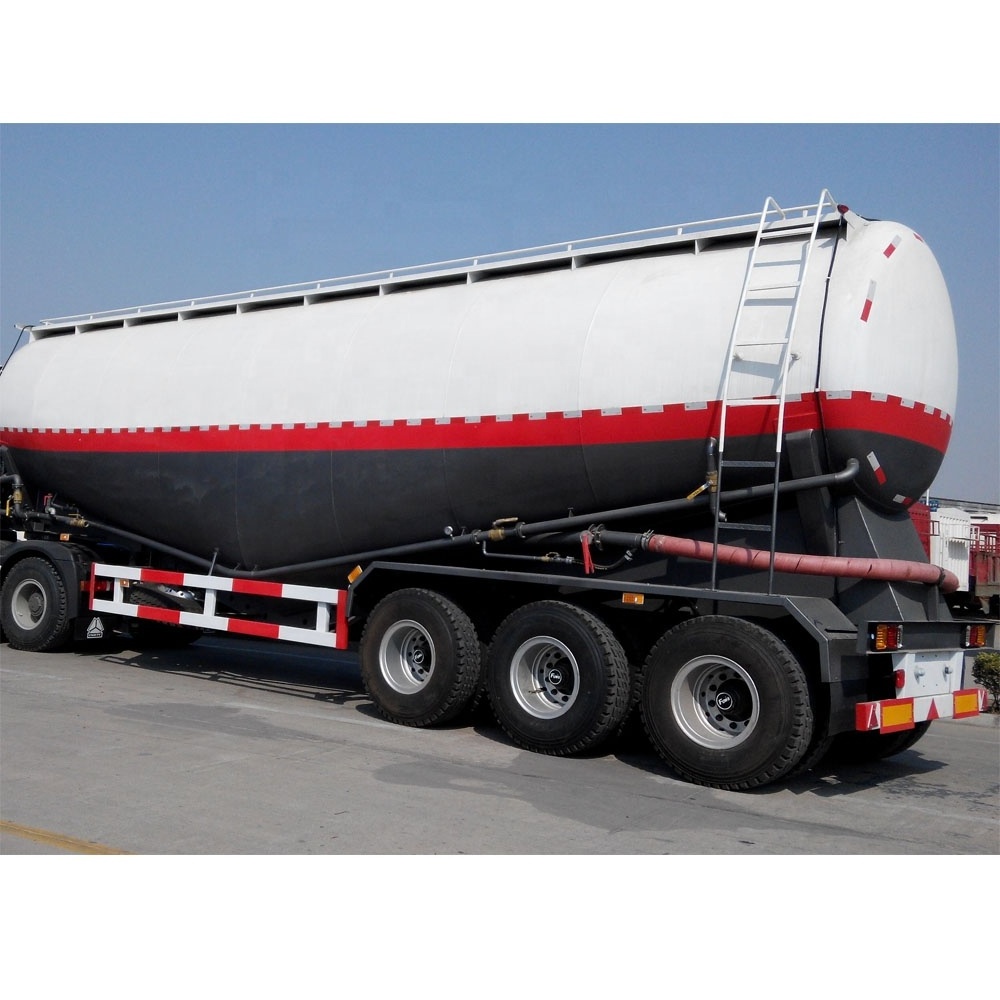

Powder material transport semi trailer is a special vehicle for the transportation of large quantities of dust materials (bulk cement), generally applicable to the implementation of the weight charge in strict accordance with the national provisions of the area, volume is generally between 35-45 square.
It is suitable for the transportation and air pressure unloading of dry powder materials with particle diameter less than 0.1mm such as fly ash, cement, lime powder and ore powder. When the vertical unloading height reaches 15m, the horizontal conveying distance can reach 5m.
Semi-hanging powder material carrier is to use its own engine power through the retractor to drive the car air compressor, the compressed air through
The pipe is fed into the gas chamber below the sealed tank to suspend the cement on the fluidized bed in a fluid state when the pressure in the tank reaches the maximum
When the value is fixed, open the discharge butterfly valve, and the fluid cement is transported through the pipeline flow.
Adopt China advanced technology, novel design, strong and durable. Air bag bearing capacity, unloading speed fast residue is small.
The synthetic tank has the characteristics of high overall strength, good rigidity, good pressure, good performance and so on.
The fluidized bed in the tank has scientific design and reasonable layout, which can effectively shorten the unloading time to 1.4T/min, improve the volume utilization rate of the tank, reduce the residual ash rate of 0.2%. The tank body of powder material carrier adopts double cone interior inclined horizontal structure, double pipe air intake, double barrel feeding, its unloading speed and residual rate are in line with the industry standard requirements.
|
SPECIFICATION Of SEMI TRAILER
|
|
|
||
|
Trailer Model
|
|
3 Axle Bulk Cement Semi Trailer
|
||
|
Overall Dimension(Lx W x H)（mm）
|
|
12000*2550*3950
|
||
|
Wheel tread(mm)
|
|
1840/1840
|
||
|
Wheelbase（mm）
|
|
6390+1310+1310
|
||
|
Loading Weight( KG)
|
|
50000
|
||
|
Total Weight(KG)
|
|
60000
|
||
|
Powder Tank
|
Geometrical Volume(m3)
|
55
|
||
|
|
Effective Volume(m3)
|
50
|
||
|
|
Loading Capacity
|
50ton
|
||
|
|
Tank Materials
|
Steel
|
||
|
|
Tank thickness(mm)
|
4
|
||
|
|
Tank front-rear head plate(mm)
|
6
|
||
|
Semi-trailer Details
|
Axle brand
|
FUWA 13TON Axle
|
||
|
|
Axle No
|
Three
|
||
|
|
Suspension type
|
Common Mechanical suspension
|
||
|
|
Number of axle
|
8/8/8 leaf spring suspension
|
||
|
|
Tire size
|
12R22.5
|
||
|
|
Tire quantity
|
12pieces
|
||
|
|
ABS
|
with
|
||
|
|
Brake air chamber
|
Four double and two single chamber
|
||
|
|
Support leg
|
28ton
|
||
|
|
Traction Pin
|
50mm or 90mm
|
||
|
Air Compressor
|
Manufacturer
|
China
|
||
|
|
Capacity
|
10m3/min
|
||
|
|
Pressure
|
0.2Mpa
|
||
|
Diesel Engine
|
Brand
|
Weichai brand
|
||
|
|
Compression ratio
|
17:1
|
||
|
Guard system
|
|
Guard on the top of tank
|
||
|
|
|
Side guard
|
||
|
|
|
Rear button guard
|
||
|
Painting
|
|
Color by customer’s requirement
|
||
|
Packing
|
|
Polish with wax before shipping
|
||
|
Delivery way
|
|
Transfer to China port, and carry by ro-ro ship, the freight cost depends on the volume.
|
||
Packing & Delivery
Trucks are polished and polished before they leave the factory.
We mainly deliver goods by sea, including bulk cargo, roll-on roll-off, frame, container and other large cargo transport mode.
It is in Tianjin port, Qingdao port, Lianyungang port and other large Chinese ports.
Production Process
High quality
Semi-automatic production process, every step of production is very precise.
It makes high quality trucks and semitrailers
