support bi-direction energy measuring
with multi-tariff function
with inbuilt relay, remotely control off/on
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
KY
-
Model Number:
-
KYM7361C
-
Accuracy Class:
-
class 1 or class 0.5s
-
Output Voltage:
-
L-N: 85 to 275V AC; L-L: 85 to 480V AC
-
Operating Temperature:
-
'-25 to +55℃
-
Dimensions:
-
98*126*80mm
-
Product name:
-
three Phase Electric Meter
-
model:
-
KYM7361C
-
Operational voltage:
-
L-N: 85 to 275V AC; L-L: 85 to 480V AC
-
Max current:
-
80A
-
connect type:
-
direct connect
-
measure:
-
bi-directional energy
-
tariff:
-
multi-tariff
-
Communication:
-
zigbee
-
Installation method:
-
din rail type
-
Measurement accuracy:
-
class 1 or class 0.5s
Quick Details
-
Phase:
-
Three Phase
-
Measuring Energy Range:
-
0-99999
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KY
-
Model Number:
-
KYM7361C
-
Accuracy Class:
-
class 1 or class 0.5s
-
Output Voltage:
-
L-N: 85 to 275V AC; L-L: 85 to 480V AC
-
Operating Temperature:
-
'-25 to +55℃
-
Dimensions:
-
98*126*80mm
-
Product name:
-
three Phase Electric Meter
-
model:
-
KYM7361C
-
Operational voltage:
-
L-N: 85 to 275V AC; L-L: 85 to 480V AC
-
Max current:
-
80A
-
connect type:
-
direct connect
-
measure:
-
bi-directional energy
-
tariff:
-
multi-tariff
-
Communication:
-
zigbee
-
Installation method:
-
din rail type
-
Measurement accuracy:
-
class 1 or class 0.5s
Product Description
KYM7300C series products are three phase multi-function din rail installation energy meter. This series of products can support a variety of electric parameter measurement analysis, such as voltage, current, the four quadrant power parameters, power factor, etc., It also can support tuya wifi, tuya zigbee and also can do modbus communication type, the in-built relay can remotely control off/on the device. The
Characters as below:
1. max current:80A DC.
2. Standard 7-modulus width,TH35-7.5 type rail installation
3. Multi-function parameter measurement, providing voltage, current, active power, reactive power, apparent power, power factor, phase Angle, etc
4. Support bi-directional electric energy metering, provide monthly electricity consumption statistics for the last 12 months, and daily electricity consumption statistics for the last 31days
5. In-built relay, support remote control and prepaid management control,providing latest 50 times opertation records,10 SOE event records
6. Support the power consumption parameter monitoring and alarm function
7. Support WIFI,LoRa,NB-IoT,4G etc. wireless communication way
8. Support 1 pulse output, 1 RS485 communication
Products Display

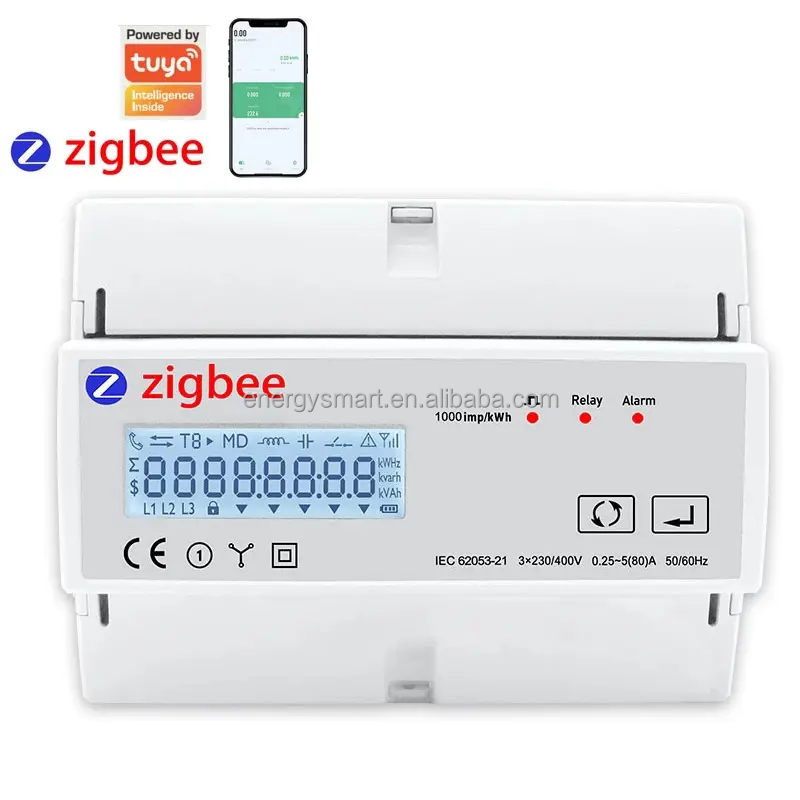

Tuya three phase smart energy meter
this three phase energy meter carrying tuya platform, can connect with
tuya app and tuya software
, communication can choose
WIFI,Zigbee,NB,4G
Products Application
Specification
|
|
Rate voltage (Un)
|
3*110/190V or 230/400V AC
|
|
|
Operational voltage
|
L-N: 85 to 275V AC; L-L: 85 to 480V AC
|
|
|
Maximum current(Imax)
|
80A
|
|
|
Pulse constant
|
1000 imp/kWh
|
|
|
Display
|
LCD with backlight
|
|
|
Maximum reading of energy
|
999999.99 kWh/kVarh
|
|
|
Measure type
|
Three phase four wire
|
|
|
Voltage, Current
|
±0.5%
|
|
|
Active power
|
±1.0% or 0.5%
|
|
|
Reactive power
|
±2.0%
|
|
|
Apparent power
|
±1.0%
|
|
|
Active energy
|
±1.0% or 0.5%
|
|
|
Reactive energy
|
±2.0%
|
|
|
Power factor
|
±1.0%
|
|
|
Frequency
|
±0.2%
|
|
Environmental Characteristics
|
Operating Temperature
|
'-25 to +55℃
|
|
|
Storage Temperature
|
'-40 to +80℃
|
|
|
Humidity
|
< 90%, non-condensing
|
|
Communications
|
Interfaces standard and protocols
|
2-wire RS485, Modbus RTU
|
|
|
Wireless
|
WIFI, LoRa, NB-IoT, 4G，Zigbee
|
Products size and Wiring drawings
Packing & Delivery
Package and be customized or our standard
Delivery time: within 10 days after payment
