Quick Details
-
Brand Name:
-
Yunyi
-
Model Number:
-
UHZ10
-
Name::
-
Hot Sell tank level gauge magnetic float level sensor in China
-
Measuring range::
-
300 ~ 6000mm
-
Working temperature::
-
≤150 ℃
-
Load capacity::
-
0-600
-
Resolution::
-
± 10mm (common), ± 20mm, ± 5mm
-
working pressure::
-
1.6MPa, 2.5MPa, 4.0MPa
-
medium density::
-
≥0.5g / cm3
-
proof grade::
-
EXDIIBT1 ~ 6 EXiaIICT1 ~ 6
-
Protection::
-
IP65
-
the electrical interface::
-
M20 * 1.5
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
2 years
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Yunyi
-
Model Number:
-
UHZ10
-
Name::
-
Hot Sell tank level gauge magnetic float level sensor in China
-
Measuring range::
-
300 ~ 6000mm
-
Working temperature::
-
≤150 ℃
-
Load capacity::
-
0-600
-
Resolution::
-
± 10mm (common), ± 20mm, ± 5mm
-
working pressure::
-
1.6MPa, 2.5MPa, 4.0MPa
-
medium density::
-
≥0.5g / cm3
-
proof grade::
-
EXDIIBT1 ~ 6 EXiaIICT1 ~ 6
-
Protection::
-
IP65
-
the electrical interface::
-
M20 * 1.5
Hot Selling Meter Measuring Transmitter Hydrostatic Magnetrol Capicitance tank level gauge magnetic float Water Level Sensor
Description Hot Sell tank level gauge magnetic float level sensor
UHZ-10 introducing and absorbing domestic and foreign products, and to digest, absorb, improve the original magnetic level gauge standards promulgated by the Ministry of Chemical Industry HG/T21584 -95 developed products. Can be used in a variety of media level measurement towers, tanks, tank, spherical vessels and boilers and other equipment. The magnetic level gauge series can achieve high sealed, leak-proof and adaptation level measurement under high pressure, high temperature, corrosive conditions.The entire process of measuring non-blind, eye-catching display, intuitive readings. In particular site instruction part, because no direct contact with the liquid medium, so the high temperature, high pressure, high viscosity, toxic, harmful, corrosive media, can show its superiority. Therefore, it is more thanthe traditional glass, plate level gauge with higher reliability, security, advanced,practical.

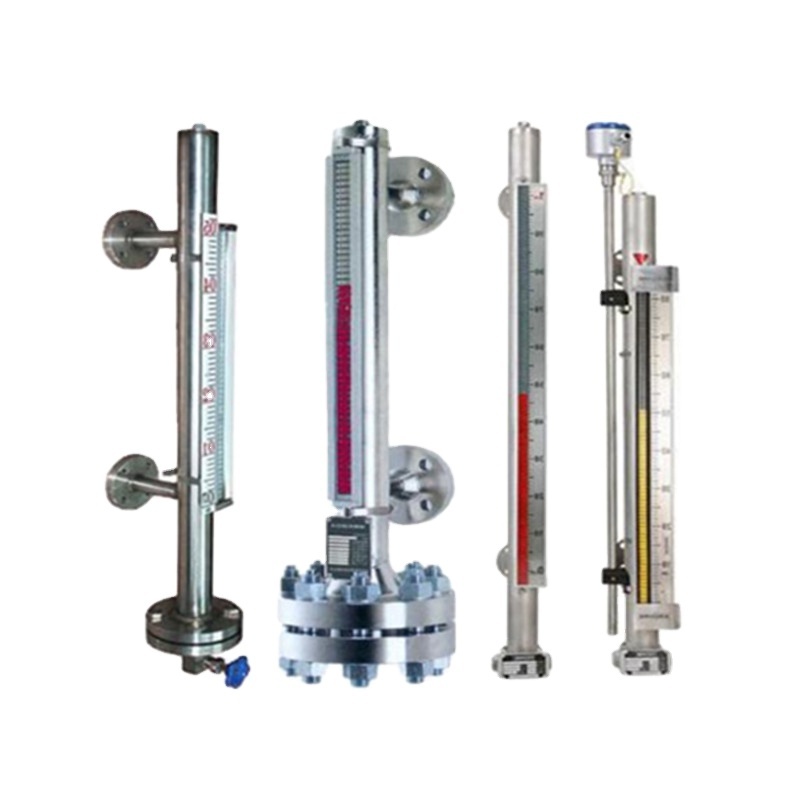

Detailed Images tank level gauge magnetic float level sensor
Specification tank level gauge magnetic float level sensor
| range (mm) | 300 ~ 19000 |
| medium density (g/cm3) | ≥ 0.45 |
| medium viscosity: | ≤ 0.02Pa.S |
| working temperature ℃: | -180 ~ 350 |
| pressure levels (MPa): | ≤ 32 |
| measurement accuracy (mm): | ≤ ± 10 |
| Installation: | Side-mounted, roof-mounted, bottom-mounted |
| Protection: | IP65 |
| proof grade: | ib Ⅱ CT4 (intrinsically safe), d Ⅱ BT3 (flameproof) |
| transmission: | 4 ~ 20mA or switch |
Features tank level gauge magnetic float level sensor in China
Level gauge the main components (body) in direct contact with the medium are made of stainless steel material or other special materials, indicating that components are not in contact with the media, and therefore containing flammable, explosive, toxic, corrosive media container use the gauge is safe and reliable.
Two-color (white vapor, liquid red) turned columns, flap display, indicating continuous visual eye-catching, no blind spots, in any case will not be a false level.
Less sealing surface, reducing static seal leakage points above 95%, and thus, to overcome the petroleum, chemical industry pressure vessel parts run,run, drip, leak and other weak links than the original plate level gauge.
Simple structure, easy installation and maintenance, large-scale, design pressure, long life, wide range of applications.
Magnetic float level gauge, with a level gauge can replace more than one glass plate liquid level gauge, and the installation extremely easy to use. Meanwhile, the use of plant development level remote transmitter, alarm and automatic control device, can be realized on the lower level alarm and control automation.
Applications tank level gauge magnetic float level sensor in China
Selection Guide tank level gauge magnetic float level sensor
Measuring length
Connection flange standards
Media name and density
Medium temperature
Medium pressure
Installation
Material selection
