Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
3.2kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Xunke
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3200x21900x1700mm
-
Power (kW):
-
6.5
-
Weight (KG):
-
1050
-
Product name:
-
CNC Wood Working Machine
-
Spindle:
-
3.2kw Spindle
-
Motor:
-
Stepper Motor
-
Working area:
-
1300*2500
-
Inverter:
-
Fuling Inverter
-
Control system:
-
Nc-studio/Mach3/DSP Control System
-
Color:
-
Customer Needing
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Working Voltage:
-
AC220V/AC380/50HZ/60HZ
-
Software:
-
Ucancam / ArtCam/TYPE3
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
6000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
3.2kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Xunke
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3200x21900x1700mm
-
Power (kW):
-
6.5
-
Weight (KG):
-
1050
-
Product name:
-
CNC Wood Working Machine
-
Spindle:
-
3.2kw Spindle
-
Motor:
-
Stepper Motor
-
Working area:
-
1300*2500
-
Inverter:
-
Fuling Inverter
-
Control system:
-
Nc-studio/Mach3/DSP Control System
-
Color:
-
Customer Needing
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Working Voltage:
-
AC220V/AC380/50HZ/60HZ
-
Software:
-
Ucancam / ArtCam/TYPE3
Products Show

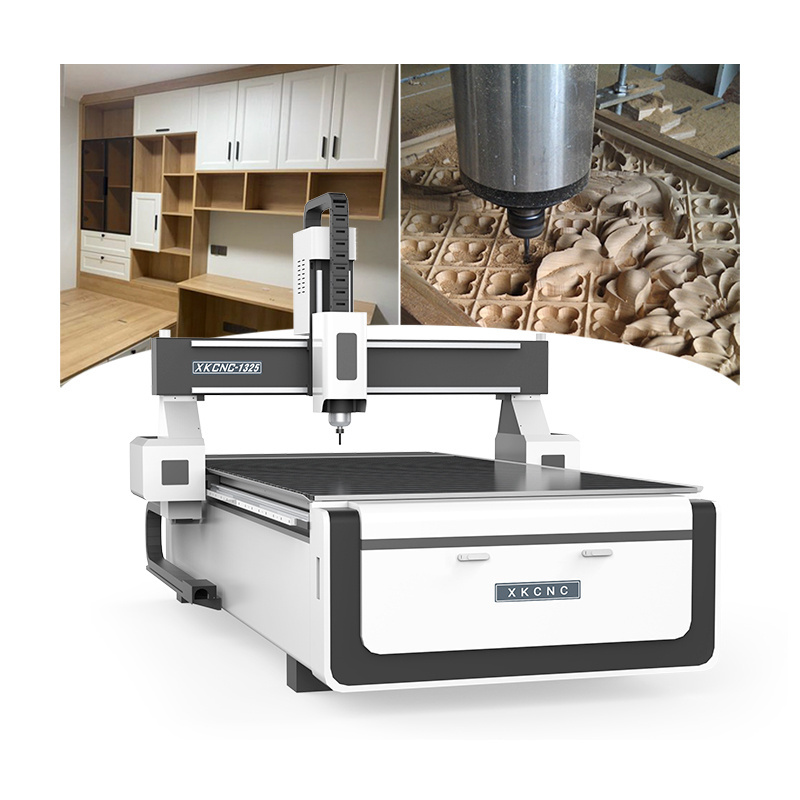

1325 cnc router is popular in advertising industry, it mainly used to cut acrylic, PVC, MDF, plywood and other materials. Besides, it can realize the engraving on stone like marble and granite, woodworking, etc.
Product's features
1325 cnc router is equipped with:
^High quality square rail and rack
^Nc studio control system, Mach 3 or DSP handle control
^High software compatibility
^Aluminum profile table and T-slot or vacuum table
^High speed step motor or servo motor
Product Paramenters
|
Model
|
XK-1325
|
|
Working area
|
1300×2500×200mm
|
|
Spindle
|
6kw air cooling spindle spindle
|
|
Motor
|
Stepper motor
|
|
Control system
|
NC Studio
|
|
Driven system
|
X, Y axis helical rack drive, Z axis Taiwan TBI ball screw
|
|
Working table
|
Intelligent protection of the work surface
|
|
Machine bed
|
Channel steel structure
|
|
Max speed
|
≥15m/min
|
|
Spindle speed
|
6000-24000rpm/min
|
|
Voltage
|
380V/50HZ
|
|
Software
|
Wentai, Jingdiao
|
|
Packing size
|
3200*2250*1830mm
|
|
Lubrication system
|
Automatic oil lubrication system
|
|
N.W./G.W.
|
900kg/1050kg
|
Quality control
Our company has six steps to guarantee the machine quality, from the start to the end. M
achine base is made by imported CNC processing center, which is imported from Italy. Besides, we also use
precise instrument to measure the precision of every part and finally, we will check the final products after cutting to make sure the the accuracy of machine cutting.
Application
1325 CNC Routers are computer-controlled engraving/milling/cutting machines. They can be used in the production of various different items, such as furniture, cabinet, signboards, wood panels, wooden frames, door carvings, prototyping & modeling, musical instruments, art crafts, and so on. It can also cut materials which are used widely in advertising industry like acrylic, PVC, MDF, double colors board, plywood, etc.
