Quick Details
-
Weight (KG):
-
500
-
Name:
-
DISC Polishing Machine
-
Usage:
-
Automatic Control Operation
-
Function:
-
Metal Surface Grinding Polishing
-
Machine Type:
-
Pay-off Machine
-
Material:
-
High Wear Resistant Material
-
Motor:
-
2.2/7.5KW
-
Polishing material:
-
Sand Belt Wheel
-
Control:
-
PLC+PC+Touch Screen
-
VOLTAGE:
-
3 Phase
-
Package:
-
Wood Package
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
J&Y
-
Power (kW):
-
1.5
-
Weight (KG):
-
500
-
Name:
-
DISC Polishing Machine
-
Usage:
-
Automatic Control Operation
-
Function:
-
Metal Surface Grinding Polishing
-
Machine Type:
-
Pay-off Machine
-
Material:
-
High Wear Resistant Material
-
Motor:
-
2.2/7.5KW
-
Polishing material:
-
Sand Belt Wheel
-
Control:
-
PLC+PC+Touch Screen
-
VOLTAGE:
-
3 Phase
-
Package:
-
Wood Package
Contacts: David Liu
Tel: +86-411-82766928
Fax: +86-411-39015062
Mob/Whatsapp: +86 133 9411 0095

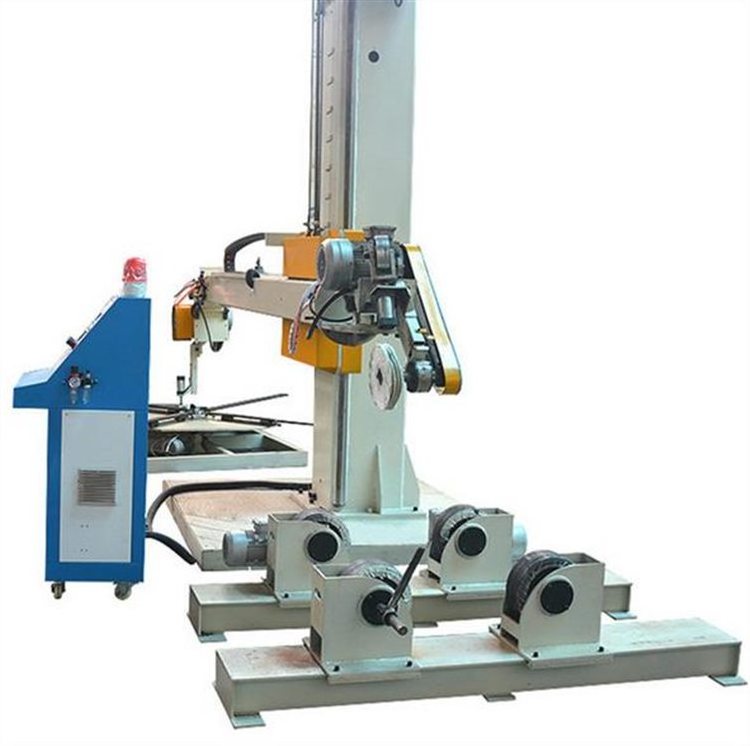

High precision dish head Grinding polishing machine for stainless steel Industry
Machine tool structure
1.Including the mechanical part, electrical control part
(1.1) The mechanical part is composed of polishing system, polishing wheel walking system, workpiece reversing table, and the main workpiece is welded structural part
(1.2The electrical control part consists of control cabinet, frequency converter and motor.
|
1. The column |
2. The beam |
3. Walking bracket |
4. Column base |
|
5.Power distribution cabinet |
6. Head main motor |
7. Lifting motor |
8. Walking motor |
|
9. Rotary head motor |
10. Sealing cylinder |
11. Head grinding wheel |
12. Head rotary base |
|
13. Tank body rotary motor |
14.Tank body rotary base |
15. Tank wheel |
16.Main motor of tank body |
|
specifications of work pieces |
||
|
Work Piece Size |
Tank/Vessel/Cylinder |
Diameter: 400-5000 mm Max length: 6000 mm Max weight: 10 T |
|
Dished end/Tank Top |
Diameter: 400-5000 mm Max weight: 10 T Depth: 2500 mm |
|
|
Material |
Metal:Stainless steel,Aluminium alloy,Carbon steel,Red copper,etc. |
|
|
NOTE: Our Products all Non-Standard customization. |
||
|
grinding and polishing machine parameter |
|
|
Outer Dimension |
4500X1500X3080 mm |
|
Machine Weight |
3000 KGS |
|
Input Power |
8 KW |
|
Control System |
PLC/CNC |
|
Production Efficiency |
6-12 m2 /hour |
|
Surface Roughness |
Ra<0.4 um (Mirror Finished) |
|
Polishing Materials |
Abrasive belt, flap wheel,Nylon,Hemp wheel and cloth wheel |
