Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TOB
-
Dimension(L*W*H):
-
550*310*330mm
-
Weight:
-
40 KG
-
Product name:
-
Lab coating machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Coating speed:
-
0-100mm/s, Step-less transmission
-
Coating area:
-
300*150mm
-
Coating thickness:
-
0.01-3.5mm
-
Heating dry system:
-
RT-200℃, Digital temperature controller
-
Slicker width:
-
0-150mm
-
Marketing Type:
-
Lab Equipment
Quick Details
-
Applicable Industries:
-
Coin Cell Lab R&D
-
Core Components:
-
N/A
-
Voltage:
-
AC220V / AC110V
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TOB
-
Dimension(L*W*H):
-
550*310*330mm
-
Weight:
-
40 KG
-
Product name:
-
Lab coating machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Coating speed:
-
0-100mm/s, Step-less transmission
-
Coating area:
-
300*150mm
-
Coating thickness:
-
0.01-3.5mm
-
Heating dry system:
-
RT-200℃, Digital temperature controller
-
Slicker width:
-
0-150mm
-
Marketing Type:
-
Lab Equipment
Lithium Ion Battery Lab Coating Machine With Vacuum and Dry Function
SPECIFICATION:
The TOB-VFC-150 Film coating machine with dryer is used for varies kinds of materials coating.
It is supplied with vacuum pump and heating system, having an precision heating temperature up to 200°C.
The film coating machine is mainly used for lithium battery electrode coating for coin cell assemble and pouch cell research.
|
Machine model |
Automatic film coating machine with dryer TOB-VFC-150 |
|
Source voltage |
AC110V-240V, 50/60HZ |
|
Power |
650W |
|
Coating speed |
0-100mm/s, Step-less transmission Accuracy: 10mm/sec |
|
Advantages |
Supply with dry function, vacuum pump |
|
Stroke length |
10 - 250 mm adjustable by using Adjustable Position Switch |
|
Platform |
Aluminum alloy flat vacuum chuck Vacuum Chuck Dimensions: 365mm(L) * 200mm(W)*30mm(T) |
|
Slicker width |
0-150mm |
|
Slicker adjustable range |
0.01-3.5mm |
|
Heating dry system |
RT-200°C, Digital temperature controller |
|
Temperature control accuracy |
±1°C |
|
Dimension |
550*310*330mm |
|
Weight |
About 40kg |
|
Warranty |
One Year limited warranty with lifetime support |
|
Reference Pictures |
1 Built-in vacuum pump 2 Heating system : Installed on the top cover Built in digital temperature controller with accuracy of +/-1°C Suspension support helps open cover easily and safely. Max. Heating Rate:10°C/min Max. Heating Temp.:200°C 3 One 150mm width micrometer adjustable film applicator is included Traverse Pusher is included for pushing the Film Applicator to ensure the constant coating speed |

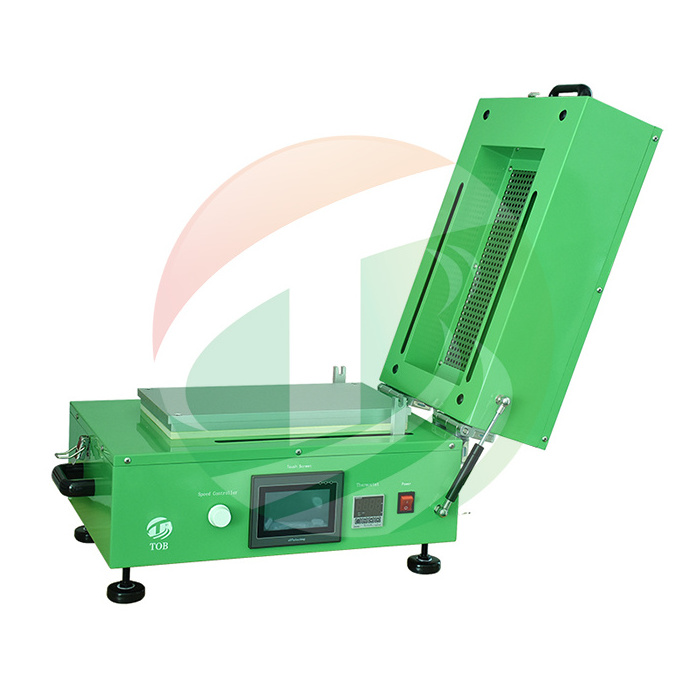

Automatic film coating machine with dryer
Coating Machine Parts
Packing
