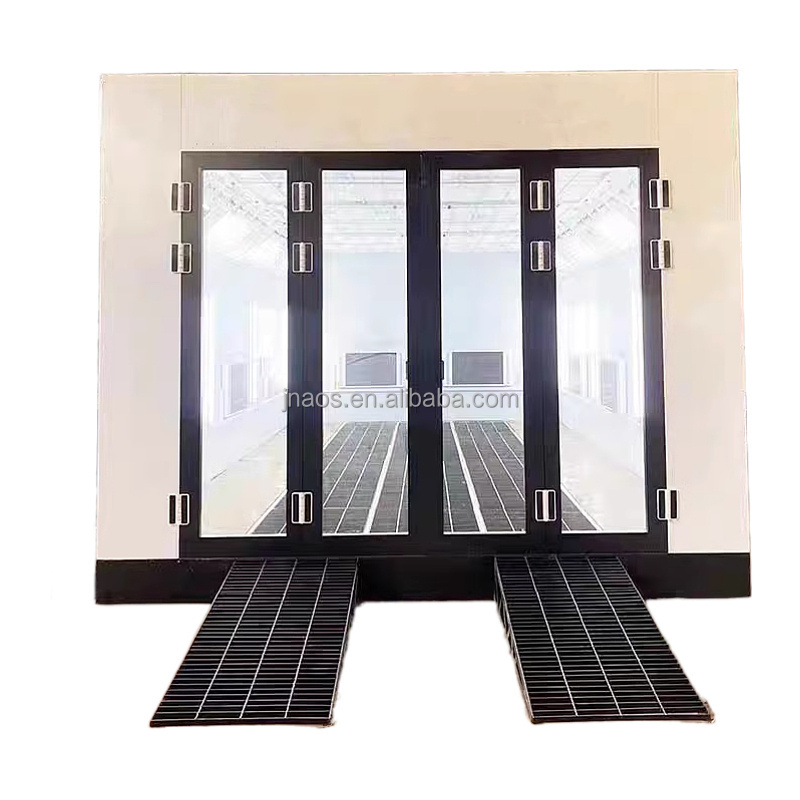

New Designed Car Paint Booth With Good Front Doors

Outside Size:

7000*4000*3300mm

Inside Size:

6900*3900*2600mm

Cabin system:

Wallboard:

Antiflaming EPS Plate, 50mm thick ,

steel skin is 0. 5 mm thick , tongue & groove style, anti-flame and heat-insulation, galvanized steel roof panel.

Main d oor:

3-fold main doors,total 3000*2500mm(W*H),with safety glass,

with handles and high-pressure safety lock.

Side door:

1 unit 700*1800mm(W*H), with safety glass windows,

aluminum alloy frame, with handle and safety lock.

Basement:

280mm height galvanized metal-base.

2 rows of grid plates made by flat bar and round steel, 3 rows of embossed plates.

Two sets of hard strength ramps.

Air circulation         System:

Intake Fan :

2* 4kw ;double-inlet centrifugal fans, air capacity:25000m3/h.

Exhaust Fan :

1* 7 .5 kw ; double-inlet centrifugal fans, air capacity:22000m3/h.

Cabinet for the fans*1unit,air duct: 0.9m*3,Elbow:90°*1unit

Filtering system:

Pre-filter, filtering rate>83%,can capture granules larger than 10μm;

Ceiling filter,filtering rate>97%, can capture granules bigger than 4μm

Fiberglass floor filter, filtering rate>70%.

Heating System:

Electric infrared heating tubes , 10sets *3kw, 30kw in total(10 units infrared lamps, for heating, 3lamps per unit,each lamp is 1kw, totally it is 30kw) .

Service time about 6000 hours.

Lighting system:

Ceiling lights: 8units*3pcs=24pcs*20w LED lights, powder-coated light box.

Wall lights: 8 units* 2 pcs= 16 pcs *20w LED lights , vertically set,pow d er-coated light box .

Controlling              System:

Intelligent control,power switch,spray/baking switch,light switch,emergency stop,breakdown alarm.

Power total:

About 46KW (380V/3P/50hz)
