Quick Details
-
Panel Size:
-
200*150mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
ASR-DIP-OF-P1.2-312005
-
Display Function:
-
ANIMATION
-
Pixels:
-
P1.2
-
Screen Dimension:
-
200*150mm
-
Brightness:
-
7500cd/m2
-
Viewing distance:
-
2-30m
-
Warranty:
-
3years
-
Function:
-
advertising/tv/concert
-
Cabinet Size:
-
300mm(H)*400mm(W)
-
Driver Mode:
-
Dynamic 1/26 scan , constant current driving
Quick Details
-
Application:
-
Indoor
-
Brand Name:
-
ASRAM
-
Color:
-
full color, Full color
-
Panel Size:
-
200*150mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
ASR-DIP-OF-P1.2-312005
-
Display Function:
-
ANIMATION
-
Pixels:
-
P1.2
-
Screen Dimension:
-
200*150mm
-
Brightness:
-
7500cd/m2
-
Viewing distance:
-
2-30m
-
Warranty:
-
3years
-
Function:
-
advertising/tv/concert
-
Cabinet Size:
-
300mm(H)*400mm(W)
-
Driver Mode:
-
Dynamic 1/26 scan , constant current driving
Hot ali express good price promotional stand

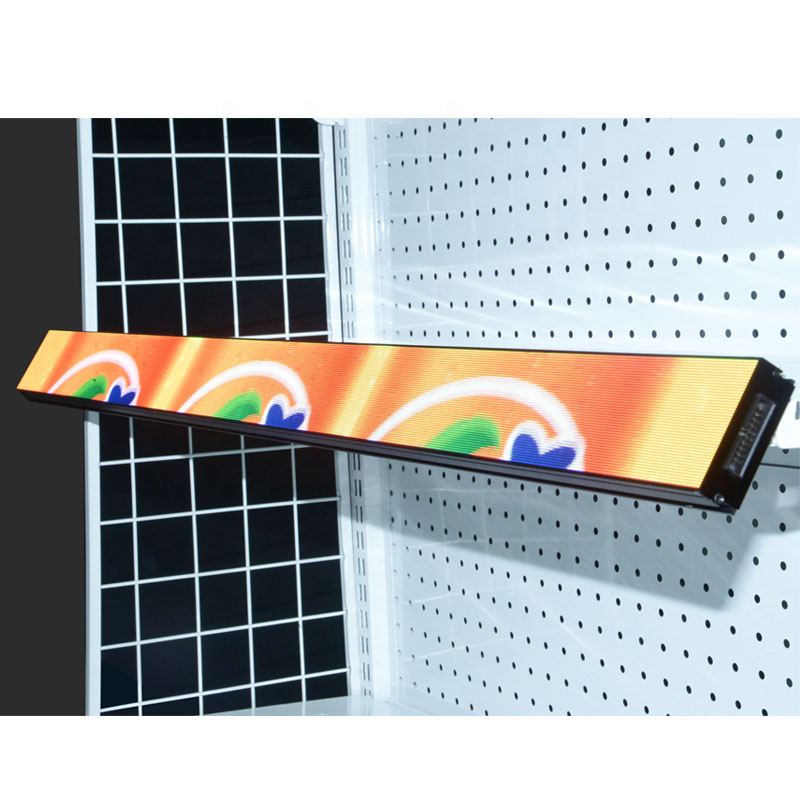

HD led shelf display p1.25 COB indoor led shelf screen signage LED video screen for store
Specifications
| Pixel Pitch(mm) | 1.25mm |
| LED Type | COB |
| LED Configuration | 1R1G1B |
| IC | ICN2065+ICN2018 |
| Refresh Rate(Hz) | ≥3840Hz |
| Module Resolution (PXxPX) | 120*45=5400 Dots |
| Module Size (mmxmm) | 150mm*56.25mm |
| Max Current | 6A |
| Input Voltage | 5V |
| Module max power consumption | 6.5W |
| Scanning mode | 1/45 |
| Horizontal Viewing Angle(Deg) | ≥170(+10/-10) |
| Vertical Viewing Angle(Deg) | ≥170(+10/-10) |
| Brightness | 400~600 CD/m2 |
| Grey Scale | >14bit |
| Cabinet Resolution(PXxPX) | 480*45=10800 Dots |
| Cabinet Size | 300mm*60mm |
| Cabinet Density (dot/sqm) | 640000Dots/m2 |
| Malfunction Dot Rate | <0.3% |
| Power Supply | DC5V |
| Working Temperature(℃) | -40-60℃ |
| Working Humidity | 10%-90% RH |
| Lifespan(H) | ≥50,000 |
Spcification
Features
Angle is greater than 175 degrees, close to 180 degrees, and has more excellent optical diffuse color into light effect.
2cm super slim thickness
modular design to match the standard supermaket shelf
easy assemble
support hot-plug
support hook type installation
Our advantage
Excellent heat dissipation:
High quality thermal conductivity material for cabinet, excellent ventilated design for heat dissipation, improving the stability and lifespan of screen
Hard connection,support hot-plug:
shelf screen can be spliced without shutting down the system and cutting off the power
Support hook type installation:
The least weight reduced to 1/3 of the original traditional products, can significantly reduce the structure for the customer, transportation, and engineering cost
Stronger protection:
COB LED chips are welded on the PCB board directly, then do encapsulation. It has excellent protection capabilities.
Higher reliability and stability:
COB technology has simpler process on material using and producing than SMD, so it has higher performance on heat dissipation to prolong life span.
Larger viewing angle:
has larger viewing angle and is easy to control the loss of light refraction.
Because our led shelf screen need work with led control box and power supply, For exactly quote the price for you, if you have projects of led shelf display, pls let me know how will you place the led shelf screen, for example, i wanna a 7 meter long led shelf screen or i need each line with 9 pieces 600x60mm and there will be 3 lines.. and other details, thank you.
Factory:
Cabinet:
Effect:
Package:
Our services:
A: 24 Hours After sales support,professional support,manual book, and remote control if customer need it,not only sell display to you,but more supports.
B: Real Taiwan Chip + High quality suit, CE,ROHS,FCC certification factory.
C: Sure Dispaly from factory is 100% test done and not any quality problems, we will responsibile it if have any quality problems.
D: We offer 2 years warranty to our product.
E: Customized design is available.
F: Special discount are offered based on order quantity. Welcome to contact us.
G: Our products has passed
CE, FCC, ROHS,
certificates.
