Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
henan
-
Brand Name:
-
Lindu
-
Model Number:
-
LD-NVM1440
-
Weight:
-
0.25kg
-
Effective Visual Distance:
-
300M
-
Product name:
-
Night Vision Goggles
-
Battery type:
-
1 3V CR123A Lithium Battery
-
Control type:
-
ON/IR/AUTO
-
FOV:
-
40+/-2
-
Power:
-
<0.1W
-
Battery capacity:
-
800-3200maH
-
Continue working time:
-
80-200H
-
Optical aperture:
-
F1.18 25mm
-
Optical MTF:
-
120LP/mm
-
Optical distortion:
-
0.5% Max
-
Operating Voltage:
-
3.7V
Quick Details
-
Size:
-
10cm
-
Type:
-
Monocular
-
Magnification:
-
1X
-
Warranty:
-
2 years
-
Place of Origin:
-
henan
-
Brand Name:
-
Lindu
-
Model Number:
-
LD-NVM1440
-
Weight:
-
0.25kg
-
Effective Visual Distance:
-
300M
-
Product name:
-
Night Vision Goggles
-
Battery type:
-
1 3V CR123A Lithium Battery
-
Control type:
-
ON/IR/AUTO
-
FOV:
-
40+/-2
-
Power:
-
<0.1W
-
Battery capacity:
-
800-3200maH
-
Continue working time:
-
80-200H
-
Optical aperture:
-
F1.18 25mm
-
Optical MTF:
-
120LP/mm
-
Optical distortion:
-
0.5% Max
-
Operating Voltage:
-
3.7V

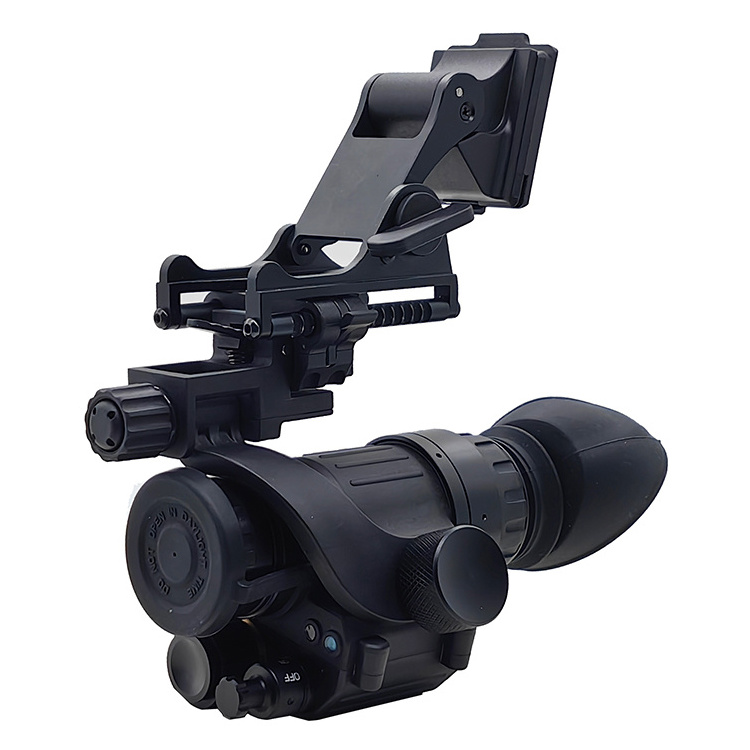

Lindu MX10160 Tube PVS14 Monocular Housing Kit Night Vision Goggles
Night vision monocular PVS14 is a new design from Lindu Optics at 2023 which called LD-NVM1440, FOV 50 degree will be offered in future which will be called LD-NVM1450, its quality is military standard and can be mounted on helmet.
It design with 30mm diameter eyepiece lens, big eye relief range, HD optical system, almost without optical distortion, light weight, strong structure, the total specs is the top in the market.
The optical system is the same as our night vision goggles LD-NVG33, effect is better than original PVS14 lens.
Note: Housing kit(optics included) could be offered by us, you can buy and install the tube by yourself.
Features:
1. IP65 waterproof standard(IP67 optional);
2. Build in IR indicator and low battery indicator;
3. Optical distortion less than 0.5%;
4. Mil-spec multi-coated optics;
5. 30mm diameter eyepeice lens;
6. Longer eye relief 25-40mm with full FOV;
7. Normal use CR123A battery, also offer AA battery version;
8. Automatic shut off when flipped up;
9. Can fit 3X and 5X magnifier lens;
| Image intensifier | Gen2+ / gen 3 |
| Magnification | 1X |
| Type | Monocular |
| Rotating test | Auto, flip up auto shut off |
| Battery type | Lithium batteries CR123x1 |
| Voltage range | 2.6-4.2V |
| Control type | ON/IR/AUTO |
| FOV(degree) | 50 /40 degree |
| Power | <0.1W |
| Battery capacity | 800-3200maH |
| Continue working time | 80-200H |
| Parallelism of optical axes | <0.1° |
| Optical aperture | F1.18 25mm |
| Rollover detection | Solid non-contact automatic detection |
| Optical MTF | 120LP/mm |
| Optical distortion | 0.5% Max |
| Relative Illumination | >75% |
| Lens coating | FMC |
| Focus range | 0.25M–∞ |
