Quick Details
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
-
Product name:
-

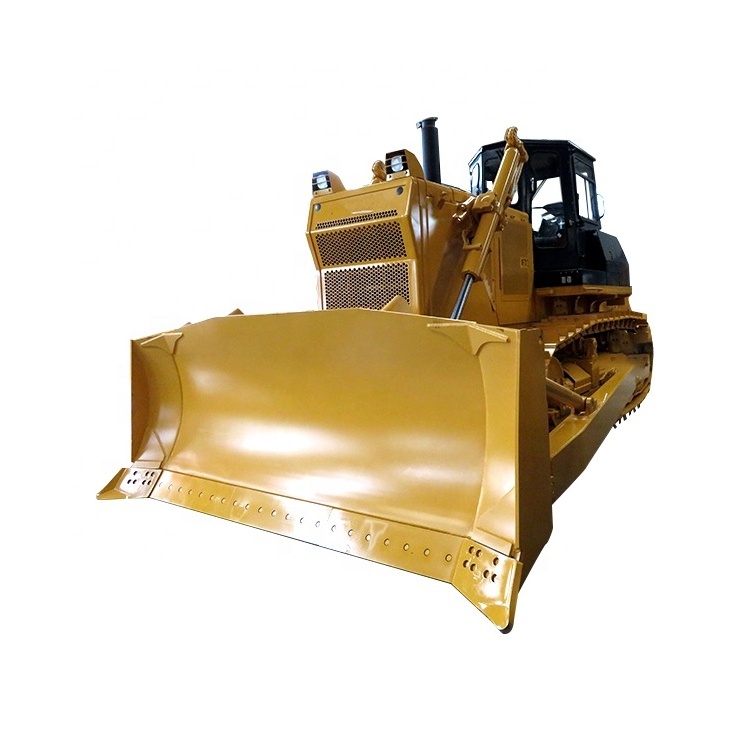

Crawler Buldozer
-
Model:
-
HT32
-
Engine:
-
Cummins
-
Color:
-
Yellow-color
-
Rated power:
-
14Mpa
-
Displacement:
-
14.01
-
Blade Capacity:
-
10m3
-
Operating weight:
-
37.2t
-
Blade Height:
-
1590mm
-
Hydraulic system flow:
-
355l/min
Quick Details
-
Machine Weight:
-
37200KGS
-
Dozing Capacity:
-
10CBM
-
Place of Origin:
-
Shandong, China
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
-
Product name:
-
Crawler Buldozer
-
Model:
-
HT32
-
Engine:
-
Cummins
-
Color:
-
Yellow-color
-
Rated power:
-
14Mpa
-
Displacement:
-
14.01
-
Blade Capacity:
-
10m3
-
Operating weight:
-
37.2t
-
Blade Height:
-
1590mm
-
Hydraulic system flow:
-
355l/min
Product Description
|
Model
|
HD22
|
HD32
|
|
Engine model
|
Cummins NT855-C280S10
|
Cummins NTA855-C360S10
|
|
Rated power(kw/rpm)
|
175/1800
|
257/2000
|
|
Displacement(L)
|
14.01
|
14.01
|
|
Max.torque(N.m/rpm)
|
1030/1250
|
1440/1400
|
|
Operating weight(Kg)
|
23500
|
37200
|
|
Dimension(no ripper)(mm)
|
5492×3726×3742
|
6885×4128×3645
|
|
Min ground clearance(mm)
|
405
|
500
|
|
Ground pressure(MPa)
|
0.072-0.077
|
0.105/0.09/0.078
|
|
Track shoe width(mm)
|
560/610/660
|
560/660/760
|
|
Track gauge(mm)
|
2000
|
2140
|
|
Dozing capacity( m³)
|
6.4
|
10
|
|
Blade width(mm)
|
3725
|
4130
|
|
Blade height(mm)
|
1315
|
1590
|
|
Max drop below ground(mm)
|
540
|
560
|
|
Pitch(mm)
|
216
|
228
|
|
Quantity of track link
|
38
|
41
|
|
Quantity of Carrier rollers
|
4
|
4
|
|
Quantity of Track rollers
|
12
|
14
|
|
Max pressure(MPa)
|
14
|
14
|
|
Discharge(L/min)
|
262
|
355
|
|
Max tractor force(KN)
|
202
|
280
|
|
Grade ability(°)
|
30
|
30
|
|
Forward(km/h)
|
3.6/6.5/11.2
|
3.6/6.6/11.5
|
|
Reverse(km/h)
|
4.3/7.7/13.2
|
4.4/7.8/13.5
|
