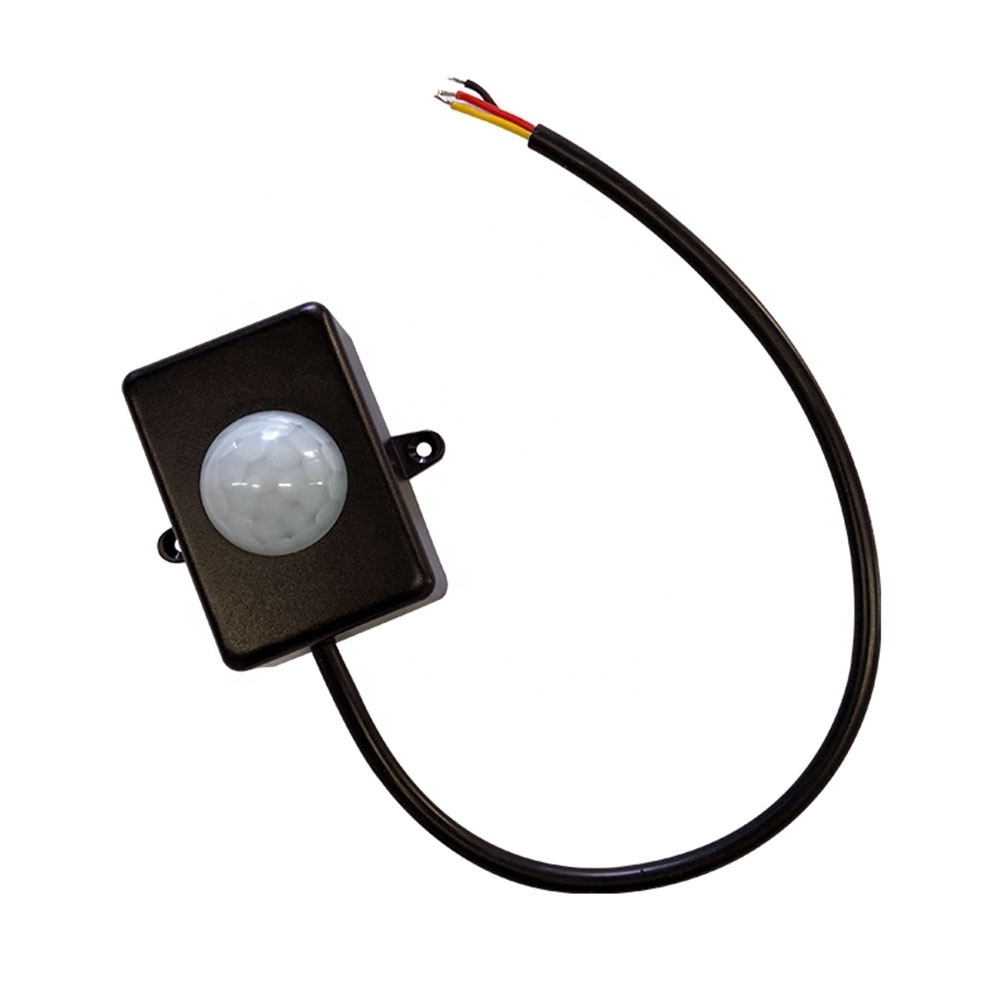

Taidacent Indoor Pyroelectric Human Pir Motion Sensor Light Switch Corridor Sensing Light Control Human Motion Sensor Switch

Taidacent Indoor Pyroelectric Human Pir Motion Sensor Light Switch Corridor Sensing Light Control Human Motion Sensor Switch

FOB Reference Price: Get Latest Price

≥2 Pieces

US $10.27

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Taidacent

Theory:: laser sensor

Output:: Switching Transducer

Description:: motion sensor light switch

Woking voltage:: 4.5-20V

switch:: pir switch

Quick Details

Usage:: control

Model Number:: XKC-003K4

Place of Origin:: Guangdong, China

Brand Name:: Taidacent

Theory:: laser sensor

Output:: Switching Transducer

Description:: motion sensor light switch

Woking voltage:: 4.5-20V

switch:: pir switch

Taidacent Pyroelectric Human Pir Sensor Switch Indoor Motion Sensor Corridor Sensing Light Control Human Motion Sensor Switch

Product Description

Product description:

XKC-003K4 is an automatic control product based on infrared technology. It has high sensitivity, strong reliability, and ultra-low voltage working mode. It is widely used in various automatic induction electrical equipment.

003K4-V output signal is High and low level (high 3 3V/low 0V) output current <3mA 003K4-N output signal is NPN open collector output (normally open) load current < 300mA 003K4-M output signal is Relay dry contact output (normally open) contact maximum current 3A 003K4-MC output signal is Relay dry contact output (normally closed) contact maximum current 3A 003K4-LED2A output signal is Can directly drive LED, drive maximum current 2A

Note:We have XKC-003K4-V black mirror; XKC-003K4-V white mirror; XKC-003K4-NPN black mirror; XKC-003K4-NPN white mirror; XKC-003K4-M black mirror; XKC-003K4-M white mirror , please contact us which one do you want.

Feature

1. Fully automatic sensing: when a person enters its sensing range, it outputs a high level, and when a person leaves the sensing range, it automatically delays and closes the high level and outputs a low level. 2. Photosensitive control (optional, not set at the factory) photosensitive control can be set, no induction during the day or when the light is strong. 3. Two trigger methods (selectable by jumper): a. Non-repeatable trigger mode: After the high level is sensed, the output will automatically change from high to low after the delay time is over. b. Repeatable trigger mode: that is, after the sensing output is high, if there is a human body moving in its sensing range during the delay period, its output will always remain high, and the delay will be high until the person leaves Change to low level (the sensor module will automatically extend a delay period after detecting each activity of the human body and use the time of the last activity as the starting point of the delay time); 4.With induction blocking time (default setting: within 1s): after each induction output (high level becomes low level), the sensor module can set a blocking time period immediately, during which the sensor Does not accept any induction signal. This function can realize the interval between "induction output time" and "blocking time", and can be applied to interval detection products. At the same time, this function can effectively suppress various interferences generated during load switching. 5.Wide working voltage range: the default working voltage is DC4 5V-20V. 6. Micro power consumption: quiescent current <200 microampere. 7. Output high and low level signalNPN/relay output: it can be easily connected with various circuits. 8. The induction delay output time is adjustable (about 5-300 seconds), and the induction distance is adjustable (within 7 meters).

Application
1	Human body induction lamps;
2	human body induction toys;
3	Security products;
4	Industrial automation control;
5	Automatic induction electrical equipment;
6	battery power automatic control, etc.;

Product Paramenters

Operating voltage range: DC4.5-20V Quiescent Current: <200uA Output type: High and low level (high 3 3V/low 0V)NPN/relay (nomally open/normally closed)drive 2A LED Trigger method: L can not be triggered repeatedly I H can be triggered repeatedly (default) Delay time: Default 5S (5-300S adjustable) Block time: The default is about 1S Circuit board dimensions: 32mm*24mm Shell size: 52L*36W*23H mm(Black), mounting hole中2.5 Lead wire length: about 28 cm Sensing angle: <110 degree cone angle Sensing distance: Within 7 meters Operating temperature: -20~85°C Sensing lens size: Diameter: 23mm (default)

Installation Instructions

Note

Shell size 51 .5mm(L)*52.6mm(W)*32.5mm(H) (The following is the size drawing of model 003K4-V/NPNMMC)

Wiring instructions

Adjust the distance potentiometer to rotate clockwise, the sensing distance is reduced (about 3 meters); on the contrary, the sensing distance is increased (about 7 meters); Adjust the delay potentiometer to rotate clockwise, the induction delay is shortened (about 5S); on the contrary, the induction delay is extended (about 300S).

wiring diagram of various models

Relay normally open output (dry contact signal), that is, the relay is off when there is n0 induction, and the relay is closed when there is induction.

Installation and use instructions

1. After the sensor is powered on, there is about one minute of initialization time, during which the module will output 0-3 times at intervals, and enter the normal standby state after one minute. 2. When installing, try to avoid interference sources such as lights directly on the lens on the surface of the module to avoid introducing interference signals to cause misoperation; try to avoid flowing wind in the use environment, which will also cause interference to the sensor. 3. Pay attention to the direction angle during installation, otherwise it will affect the sensing distance. The sensing window of the sensor is as parallel as possible to the direction of the most human activity, so as to achieve a better sensing effect. 4. When the ambient temperature rises close to the surface temperature of the human body during use (30-32°C), the detection distance will be slightly shorter, which is a result of the influence of temperature factors.

Details Images
