Quick Details
-
Table Travel (Y) (mm):
-
300 mm
-
Dimension(L*W*H):
-
2100x1700x2200mm
-
Weight (T):
-
2.2 T
-
Table Travel (Z) (mm):
-
450 mm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Repeatability (X/Y/Z) (mm):
-
0.005mm
-
Range of Spindle Speed(r.p.m):
-
50 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
3.7/5.5Kw
-
Max. Table Load(kg):
-
400 kg
-
Feed Speed(mm/min):
-
1 - 6000 mm/min
-
Rapid Feed Speed(m/min):
-
20/20/18
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Taian Taizhuo
-
Voltage:
-
3 Phase 220V/380V
-
Product name:
-
CNC Machining Center VMC500
-
CNC Controller:
-
Fanuc Siemens Syntec KND GSK GUNT
-
Spindle:
-
Taiwan BT40-8000RMP Spindle
-
Tool Changer:
-
Funnel Type/Arm type
-
Guideways:
-
Taiwan linear guideways
-
X/Y/Z axis travel:
-
550x300x450mm
-
Table Size:
-
800x260mm
-
Lubrication:
-
Auto lubrication
-
Color:
-
Custom-made
-
Application:
-
Metal Machining/Training
Quick Details
-
Table Size (mm):
-
800x260mm
-
Number of Axes:
-
3, 4, 5
-
Table Travel (X) (mm):
-
550 mm
-
Table Travel (Y) (mm):
-
300 mm
-
Dimension(L*W*H):
-
2100x1700x2200mm
-
Weight (T):
-
2.2 T
-
Table Travel (Z) (mm):
-
450 mm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Repeatability (X/Y/Z) (mm):
-
0.005mm
-
Range of Spindle Speed(r.p.m):
-
50 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
3.7/5.5Kw
-
Max. Table Load(kg):
-
400 kg
-
Feed Speed(mm/min):
-
1 - 6000 mm/min
-
Rapid Feed Speed(m/min):
-
20/20/18
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Taian Taizhuo
-
Voltage:
-
3 Phase 220V/380V
-
Product name:
-
CNC Machining Center VMC500
-
CNC Controller:
-
Fanuc Siemens Syntec KND GSK GUNT
-
Spindle:
-
Taiwan BT40-8000RMP Spindle
-
Tool Changer:
-
Funnel Type/Arm type
-
Guideways:
-
Taiwan linear guideways
-
X/Y/Z axis travel:
-
550x300x450mm
-
Table Size:
-
800x260mm
-
Lubrication:
-
Auto lubrication
-
Color:
-
Custom-made
-
Application:
-
Metal Machining/Training
Product Description

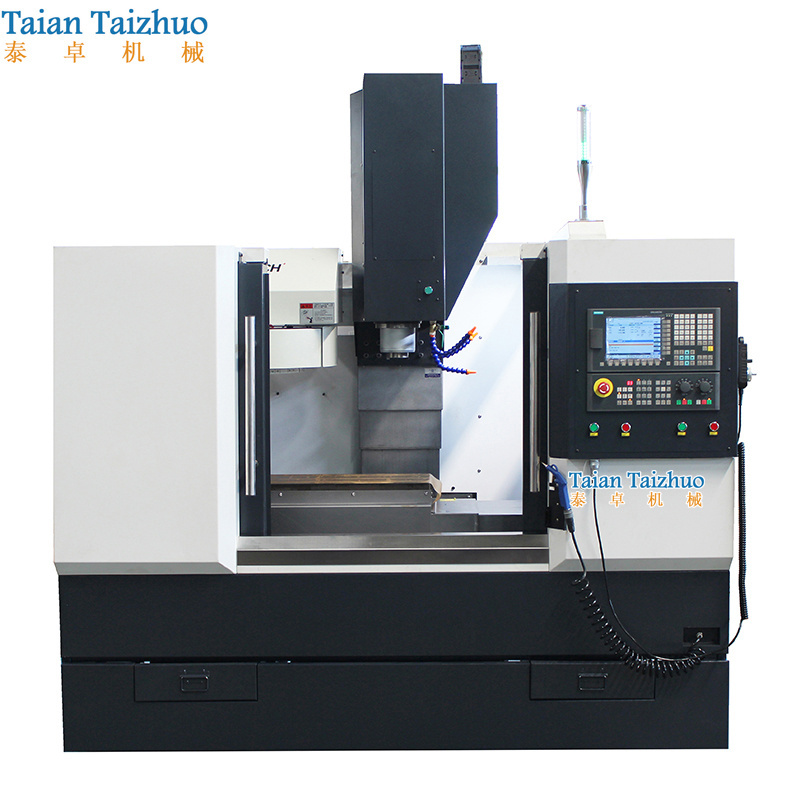

CNC Vertical Machining Center CNC VMC Machine VMC500 VMC 500
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
|
Item
|
Units
|
VMC300
|
VMC500
|
VMC650
|
|
X axis travel
|
mm
|
300
|
550
|
650
|
|
Y axis travel
|
mm
|
200
|
300
|
400
|
|
Z axis travel
|
mm
|
300
|
450
|
500
|
|
Spindle nose to table
|
mm
|
80-380
|
90-540
|
100-600
|
|
Spindle center to column
|
mm
|
205
|
350
|
460
|
|
Max. X axis rapid feed
|
m/min
|
12
|
20
|
20
|
|
Max. Y axis rapid feed
|
m/min
|
12
|
20
|
20
|
|
Max. Z axis rapid feed
|
m/min
|
12
|
18
|
18
|
|
Cutting feed
|
mm/min
|
1-3000
|
1-6000
|
1-6000
|
|
Table size
|
mm
|
600x200
|
800x260
|
800x400
|
|
Table max. load
|
kg
|
100
|
400
|
500
|
|
T slot
|
|
3-16-60
|
3-16-80
|
3-16-90
|
|
Main spindle
|
|
BT30-100
|
BT40-120
|
BT40-120
|
|
Spindle speed
|
rpm
|
100-5000
|
50-8000
|
50-8000
|
|
Main motor
|
kw
|
2.2/3.7
|
3.7/5.5
|
5.5/7.5
|
|
Positioning Accuracy
|
mm
|
±0.01/300
|
±0.01/300
|
±0.01/300
|
|
Repeatibility
|
mm
|
±0.005
|
±0.005
|
±0.005
|
|
Machine size
|
mm
|
1525x1520x1810
|
2100x1700x2200
|
2250x2000x2300
|
|
Net weight
|
kg
|
1300
|
2200
|
3000
|
STANDARD CONFIGURATION:
1. GSK25i/ GSK218M CNC Controller.
2. Taiwan BT40-120-8000 spindle.
3. Taiwan 12T funnel type tool changer.
1. GSK25i/ GSK218M CNC Controller.
2. Taiwan BT40-120-8000 spindle.
3. Taiwan 12T funnel type tool changer.
4. Taiwan Hiwin linear guideway.
5. Taiwan Hiwin ball screw.
6. Automatic Lubrication System.
7. Work Lamp.
8. Full Enclosure Machine Guard.
5. Taiwan Hiwin ball screw.
6. Automatic Lubrication System.
7. Work Lamp.
8. Full Enclosure Machine Guard.
OPTIONAL CONFIGURATION:
1. Siemens Fanuc Syntec KND Mitusbishi GUNT.
2. 16T arm type tool changer.
3. Chain type chip conveyor.
4. 4th axis and 5th axis.
5. Spindle oil cooler.
1. Siemens Fanuc Syntec KND Mitusbishi GUNT.
2. 16T arm type tool changer.
3. Chain type chip conveyor.
4. 4th axis and 5th axis.
5. Spindle oil cooler.
6. Coolant through spindle.
7. Renishaw probe for workpiece and tool.
8. 10000RPM/ 12000RPM spindle.
7. Renishaw probe for workpiece and tool.
8. 10000RPM/ 12000RPM spindle.
