Quick Details
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
hualian
-
Dimension(L*W*H):
-
2880X1230X2000mm
-
Weight:
-
180KGS
-
Certification:
-
CE,ISO9001
-
bag thickness:
-
≤1.0mm
Quick Details
-
Packaging Type:
-
Bags
-
Packaging Material:
-
Paper, Plastic
-
Driven Type:
-
Electric
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
hualian
-
Dimension(L*W*H):
-
2880X1230X2000mm
-
Weight:
-
180KGS
-
Certification:
-
CE,ISO9001
-
bag thickness:
-
≤1.0mm

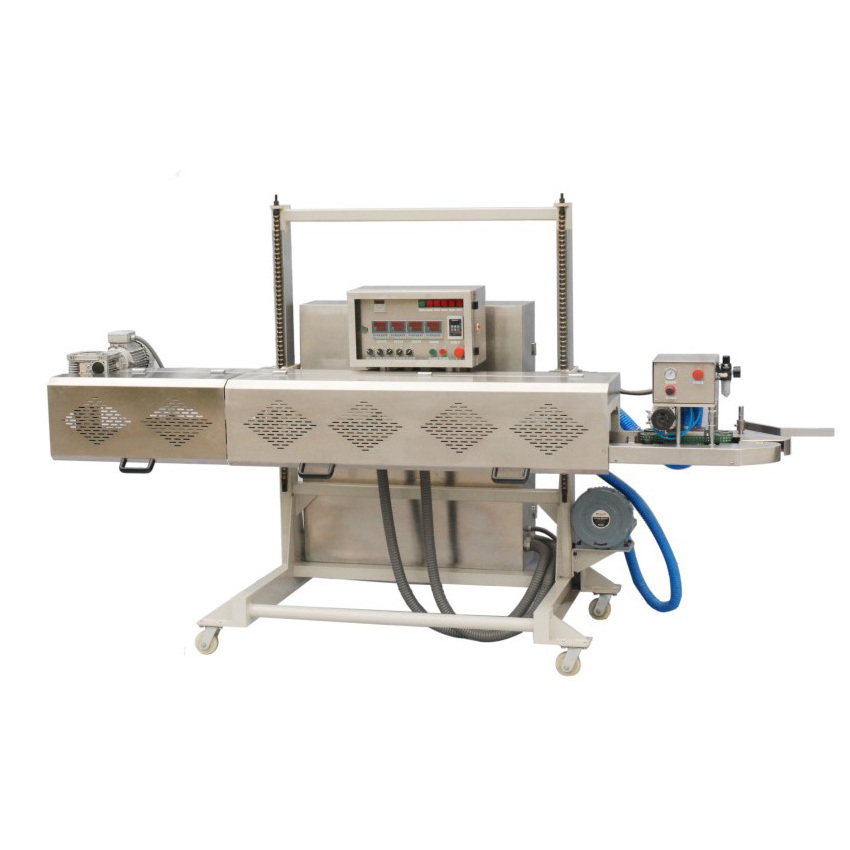

HUALIAN Heavy-duty Bags Heat Sealer (FBH-42)
Description:
FBH series automatic heavy-duty bags heat sealer can continuously seal thick PE or PP plastic bags, laminated bags made from paper/PE/AL/PE film. The optional devices can be equipped on it including deduster for bag opening and exhausting device etc. According to different materials and different thickness of bags, we have divided this series into relevant suitable model, including FBH-32, FBH-32D, FBH-42,FBH-42D.
Features:
1. Adopt Poly Tetra Fluoric Ethylene (Teflon) sealing belt, which could make the bags quickly be cooled after heating, and make the surface smooth and plain, so as to guarantee sealing quality.
2. With high performance, efficient.
Application:
FBH series automatic heavy-duty bags heat sealer is widely used in the fields of chemical material, medical material, rice foodstuff & feeds.
Parameters:
|
|
FBH-32 |
FBH-32D |
FBH-42 |
FBH-42D |
|
|
Voltage (V/Hz) |
AC 220/50 110/60 |
||||
|
Motor Power (W) |
3500 |
4000 |
5000 |
5500 |
|
|
Transmission Power(W) |
3700 |
3700 |
7500 |
7500 |
|
|
Deduster Powe(W)r |
-- |
600 |
-- |
600 |
|
|
Sealing Speed (m/min) |
0-12 |
||||
|
Film Material |
PE\PP\Compound film |
||||
|
Bag Thickness |
≤ 1.0 |
||||
|
Sealing Width (mm) |
8 |
||||
|
Temperature Range ( °C ) |
0-400 |
||||
|
Height from Sealing Center to Floor (mm) |
750-1450 |
||||
|
Heating Capacity (W) |
500×6 |
500×6 |
500×8 |
500*8 |
|
|
Cooling Type |
Air cooling |
|
|||
|
Deduster |
no |
yes |
no |
yes |
|
|
External Dimensions (L×W×H) (mm) |
2830×950×1800 |
3015×950×1800 |
|
||
|
Net Weight(kg) |
320 |
320 |
350 |
350 |
|
