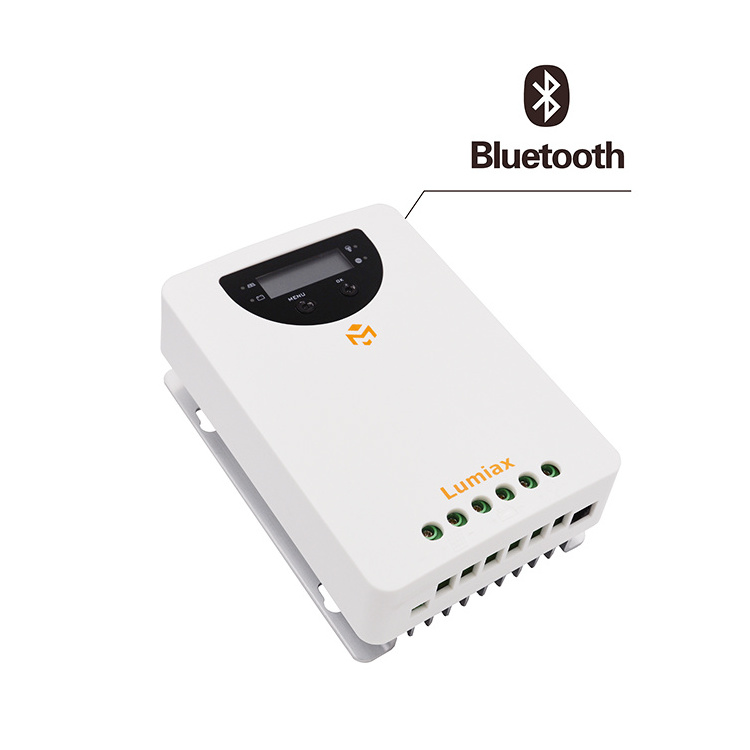

Lumiax 12V 24V 48V 20A 40A 60A solar system bluetooth yacht rv camper mppt solar charge controller
Lumiax 12V 24V 48V 20A 40A 60A solar system bluetooth yacht rv camper mppt solar charge controller
Lumiax 12V 24V 48V 20A 40A 60A solar system bluetooth yacht rv camper mppt solar charge controller
Lumiax 12V 24V 48V 20A 40A 60A solar system bluetooth yacht rv camper mppt solar charge controller
Lumiax 12V 24V 48V 20A 40A 60A solar system bluetooth yacht rv camper mppt solar charge controller
Lumiax 12V 24V 48V 20A 40A 60A solar system bluetooth yacht rv camper mppt solar charge controller
Lumiax 12V 24V 48V 20A 40A 60A solar system bluetooth yacht rv camper mppt solar charge controller
Lumiax 12V 24V 48V 20A 40A 60A solar system bluetooth yacht rv camper mppt solar charge controller

Lumiax 12V 24V 48V 20A 40A 60A solar system bluetooth yacht rv camper mppt solar charge controller

FOB Reference Price: Get Latest Price
≥2 Pieces
US $38.3
≥200 Pieces
US $37.75
≥500 Pieces
US $37.2
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Lumiax
Model Number:
MC series
Work Time (h):
24 hours/ dusk to dawn/ timer
Max PV Power:
260W~3000W
Max PV Voltage:
55V/100V/150V
Certificate:
CE/RoHS/ISO9001/ISO14001
Warranty:
2 years
System voltage:
12v/24v/36v/48v optional
Battery type:
Liquid/GEL/AGM/Lithium
Load current:
20A/30A
MPPT tracking efficiency:
>99.9%
Max charge conversion:
98%
communication:
RS485/Bluetooth/IOT optional
Grounding:
Common negative
Ambient temperature:
-20~55℃
Ambient Humidity:
0~100%RH
Max. Altitude:
4000m

Quick Details

Type:
MPPT
Application:
Solar System Controller, RV/Boat
Place of Origin:
Shandong, China
Brand Name:
Lumiax
Model Number:
MC series
Work Time (h):
24 hours/ dusk to dawn/ timer
Max PV Power:
260W~3000W
Max PV Voltage:
55V/100V/150V
Certificate:
CE/RoHS/ISO9001/ISO14001
Warranty:
2 years
System voltage:
12v/24v/36v/48v optional
Battery type:
Liquid/GEL/AGM/Lithium
Load current:
20A/30A
MPPT tracking efficiency:
>99.9%
Max charge conversion:
98%
communication:
RS485/Bluetooth/IOT optional
Grounding:
Common negative
Ambient temperature:
-20~55℃
Ambient Humidity:
0~100%RH
Max. Altitude:
4000m
Product Description
20A 40A 60A MPPT solar charge controller Be used for 24 hours universal solar system,RV/caravan etc., Bluetooth function optional
1.Innovative Max Power Point Tracking(MPPT) technology, tracking efficiency >99.9%
2.High charge conversion efficiency up to 98%
3.LCD display design, reading parameters and working status easily 4.Multiple load control modes: Standard 24 hours, Dusk to Dawn, Timer and User-defined mode
5.Current-limiting charging protection while the PV power exceeds the range.
6.External temperature sensor

  • PCB Design

Capacitor Brand : SAMYOUNG
MOSFET brand: IR
TVS Brand:Littelfuse
MCU Brand: ST
Protection:
PV Over Current · PV Short Circuit · PV Reverse Polarity
Battery Reverse Polarity · Battery Over voltage
Battery Over voltage · Battery Over discharge
Load Over Current Protection · Load Short Circuit Protection
Over Temperature Protection
Accessories
1.Bluetooth function optional:
2.Seperate bluetooth module
3.2Bluetooth built-in
4. USB module
Secification/Parameters
MC2010
MC4010
MC6010
MC6015
Charging Current
20A
40A
60A
60A
Battery voltage
12/24V
12/24V
12/24V
12/24/36/48V
Battery Type
Gel, AGM, Liquid, Lithium（default: Gel)
Max volt on Battery
35V
65V
MPPT Charging Voltage
before boost or equalization charging stage
Boost Voltage
14~14.8/28~29.6V @25℃(Liquid, AGM)
14~14.8/28~29.6/42~44.4/56~59.2V
Equalization Voltage
14~15.0/28~30V@25℃(Liquid, AGM)
14~15/28~30/42~45/56~60V
Float Voltage
13~14.5/26~39V @25℃ (Liquid, AGM)
13~14.5/26~29/39~43.5/52~58V
Low Volt. Disconnect
10.8~11.8V/21.6~23.6V(Liquid, AGM)
10.8~11.8/21.6~23.6/32.4~35.4/43.2~47.2V
Charging target voltage
10.0~32.0V(Lithium, default: 14.4V)
10.0~64.0V(Lithium, default: 29.4V)
Low voltage disconnect
9.0~30.0V(Lithium, default: 10.6V)
9.0~60.0V(Lithium, default: 21.0V)
Max volt on PV
100V(-20℃), 90V(25℃)
150V(-20℃), 138V(25℃)
Max input power
260/520W
520/1040W
750/1500W
750/1500/2250/3000W
Output Current
20A
30A
30A
30A
Load mode
24 hours; Dusk to dawn; Timer
Max tracking efficiency
>99.9%
Max charge conversion
98.0%
Communication
RS485; (Bluetooth optional)
Grounding
Common Negative
Dimensions
136.6*136.6*67.1mm
196.5*136.6*67.1mm
262.5*186.5*97.5mm
262.5*186.5*97.5mm
Weight
830G
1.3KG
2.5KG
3KG
Ambient temperature
-20~+55℃
Ambient humidity
0~100%RH
Protection degree
IP32
Max Altitude
4000m
Certificates
Company Introduction

Our Services & Strength

1.All Lumiax products PCB are designed very well, no need for labor soldering, all are welded by machine automatically, which decrease the damage risk, like cold welding\welding slag\high temperature harm to components around.
2.Most of Lumiax MOSFET are from IR, ST MOSFETs, very famous brand in the world.
3.Most of Lumiax controllers MCU are from Atmel/ST/Microchip, very famous brands in the world.
4.Lumiax uses TVS from Littelfus, No.1 brand in the world, 1200W; while others use 600W unfamous brand TVS, even some use varistors, which sensitivity are not good sometimes.
5.We have another sister company, selling the electrical components, so we have the advantages to get components with good quality and low price.
6. CE certificate approved by TUV.
Registered as “Lumiax”, Qingdao Skywise Technology Co., Ltd. was established in 2007, and located in Qingdao Hi-tech park area. Due to many years devoted to researching and developing, now we have been the world-leading solar charge controller manufacturer with over 1.5 million controllers exported to 100 countries. Certificates that we have possessed of ISO9001 Quality Management System, ISO14001Environmental Management System, CQC Golden Sun Certificate, CE and ROHS . Also with IEC61000, IEC62509,FCC,SASO,CISPR certificates for some models.
Products major including two parts: solar 24 hours universal system controller and solar street light controller. Weclome to visit and inquiry.
Global Exhibitions
Packing&Shipping
Model
Carton size
QTY/carton
Weight/Carton
MC2010
49*39*26CM
18PCS
18.74KG
MC4010
49*39*26CM
12PCS
18.25KG
MC6010
42*24*36CM
4PCS
12.85KG
MC6015
49*39*26CM
4PCS
14.3KG
