Quick Details
-
Table Travel (Y) (mm):
-
1250
-
Dimension(L*W*H):
-
4000*2800*3000mm
-
Weight (T):
-
9.5 T
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
15-18.5
-
Max. Table Load(kg):
-
2000 kg
-
Feed Speed(mm/min):
-
1 - 10000 mm/min
-
Rapid Feed Speed(m/min):
-
15
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BORUI
-
Voltage:
-
Customer
-
CNC or Not:
-
CNC
-
Machine Type:
-
CNC Vertical Machining Center
-
Product name:
-
3-axis Vertical Cnc Machining Center
-
Controlling Mode:
-
Cnc Control
-
Product type:
-
gantry machining center
-
Application:
-
Metal Machining Center
-
Name:
-
Vertical Machine Center CNC Machine
-
Keywords:
-
Vmc Machine Center
-
Processing:
-
Metal Cutting Cnc Milling Machine
-
Precision:
-
High Precision Machining Center
Quick Details
-
Table Size (mm):
-
1400x1050
-
Number of Axes:
-
3, 4, 5
-
Table Travel (X) (mm):
-
1300
-
Table Travel (Y) (mm):
-
1250
-
Dimension(L*W*H):
-
4000*2800*3000mm
-
Weight (T):
-
9.5 T
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
15-18.5
-
Max. Table Load(kg):
-
2000 kg
-
Feed Speed(mm/min):
-
1 - 10000 mm/min
-
Rapid Feed Speed(m/min):
-
15
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BORUI
-
Voltage:
-
Customer
-
CNC or Not:
-
CNC
-
Machine Type:
-
CNC Vertical Machining Center
-
Product name:
-
3-axis Vertical Cnc Machining Center
-
Controlling Mode:
-
Cnc Control
-
Product type:
-
gantry machining center
-
Application:
-
Metal Machining Center
-
Name:
-
Vertical Machine Center CNC Machine
-
Keywords:
-
Vmc Machine Center
-
Processing:
-
Metal Cutting Cnc Milling Machine
-
Precision:
-
High Precision Machining Center

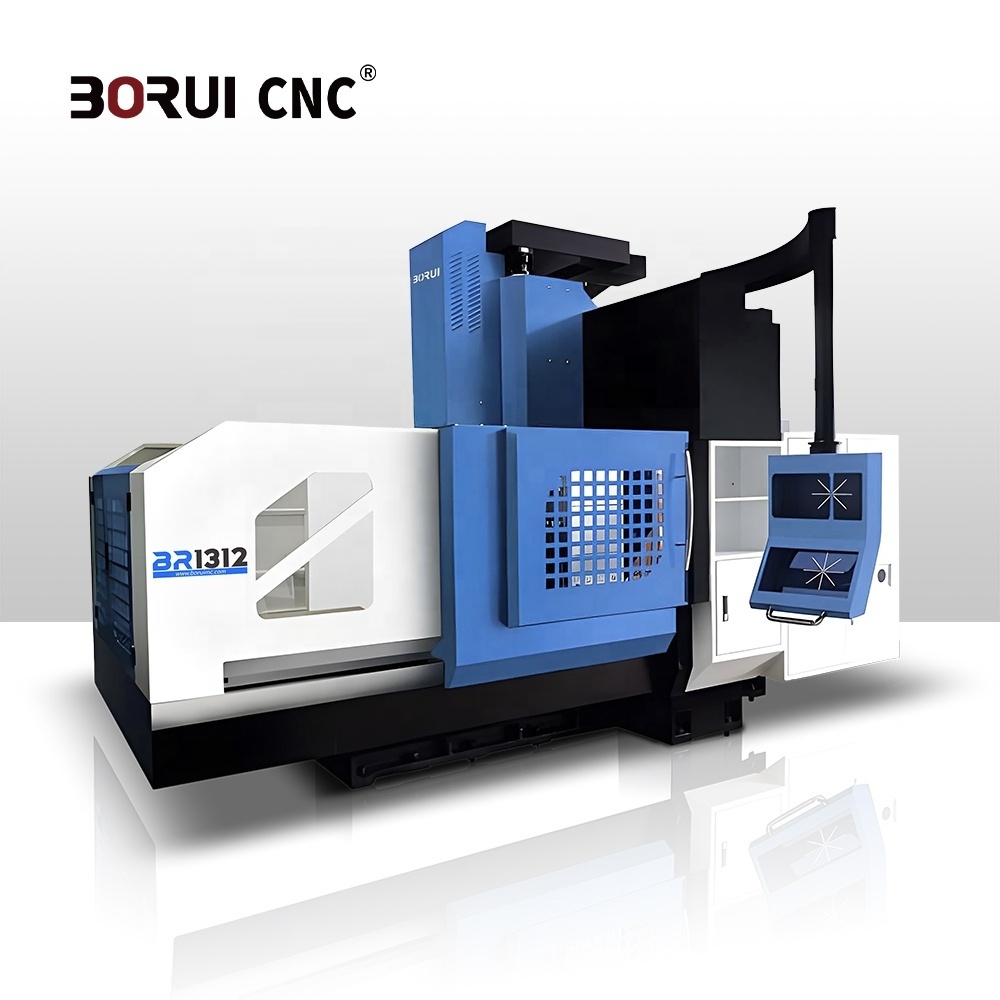

BR1312 CNC
Gantry
Vertical Machining Center
Product Description
Product main technical parameters:
|
Specifications
|
BR-1312
|
|
||
|
Control System
|
|
|
||
|
Software ：AICC2/R660/nano smooth/arc inflection point/mirror processing
|
FANUC 0I MF PLUS
|
|
||
|
Monitor ：Chinese and English display dual screen
|
10.4″color screen/10″color screen
|
|
||
|
CF card interface、handheld portable operating system
|
|
|
||
|
Working travel
|
|
|
||
|
x-axis
|
1300
|
mm
|
||
|
y-axis
|
1250
|
mm
|
||
|
z-axis
|
600
|
mm
|
||
|
Spindle nose to table
|
150~750
|
mm
|
||
|
Worktable
|
|
|
||
|
Table size
|
1400X1050
|
mm
|
||
|
Max. loading capacity
|
2
|
T
|
||
|
Size of T-slot
|
22x140x7
|
mm
|
||
|
Spindle
|
|
|
||
|
Spindle speed
|
8000rpm
|
rpm
|
||
|
Spindle taper
|
BT40-160
|
|
||
|
Spindle motor
|
15/18.5
|
KW
|
||
|
Spindle torque
|
236
|
N.m
|
||
|
Slide way
|
|
|
||
|
x-axis 2 guide
|
45x2 roller P grade
|
mm
|
||
|
y-axis 2 guide
|
45x2 roller P grade
|
mm
|
||
|
z-axis T-shaped ram
|
45*2+35*3
|
mm
|
||
|
Driving screw
|
|
|
||
|
Ball screw accuracy
|
C3 grade
|
|
||
|
Ball screw diameter x.y.z
|
50/40/40
|
mm
|
||
|
Three-axis lead
|
10/12
|
mm
|
||
|
Motor connection
|
Direct
|
|
||
|
Number of bearings at both ends
|
6/6/5
|
Pcs
|
||
|
Three-axis motor
|
|
|
||
|
x zaxis motor
|
Bis30/2000
|
N.m
|
||
|
y zaxis motor
|
Bis30/2000
|
N.m
|
||
|
z zaxis motor (nitrogen balance)
|
2000 (Brake )
|
N.m
|
||
|
Feed rate
|
|
|
||
|
x axis rapid feed rate
|
15000
|
mm/min
|
||
|
Y axis rapid feed rate
|
15000
|
mm/min
|
||
|
Z axis rapid feed rate
|
12000
|
mm/min
|
||
|
Three-axis cutting feed rate
|
0-10000
|
mm/min
|
||
|
Tool (Optional)
|
|
|
||
|
Max. tool length
|
300
|
mm
|
||
|
Max. tool dia
|
Ø200
|
mm
|
||
|
Max. tool weight
|
15
|
kg
|
||
|
Tool specification
|
BT50
|
|
||
|
Tool change time
|
4
|
second
|
||
|
Factory precision
|
|
|
||
|
Positioning
|
0.010／1000
|
mm
|
||
|
Repeat positioning
|
0.006／1000
|
mm
|
||
|
Least input increment
|
0.001
|
mm
|
||
|
Other
|
|
|
||
|
Power Capacity
|
45
|
KVA
|
||
|
Net weight
|
9.5
|
t
|
||
|
Packing dimensions(L x W x H)
|
4000x2800x3000
|
mm
|
||
