Quick Details
-
Item:
-
automatic winding of wire machine
-
Production capacity:
-
20 to 40 seconds / cycle
-
Winding Shaft:
-
2 axis / 4-axis
-
Driving pressure:
-
4.5 ~ 6.5kgf/cm2
-
Operating voltage:
-
110V ~ 250V
-
Feeding:
-
manul feeding
-
Dimensions:
-
700 (L) X900 (W) X1500 (H) mm
-
Weight:
-
400kg
-
Product name:
-
automatic winding of wire machine
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
yc
-
Weight (KG):
-
1800
-
Item:
-
automatic winding of wire machine
-
Production capacity:
-
20 to 40 seconds / cycle
-
Winding Shaft:
-
2 axis / 4-axis
-
Driving pressure:
-
4.5 ~ 6.5kgf/cm2
-
Operating voltage:
-
110V ~ 250V
-
Feeding:
-
manul feeding
-
Dimensions:
-
700 (L) X900 (W) X1500 (H) mm
-
Weight:
-
400kg
-
Product name:
-
automatic winding of wire machine

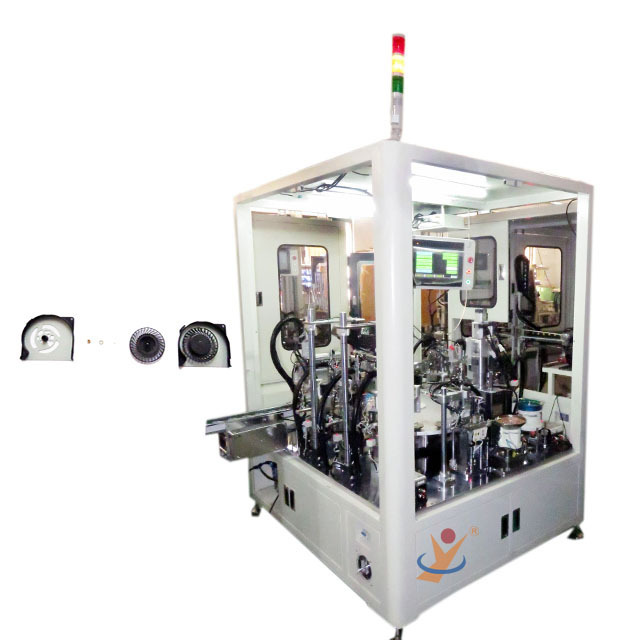

Cooling Fan Winding Machine Motor Stator Wire Winding Machine
Function:
PLC control system, servo motor drive, automatic complete coil winding, sub-line.
Application:
Mainly used in cooling fan, fan motor, transformer coil winding.
Technical parameters:
Production capacity: frame size, and the line of sight of a coil, the winding number, 20 to 40 seconds / cycle
Winding Shaft: 2 axis / 4-axis
Driving pressure: 4.5 ~ 6.5kgf/cm2
Operating voltage: 110V ~ 250V
Feeding: manul feeding
Dimensions: 700 (L) X900 (W) X1500 (H) mm
Weight: about 400kg
Surface treatment:
all stell parts are chrome-plating,
all aluminium parts are anodized. The main standard parts in our machine were imported famous brand, guarantee accurate operation.
