Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Xinnuo
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4500*500*1300mm
-
Weight:
-
3000 kg
-
Feeding width:
-
500mm or as customer need
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
333 type metal siding forming machine of standing seam roof
-
Thickness of the plate:
-
0.3-0.8mm
-
Productivity:
-
10-20 m/min
-
Roller steps:
-
12 rows
-
Roller material:
-
45# steel
-
Diameter of active shaft:
-
70 mm
-
main forming machine:
-
18mm steel plate
-
Main forming machine body:
-
300mm H steel
-
Power:
-
3KW
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Colored Steel
-
Production Capacity:
-
10-18m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Xinnuo
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4500*500*1300mm
-
Weight:
-
3000 kg
-
Feeding width:
-
500mm or as customer need
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
333 type metal siding forming machine of standing seam roof
-
Thickness of the plate:
-
0.3-0.8mm
-
Productivity:
-
10-20 m/min
-
Roller steps:
-
12 rows
-
Roller material:
-
45# steel
-
Diameter of active shaft:
-
70 mm
-
main forming machine:
-
18mm steel plate
-
Main forming machine body:
-
300mm H steel
-
Power:
-
3KW
Product Description
Specification
|
machine name
|

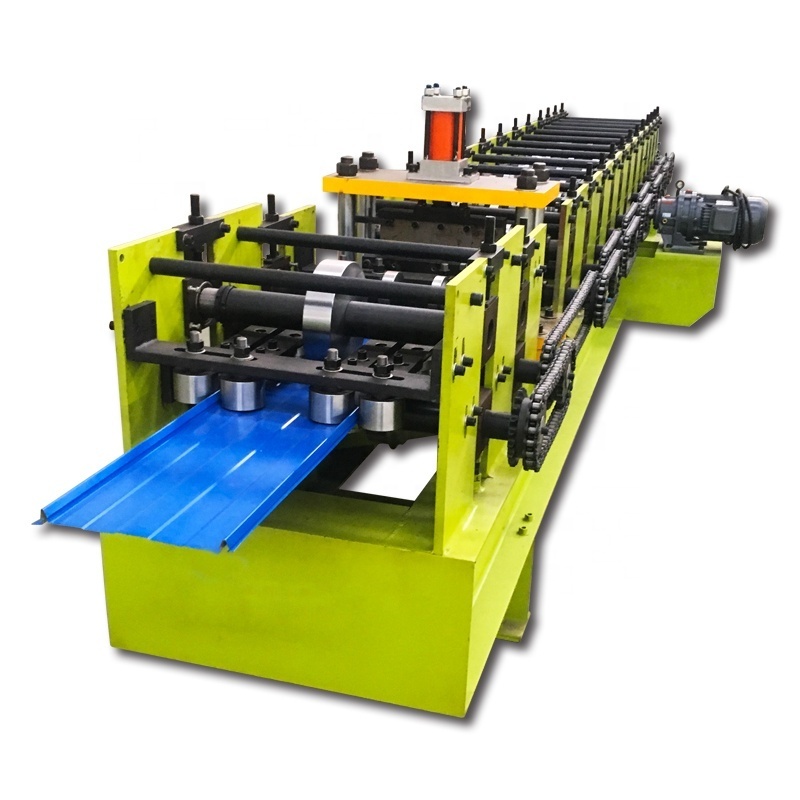

333 type metal siding forming machine of standing seam roof rolling mill
|
|
Suitable to process
|
Color steel plate, galvanized sheet,aluminum coils and etc.
|
|
Roller station
|
12 rows
|
|
Thickness of feeding material
|
0.3-0.8mm
|
|
Productivity
|
10-20m/min
|
|
Rollers' material
|
45# steel with chrome treatment on surface
|
|
Diameter of shaft
|
70mm
|
|
Weight
|
About 3.0 T
|
|
Size
|
7.5*1.45*1.5m
|
|
Voltage
|
380V 50Hz 3Phase
|
|
Main motor power
|
4 kw
|
|
Hydraulic cutting power
|
4kw
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
333 type metal siding forming machine of standing seam roof rolling mill
