Quick Details
-
Brand Name:
-
Keeplink
-
Model Number:
-
Keeplink-Customize
-
Place of Origin:
-
Guangdong, China
-
Device Type:
-
Managed industrial ethernet switch
-
Poe protocal:
-
802.3af,802.3at
-
Operating temperature:
-
-40℃~+85℃
-
MDX/MIDX:
-
support
-
Jumbo Frame:
-
support 2048bytes
-
watchdog:
-
support
-
Keywords:
-
industrial ethernet switch
-
Installation Method:
-
din rail mounted
-
Certification:
-
CE,ROHS,FCC
-
Warranty:
-
5 Years Lifelong Maintenance
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.4G
-
Brand Name:
-
Keeplink
-
Model Number:
-
Keeplink-Customize
-
Place of Origin:
-
Guangdong, China
-
Device Type:
-
Managed industrial ethernet switch
-
Poe protocal:
-
802.3af,802.3at
-
Operating temperature:
-
-40℃~+85℃
-
MDX/MIDX:
-
support
-
Jumbo Frame:
-
support 2048bytes
-
watchdog:
-
support
-
Keywords:
-
industrial ethernet switch
-
Installation Method:
-
din rail mounted
-
Certification:
-
CE,ROHS,FCC
-
Warranty:
-
5 Years Lifelong Maintenance

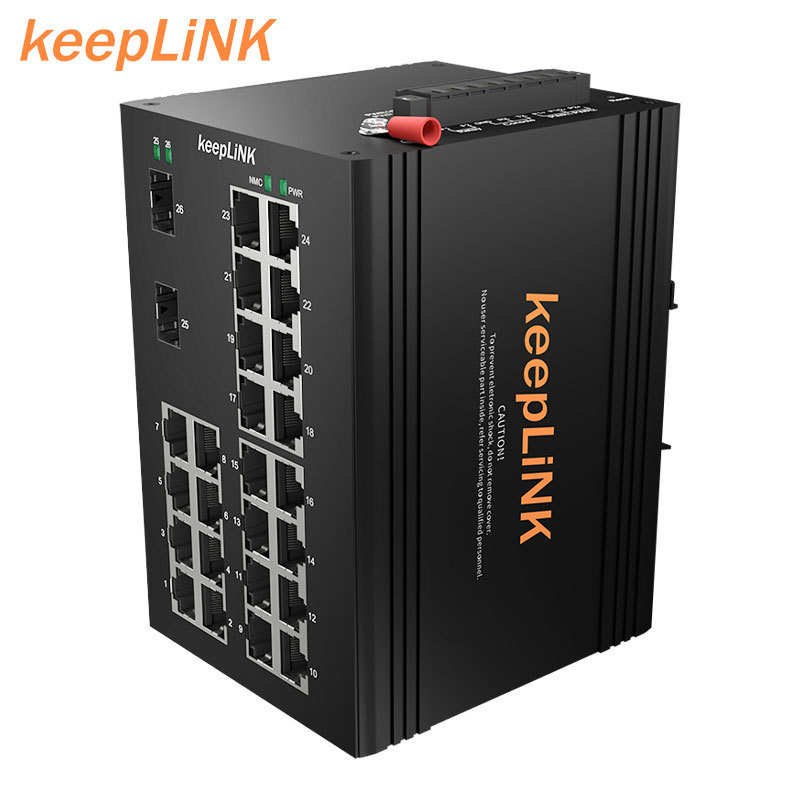

Factory managed poe switch 2 3 4 5 6 8 9 10 12 14 16 18 20 24 26 Ports din rail 10g manageable ethernet switch lifetime warranty
Leading
manufacturer of
industrial ethernet switches...
Smart POE IOT box,
Fusion splicer,PoE splitter,Fiber optical transceiver,
Fiber patch cable,
Media Converter
...
WE ARE AIM
TO BE YOUR BEST INDUSTRIAL NETWORKS SOLUTION PROVIDER
IN CHINA !
Product Description
Industrial 4kv surge protection
MTBF: 100,000 hours,
8KV-15KV
Anti-static,
CCC/CE/FCC/RoHS.
Din-Rail Design.
Durable Metal Body,
Fanless quiet,
IP40 protection level,
Din-Rail design to save room.
Widely Use.
-40
℃ ~ +85℃ widely use,
Dual power protect,
Input voltage:
DC 12-48V without POE,DC 12-58V with POE.
Keeplink Industrial Ethernet Switch.
Why buy our devices ?
1,
8KV-15KV Anti-static
lightning protection makes it safe,
2,
Dual power protect data loss avoid troubles,
3,
Fanless heat dissipation circuit design make its quiet,
4, -
40
℃
~ +85℃ wide range of working environment temperature
(
Excellent high/low temperature resistance),
5,
The industrial-grade quality enhances the reliability and security of industrial networks,
6,
CCC/CE/FCC/RoHS Certificate.
7, Two years warranty lifetime technology maintain.
Meet the deployment requirements in
rail transit, safe city, intelligent transportation,
outdoor surveillance and other harsh environments..
.
Single Fiber.
Optional Customize Specification:
Combo Ports (Fiber+RJ45)
Single mode/multi-mode,
POE/No POE,
Managed
/
Unmanaged
Dual Fiber.
Optional Customize Specification:
Combo Ports (Fiber+RJ45)
Single mode/multi-mode,
POE/No POE,
Combo Ports (Fiber+RJ45)
Single mode/multi-mode,
POE/No POE,
Managed/Unmanaged
SFP SOCKET.
Optional Customize Specification:
Combo Ports (Fiber+RJ45)
Single mode/multi-mode,
POE/No POE,
Combo Ports (Fiber+RJ45)
Single mode/multi-mode,
POE/No POE,
Managed/Unmanaged
Managed DIN-RAIL Industrial Ethernet Switches
|
|
|
Models
|
Standard Specifications
|
|
KP-9000-73-1GX1GT-V
|
1*1000M Fiber, 1*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-1GX2GT-V
|
1*1000M Fiber, 2*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-1GX4TX-V
|
1*1000M Fiber, 4*10/100M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-1GX4GT-V
|
1*1000M Fiber, 4*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-1GH4GT-V
|
1*2.5G Fiber, 4*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-1GH4TX-V
|
1*2.5G Fiber, 4*10/100M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-1GX8TX-V
|
1*1000M Fiber, 8*10/100M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-1GX8GT-V
|
1*1000M Fiber, 8*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-1GH8GT-V
|
1*2.5G Fiber, 8*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-1GH8TX-V
|
1*2.5G Fiber, 8*10/100M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-2GX4TX-V
|
2*1000M Fiber, 4*10/100M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-2GX4GT-V
|
2*1000M Fiber, 4*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-2GH4GT-V
|
2*2.5G Fiber, 4*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-2GH4TX-V
|
2*2.5G Fiber, 4*10/100M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-8GT-V
|
8*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-8TX-V
|
8*10/100M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-2GX8TX-V
|
2*1000M Fiber, 8*10/100M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-2GX8GT-V
|
2*1000M Fiber, 8*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-2GH8TX-V
|
2*2.5G Fiber, 8*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-2GH8GT-V
|
2*2.5G Fiber, 8*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-2XG8GT-V
|
2*10G Fiber, 8*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-4GX8TX-V
|
4*1000M Fiber, 8*10/100M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-4GX8GT-V
|
4*1000M Fiber, 8*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-4GH8GT-V
|
4*2.5G Fiber, 8*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-4GH8TX-V
|
4*2.5G Fiber, 8*10/100M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-4XG8GT-V
|
4*10G Fiber, 8*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-16TX-V
|
16*10/100M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-16GT-V
|
16*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-2GX16TX-V
|
2*1000M Fiber, 16*10/100M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-2GX16GT-V
|
2*1000M Fiber, 16*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-2XG16GT-V
|
2*10G Fiber, 16*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-4GX16TX-V
|
4*1000M Fiber, 16*10/100M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-4GX16GT-V
|
4*1000M Fiber, 16*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-4XG16GT-V
|
4*10G Fiber, 16*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-2GX24TX-V
|
2*1000M Fiber, 24*10/100M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-2GX24GT-V
|
2*1000M Fiber, 24*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-2XG24GT-V
|
2*10G Fiber, 24*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-4GX24TX-V
|
4*1000M Fiber, 24*10/100M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-4GX24GT-V
|
4*1000M Fiber, 24*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-4XG24GT-V
|
4*10G Fiber, 24*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-8GX8GT-V
|
8*1000M Fiber, 8*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-4GX4FX8GT-V
|
4*1000M Fiber, 4*100M Fiber,8*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-8GX16GT-V
|
8*1000M Fiber, 16*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-4GX4FX16GT-V
|
4*1000M Fiber, 4*100M Fiber,16*10/100/1000M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
|
KP-9000-75-4GX4FX16TX-V
|
4*1000M Fiber, 4*100M Fiber,16*10/100M Electric, SFP Socket,DIN-RAIL,DC12~58V, RING NETWORK+WEB MANAGE+SNMP+VLAN
|
Unmanaged Optical Fiber Port + RJ45 Port Industrial Ethernet Switches
|
|
|
|
|
||||
Model
|
Standard Specifications
|
|
|
|
||||
KP-9000-45-1FX2TX
|
1*100M SFP SOCKET, 2*10/100M RJ45, IP40 Industrial switch
|
|
|
...
|
||||
KP-9000-45-1FX4TX
|
1*100M SFP SOCKET, 4*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-45-1GX2GT
|
1*1000M SFP SOCKET, 2*10/100/1000M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-45-1GX4TX
|
1*1000M SFP SOCKET, 4*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-45-1GX4GT
|
1*1000M SFP SOCKET, 4*10/100/1000M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-45-2FX4TX
|
2*100M SFP SOCKET, 4*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-45-2GX2TX
|
2*1000M SFP SOCKET, 2*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-45-2GX2GT
|
2*1000M SFP SOCKET, 2*10/100/1000M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-45-2GX4TX
|
2*1000M SFP SOCKET, 4*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-45-2GX4GT
|
2*1000M SFP SOCKET, 4*10/100/1000M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-45-1GX8GT
|
1*1000M SFP SOCKET, 8*10/100/1000M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-45-2GX8GT
|
2*1000M SFP SOCKET, 8*10/100/1000M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-1FX2TX
|
1*100M SFP SOCKET, 2*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-1FX4TX
|
1*100M SFP SOCKET, 4*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-1GX2TX
|
1*1000M SFP SOCKET, 2*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-1GX4TX
|
1*1000M SFP SOCKET, 4*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-1GX2GT
|
1*1000M SFP SOCKET, 2*10/100/1000M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-1GX4GT
|
1*1000M SFP SOCKET, 4*10/100/1000M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-2GX16TX
|
2*1000M SFP SOCKET, 16*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-2GX16GT
|
2*1000M SFP SOCKET, 16*10/100/1000M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-4GX16TX
|
4*1000M SFP SOCKET, 16*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-4GX16GT
|
4*1000M SFP SOCKET, 16*10/100/1000M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-2FX2TX
|
2*100M SFP SOCKET, 2*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-2FX4TX
|
2*100M SFP SOCKET, 4*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-2FX6TX
|
2*100M SFP SOCKET, 6*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-1FX8TX
|
1*100M SFP SOCKET, 8*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-2FX8TX
|
2*100M SFP SOCKET, 8*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-2GX8TX
|
2*1000M SFP SOCKET, 8*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-2GX8GT
|
2*1000M SFP SOCKET, 8*10/100/1000M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-2GX2GT
|
2*1000M SFP SOCKET, 2*10/100/1000M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-2GX4TX
|
2*1000M SFP SOCKET, 4*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-2GX4GT
|
2*1000M SFP SOCKET, 4*10/100/1000M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-1GX8TX
|
1*1000M SFP SOCKET, 8*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-1GX8GT
|
1*1000M SFP SOCKET, 8*10/100/1000M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-4FX8TX
|
4*100M SFP SOCKET, 8*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-4GX8TX
|
4*1000M SFP SOCKET, 8*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-4GX8GT
|
4*1000M SFP SOCKET, 8*10/100/1000M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-2GX2FX8GT
|
2*1000M SFP, 2*100M SFP, 8*10/100/1000M RJ45 Industrial switch
|
|
|
|
||||
KP-9000-65-2GX2FX8TX
|
2*1000M SFP, 2*100M SFP, 8*10/100M RJ45 Industrial switch
|
|
|
|
||||
KP-9000-65-2XG4GX8GT
|
2*10000M SFP, 4*1000M SFP, 8*10/100/1000M RJ45 Industrial switch
|
|
|
|
||||
KP-9000-65-8GX2GT
|
8*1000M SFP SOCKET, 2*10/100/1000M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-8GX8GT
|
8*1000M SFP SOCKET, 8*10/100/1000M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-8GX16TX
|
8*1000M SFP SOCKET, 16*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-8GX16GT
|
8*1000M SFP SOCKET, 16*10/100/1000M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-4GX24TX
|
4*1000M SFP SOCKET, 24*10/100M RJ45, IP40 Industrial switch
|
|
|
|
||||
KP-9000-65-4GX24GT
|
4*1000M SFP SOCKET, 24*10/100/1000M RJ45, IP40 Industrial switch
|
|
|
|
Unmanaged RJ45 Port Industrial Ethernet Switches
|
|
|
|
|
||||
Models
|
Ports Number
|
Ethernet Switch Speed
|
POE Function
|
Product Size
|
||||
KP-9000-45-5TX
|
5 ri45 ports
|
10/100mbps
|
/
|
31mm*118mm*91mm
|
||||
KP-9000-45-5TP
|
5 ri45 ports
|
10/100mbps
|
Yes
|
31mm*118mm*91mm
|
||||
KP-9000-45-5GT
|
5 ri45 ports
|
10/100/1000 mbps
|
/
|
31mm*118mm*91mm
|
||||
KP-9000-45-5GP
|
5 ri45 ports
|
10/100/1000 mbps
|
Yes
|
31mm*118mm*91mm
|
||||
KP-9000-65-5TX
|
5 ri45 ports
|
10/100mbps
|
/
|
48mm*143mm*104mm
|
||||
KP-9000-65-5TP
|
5 ri45 ports
|
10/100mbps
|
Yes
|
48mm*143mm*104mm
|
||||
KP-9000-65-5GT
|
5 ri45 ports
|
10/100/1000 mbps
|
/
|
48mm*143mm*104mm
|
||||
KP-9000-65-5GP
|
5 ri45 ports
|
10/100/1000 mbps
|
Yes
|
48mm*143mm*104mm
|
||||
KP-9000-65-8TX
|
8 ri45 ports
|
10/100mbps
|
/
|
48mm*143mm*104mm
|
||||
KP-9000-65-8TP
|
8 ri45 ports
|
10/100mbps
|
Yes
|
48mm*143mm*104mm
|
||||
KP-9000-65-8GT
|
8 ri45 ports
|
10/100/1000 mbps
|
/
|
48mm*143mm*104mm
|
||||
KP-9000-65-8GP
|
8 ri45 ports
|
10/100/1000 mbps
|
Yes
|
48mm*143mm*104mm
|
||||
KP-9000-65-16TX
|
16 ri45 ports
|
10/100mbps
|
/
|
48mm*143mm*104mm
|
||||
KP-9000-65-16TP
|
16 ri45 ports
|
10/100mbps
|
Yes
|
48mm*143mm*104mm
|
||||
KP-9000-65-16GT
|
16 ri45 ports
|
10/100/1000 mbps
|
/
|
48mm*143mm*104mm
|
||||
KP-9000-65-16GP
|
16 ri45 ports
|
10/100/1000 mbps
|
Yes
|
48mm*143mm*104mm
|
||||
These are just a small part,
For more products, contact us...
|
|
|
|
|
||||
|
|
|
|
|
Recommend Products
Hot Searches
