Quick Details
-
Brand Name:
-
OSTAR
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3.2X1.7X2.5M
-
Hollow part volume:
-
2L
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
60 mm
-
Screw Heating Power(kW):
-
4.2 kW
-
Extruder Motor Power(kW):
-
11 kW
-
Mold Platen Size(Width)(mm):
-
300 mm
-
Mold Platen Size(Height)(mm):
-
335 mm
-
Air Pressure(MPa):
-
0.6 MPa
-
Air Comsumption(m³/min):
-
0.4 m³/min
-
Die Head Heating Power(kW):
-
5.2 kW
-
Accumulator Capacity(L):
-
4.5 L
-
Power (kW):
-
5.5
-
Weight (T):
-
5.2
-
High Pressure Valve Brand:
-
AirTac
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
Automatic:
-
Yes
-
Power(W):
-
5.5KW
-
Product name:
-
small automatic plastic blow molding machine for bottles
-
Key words:
-
blow molding machine for bottles
-
Suitable bottle:
-
100-2000ml Bottle
-
energy saving:
-
servo motor system
-
machine power:
-
220V 380V 415V 480V
Quick Details
-
Clamping Force (kN):
-
40
-
Output (kg/h):
-
200 kg/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OSTAR
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3.2X1.7X2.5M
-
Hollow part volume:
-
2L
-
Screw L/D Ratio:
-
25
-
Screw diameter (mm):
-
60 mm
-
Screw Heating Power(kW):
-
4.2 kW
-
Extruder Motor Power(kW):
-
11 kW
-
Mold Platen Size(Width)(mm):
-
300 mm
-
Mold Platen Size(Height)(mm):
-
335 mm
-
Air Pressure(MPa):
-
0.6 MPa
-
Air Comsumption(m³/min):
-
0.4 m³/min
-
Die Head Heating Power(kW):
-
5.2 kW
-
Accumulator Capacity(L):
-
4.5 L
-
Power (kW):
-
5.5
-
Weight (T):
-
5.2
-
High Pressure Valve Brand:
-
AirTac
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
Automatic:
-
Yes
-
Power(W):
-
5.5KW
-
Product name:
-
small automatic plastic blow molding machine for bottles
-
Key words:
-
blow molding machine for bottles
-
Suitable bottle:
-
100-2000ml Bottle
-
energy saving:
-
servo motor system
-
machine power:
-
220V 380V 415V 480V

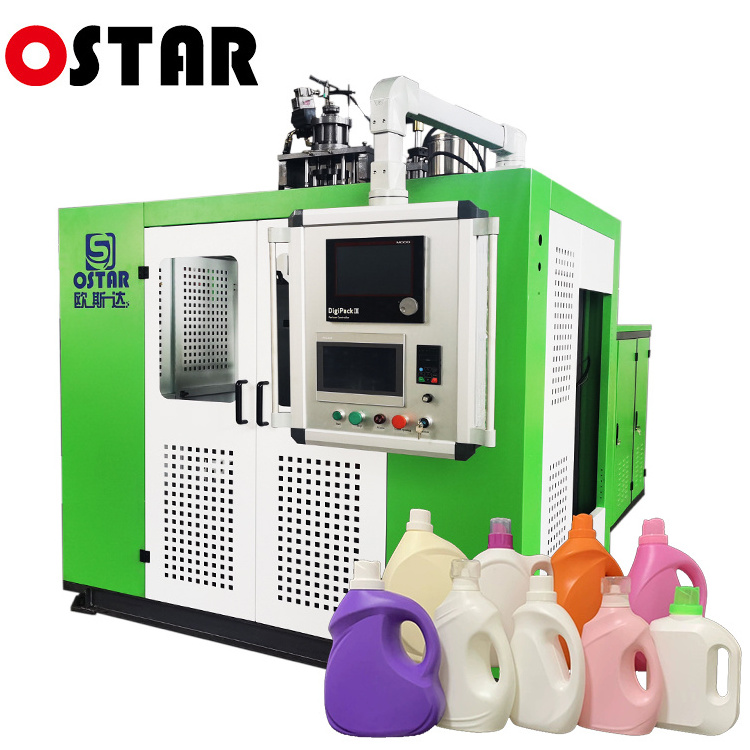

Product Name: hdpe pp plastic laundry liquid shampoo lotion hand washing soap detergent bottle making extrusion blow molding moulding machine
Machine Feature:
1.Control Unit: Japan Mitsubishi PLC programmable controller and Taiwan HITECH touch panel. English parameter process setting, state monitoring and products counting are convenient and intuitionistic. PLC automatic temperature control model.
2.Hydraulic Unit: It adopts international famous Japan YUKEN brand hydraulic valve and seal, proportional control. And has features of high stationarity and reliability, accurate operation, long longevity, quick response and so on.
3.Extrusion Unit: Hard gear surface decelerator; famous HFinverter inverter adopts Italian technology; Screw speed regulation adopts variable-frequency speed regulation control system. It has the features of stable rotate speed, powerful power, energy-saving and so on. Mixing screw has wide applicability to raw materials and the plasticization quality is even better. Energy-saving machine barrel and A-alloy heaters are adopted for heating
4.Die Head Unit: With single cylinder material-center-in accumulator head, is smooth and dependable. This die head adopts German technology and is made by special imported steel.
5.Clamping Unit: Adopts fixed mould open-closing system,fast and balanced.
6..Blow Fitting Unit: Down blowing fitting is equipped.
7. Lifter Unit: Four turbine reducer liter, lifting balance, quick, stable.
8. Electrical Components: All of the electrical components are made in Japan and Taiwan.
