Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Naipu
-
Model Number:
-
100 rv-sp
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
100 HP
-
Outlet Size:
-
4 inches
-
Power:
-
75 kw
-
Usage:
-
Water
-
Material:
-
NR55, S42, S31...
-
Drive style:
-
BD, DC
-
Shaft length:
-
0.9-1.8 m
-
Impeller:
-
Open
-
Bearing:
-
ZWZ, SKF, Timken...
-
Type:
-
Vertical Sump Pump
-
Feature:
-
Corrosion Resistant
-
Certification:
-
ce
Quick Details
-
Application:
-
Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
Low Pressure
-
Voltage:
-
380v, 415v, 440v, 480v...
-
Warranty:
-
1 year
-
Brand Name:
-
Naipu
-
Model Number:
-
100 rv-sp
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
100 HP
-
Outlet Size:
-
4 inches
-
Power:
-
75 kw
-
Usage:
-
Water
-
Material:
-
NR55, S42, S31...
-
Drive style:
-
BD, DC
-
Shaft length:
-
0.9-1.8 m
-
Impeller:
-
Open
-
Bearing:
-
ZWZ, SKF, Timken...
-
Type:
-
Vertical Sump Pump
-
Feature:
-
Corrosion Resistant
-
Certification:
-
ce

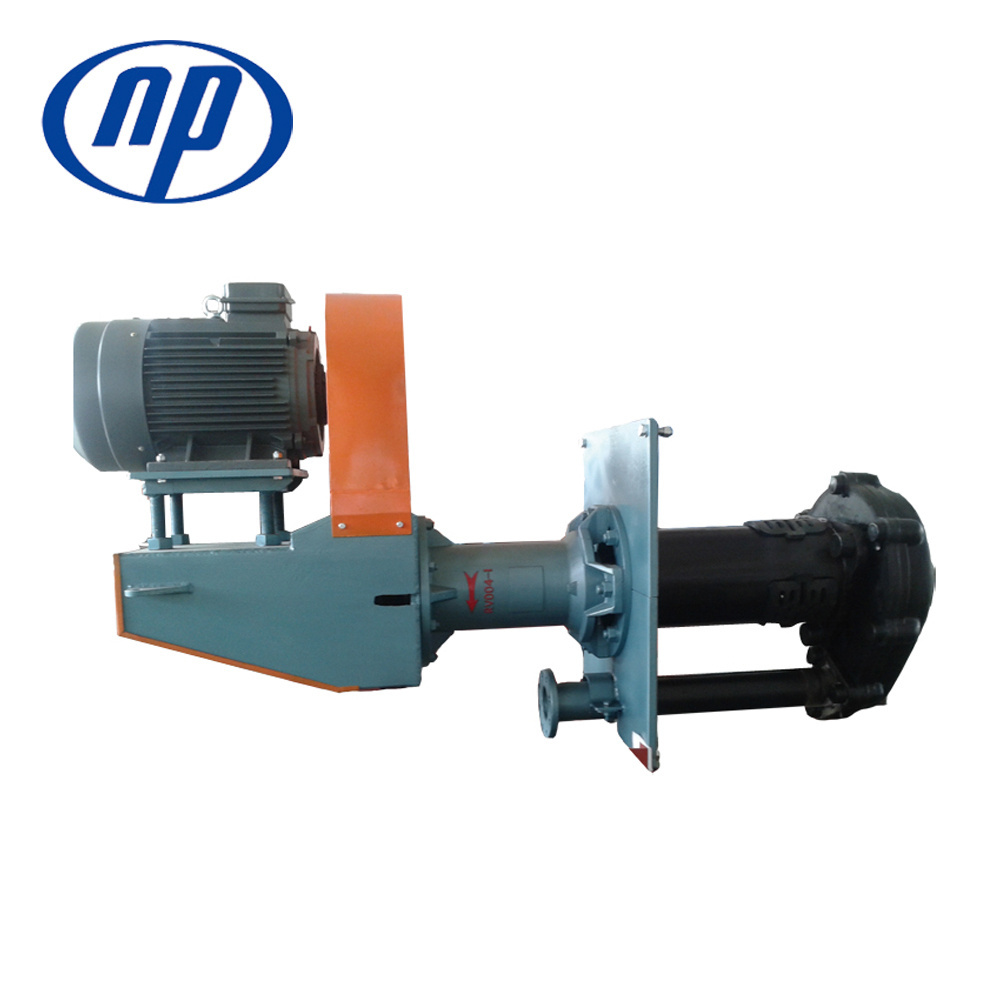

Naipu 100 rv-sp vertical slurry sump pump
NP-SPR series Vertical centrifugal slurry pump
100RV-SP sump pump mainly used in a variety of sump conditions, It can also be readily applied on floating dewatering or other floating pump platforms. As a true cantilevered vertical slurry pump, 100RV-SP vertical spindle pump does not have submerged bearings or seals, thus, eliminating the primary failure mechanism for similarly fielded pump lines.
SPR Rubber Shaft Lined Floor Drainage Vertical Sump Pump Specifications
Size: 100mm
Capacity: 40-289m3/h
Head: 5-36m
Speed: 500-1200rpm
Eff.: 62%
Power: Max.75kw
Handling solids: 32mm
Materials: High chrome alloy, Rubber, Polyurethane, Ceramic etc.
Vertical Spindle Pumps are available in a wide range of popular sizes to suit most pumping applications:
• Minerals processing
• Coal preparation
• Chemical processing
• Effluent handling
• Abrasive and/or corrosive slurries
• Large particle sizes
• High density slurries
• Sand and gravel
and almost every other tank, pit or hole-in-theground slurry handling situation.
Vertical pump construction drawing
Vertical Pump Main part number at the drawing
|
1. Discharge Pipe
2. Column 3. Strainer 4. Back Liner |
5. Impeller
6. Pump Casing 7. Lower Pipe |
SP Slurry Pump Materials of construction
| IMPELLERS | CASING | COLUMN | DISCHARGE | SEALS | |
| Standard | High Chrome Alloy Rubber | High Chrome Alloy Rubber |
Mild Steel
Mild Steel Rubber Lined |
Mild Steel
Mild Steel Rubber Lined |
Natural Rubber Rubber |
| Options |
Butyl
EPDM Hypalon Polyurethane 316 SS W 151 |
Neoprene
Butyl EPDM Hypalon Nitrile 316 SS W 151 |
Neoprene
Butyl Nitrile 316 SS |
Neoprene
Butyl Nitrile 316 SS |
Nordel
Neoprene Viton Hypalon Butyl EPDM |
Vertical slurry pump selection chart
4 inches Vertial Slurry Pump performance parameters
| Naipu | Replacements |
Power P (kw) |
Capacity Q (m3/h) |
Head H (m) |
Speed n (r/min) |
Eff. η (%) |
Impeller dia. (mm) |
Max.particles (mm) |
Weight (kg) |
| 100ZJLR-RV | 100RV-(SPR) | 5.5-75 | 40-290 | 5-36 | 500-1200 | 62 | 370 | 32 | 920 |
We can produce many kinds of centrifugal slurry pump for mining, sand and other solids slurry transporting.
CE, SGS, ISO9001 Certification
