Quick Details
-
Brand Name:
-
Lewee
-
Model Number:
-
LW-MA-15
-
Work Time (h):
-
24 Hours
-
Max PV Power:
-
1600W
-
Max PV Voltage:
-
150V
-
Certificate:
-
CE/Fcc/RoHS/ ISO9001
-
Warranty:
-
5 Years
-
Product name:
-
Solar Charger Controller
-
Battery type:
-
USE/FLD/GEL/LI/SLD
-
System voltage:
-
12V/24V/36V/48V
-
Maximum PV Open-circuit Voltage:
-
150V
-
MPPT efficiency:
-
>99%
-
Rated load Current:
-
30A-40A
-
Rated Charging Current:
-
30A/40A/60A
-
Operating ambient temperature:
-
-35℃~65℃
-
Protection Grades:
-
IP32
-
Cooling mode:
-
Natural Cooling
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Solar System Controller
-
Place of Origin:
-
Hunan
-
Brand Name:
-
Lewee
-
Model Number:
-
LW-MA-15
-
Work Time (h):
-
24 Hours
-
Max PV Power:
-
1600W
-
Max PV Voltage:
-
150V
-
Certificate:
-
CE/Fcc/RoHS/ ISO9001
-
Warranty:
-
5 Years
-
Product name:
-
Solar Charger Controller
-
Battery type:
-
USE/FLD/GEL/LI/SLD
-
System voltage:
-
12V/24V/36V/48V
-
Maximum PV Open-circuit Voltage:
-
150V
-
MPPT efficiency:
-
>99%
-
Rated load Current:
-
30A-40A
-
Rated Charging Current:
-
30A/40A/60A
-
Operating ambient temperature:
-
-35℃~65℃
-
Protection Grades:
-
IP32
-
Cooling mode:
-
Natural Cooling

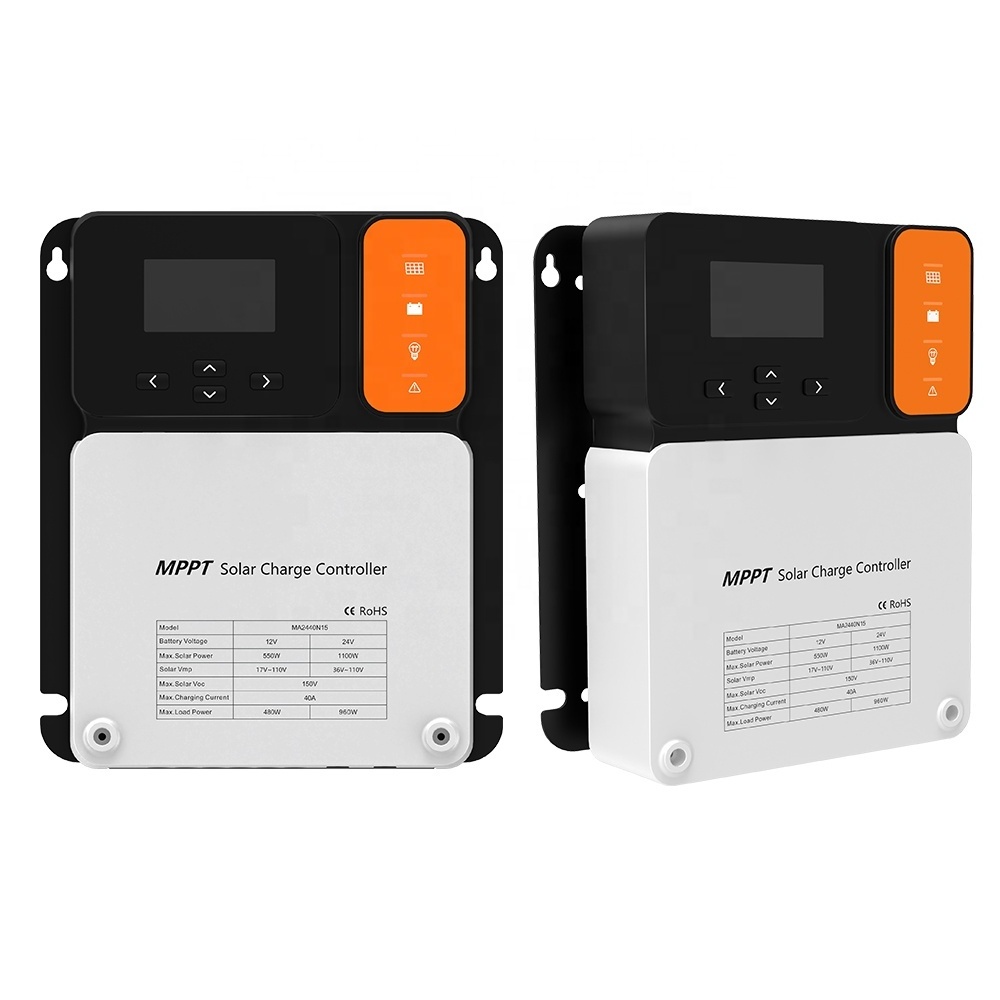

Product Overview
Specification
|
Product Type
|
MA2430N15
|
MA2440N15
|
MA2460N15
|
MA4830N15
|
|||
|
Static power consumption
|
≤30mA
|
≤40mA
|
≤50mA
|
≤50mA
|
|||
|
Battery Type
|
USE/FLD/GEL/LI/SLD(Default)
|
|
|
|
|||
|
System Voltage
|
12v/24v
|
|
|
12v/24v/36v/48v
|
|||
|
Battery's operating voltage range
|
8v-32v
|
|
|
8v-64v
|
|||
|
Rated Changing Current
|
30A
|
40A
|
60A
|
30A
|
|||
|
Maximum PV Input Current
|
27A
|
35A
|
53A
|
27A
|
|||
|
Maximum PV Open-circuit Voltage
|
150V
|
|
|
|
|||
|
MPPT Efficiency
|
＞99%
|
|
|
|
|||
|
Rated load current
|
30A
|
40A
|
40A
|
30A
|
|||
|
Operating ambient temperature range
|
~35℃~65℃
|
|
|
|
|||
|
Protection Grades
|
IP32
|
|
|
|
|||
|
Cooling mode
|
Natural Cooling
|
|
|
|
|||
|
Size
|
260*216*83.2mm
|
|
260*216*98.5mm
|
|
|||
|
Weight
|
2.3kg
|
|
3.4kg
|
3.6kg
|
|||
